Vertex SR Series User Manual

- 14 -
CHAPTER 2: Basics
Operation
With your Vertex Illumina is powered up, you will now be able to program your lighting spectrum and
schedule.
Button Controls
4. ESC: Cancels selection to previous screen within main menus. Scrolls to the previous parameter/op-
tion within submenus. Press once to select previous, hold to exit submenu without saving settings.
System Interface
Use the following table to familiarize yourself with the functions of the Illumina interface:

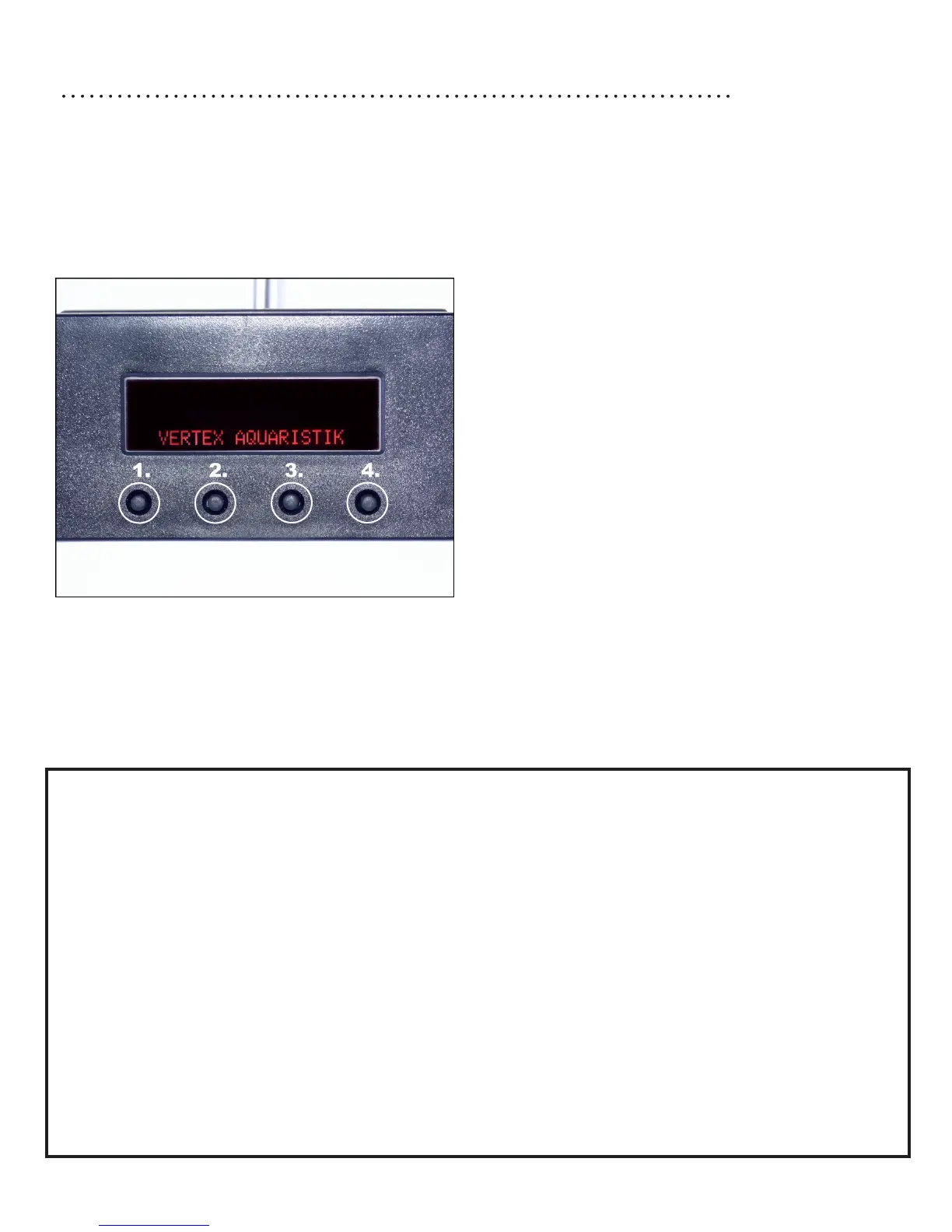

The Vertex Illumina interface consists of a view-
ing screen and four control buttons.
The fuction of each of the buttons is as follows:
1. SELECT / OK:Conrmsselectionwithinmain
menus. Scrolls to next parameter/option within
submenus. Press once to select next, hold exit
submenu and save settings.
2. ▲ / + : Next selection within menus. Param-
eter value up within submenus.
3. ▼ / – : Previous selection within menus. Pa-
rameter value up within submenus.
REF.
1
1-1
1-2
1-3
1-3-1
1-3-2
1-4
1-4-1
1-4-2
1-4-3
1-4-4
1-4-5
1-4-5-1
1-4-5-2
1-4-5-3
FUNCTION
LIGHT MANAGER
OFF
DEMO
DEFAULT
NO MOON
MOON LIGHT
CUSTOM
LIGHT COMPOSER
WHITE
ROYAL BLUE
BLUE
MOON SELECTION
NO MOON
MOON LIGHT
MOON CYCLE
REF.
2
3
3-1
3-1-1
3-1-2
3-1-3
3-1-4
3-1-5
3-2
3-2-1
3-2-2
3-3
3-4
3-4-1
3-4-2
FUNCTION
QUICK MOTION
SETTINGS
LANGUAGE
ENGLISH
DEUTSCH
ITALIANO
FRANCAIS
ESPANOL
TIME FORMAT
24 HOURS
AM/PM
TIME AND DATE
DISPLAY MODE
NORMAL
INVERSE
REF.
3-5
3-5-1
3-5-2
3-5-3
3-6
3-7
3-7-1
3-7-2
4
FUNCTION
FAN
OFF
AUTO
ON
MISC
FUNCTIONS
SPARE MODULES
FACTORY RESET
INFO
