CHAPTER 2: Basics
This section will detail help familiarize you with each of the Vertex Illumina’s aspects and components:
Getting to Know the Features

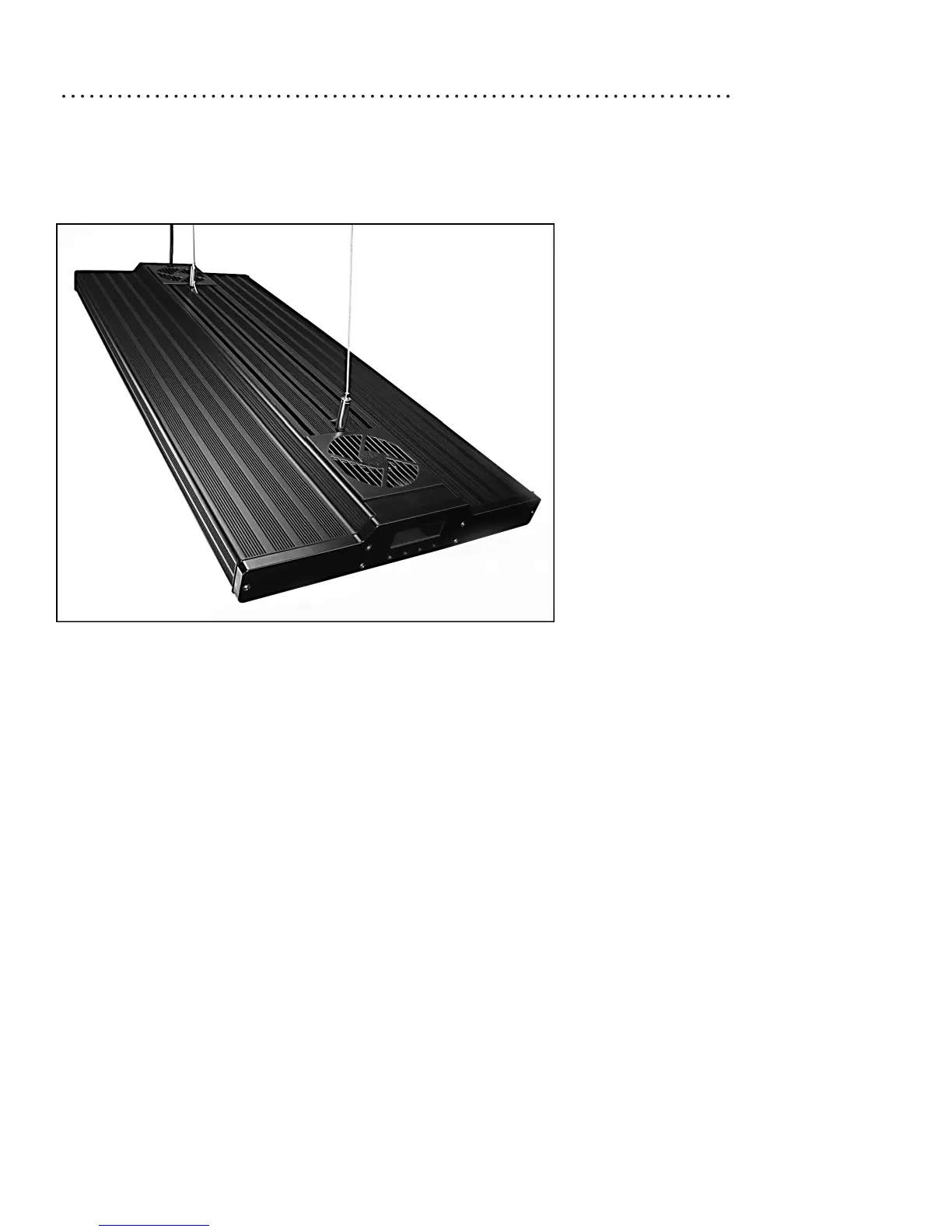

Vertex Illumina Fixture
The body of the Vertex Illumina is
constructed from anodized, extruded
aluminium and has been designed
with the following considerations:
l Thermovap heatsink design with a
high bypass airshaft exchange, central
to an oversized bilateral heat sink.
l SilenX Ixtrema Pro IXP-52-14 fans
produce less than 14dBm noise and
move up to 24 CFM each.
l Onboard, programmable control
panel with built-in wireless network
functionality (w/ V-Link accessory).
l Streamlinedone-cordconstructionforallxturelengthsandmodelsservingtoeffectivelyminimize
clutter,preservingtheaestheticsofthexture.
l Twoadjustablesuspensionbridgesallowformaximumsuspensionexibilityduringinstallationorthe
Alu-Mounting Braket, optional!
l Modular LED pad platform requires no wiring or soldering for any replacements or upgrades.
l Auxiliary slots located between each of the LED pads allow for nearly limitless spectral composi-
tions.
NOTES:
l The Vertex Illumina is meant to be suspended above a display. Though humidity resistant, it is not
waterproof.Besurethatitismountedandprotectedfromwaterspraycomingfromoverowsand/or
splashing and bubbling water.
l DonotattempttomovetheLEDpadswithinthexture.Theyaresetinplacetoallowforexact
placement of auxiliary LED pads and sealed with a thermal paste backside.
l Donotcleanwithharshacidicoralkalinecleaners/solventswhichmaydestroythenish.
l Donotsetthextureontopofanysurfaceswhileitisrunning-youwilldamageboththesurface
and the LED splash shield. These types of damages are not covered by the warranty.
