Vertex SR Series User Manual

- 13 -
CHAPTER 2: Basics

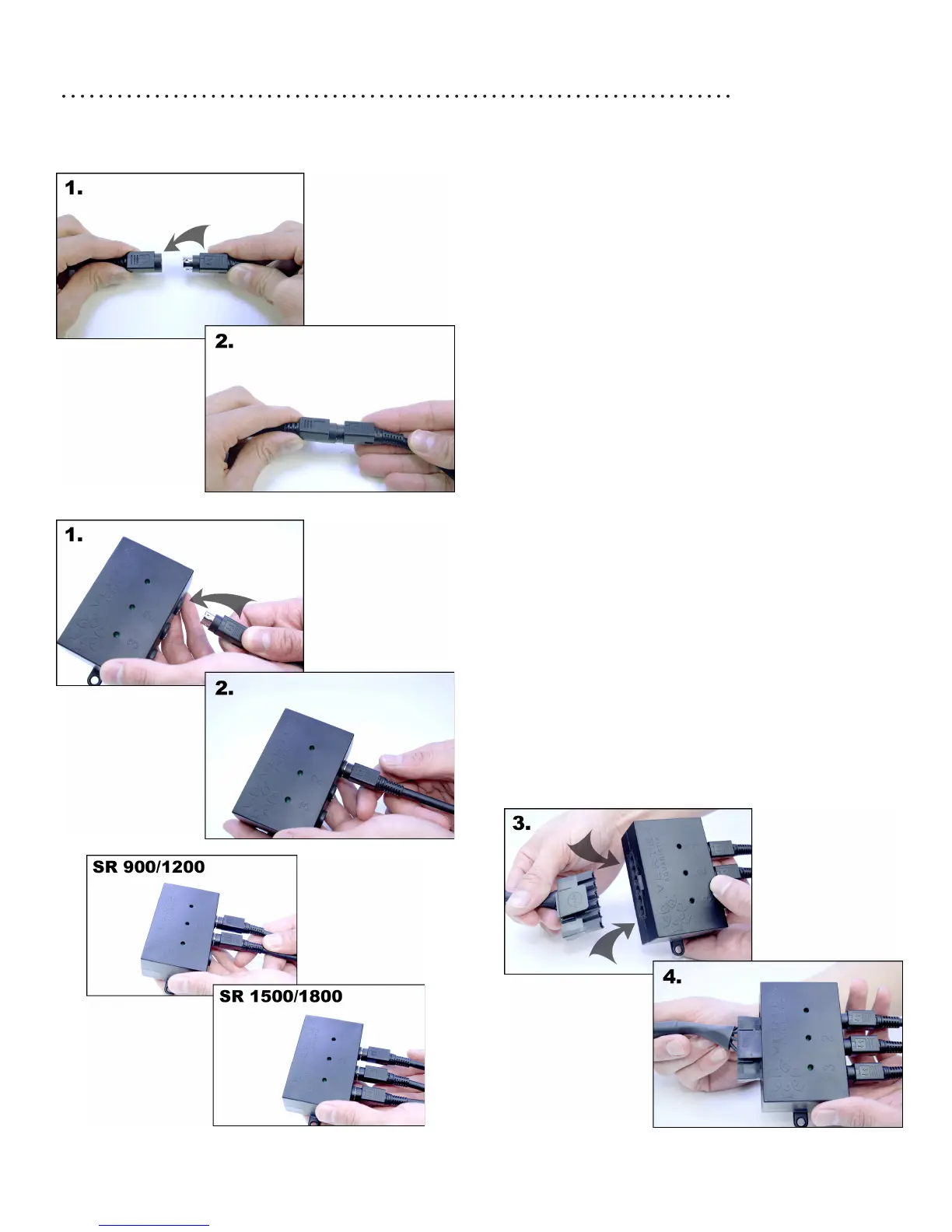

Installing Your Illumina SR
SR 300 & 600
To power up these models, connect the Control
CablefromthexturetotheACAdapter/Driver
connector cable.
Once properly connected, the display module on
your Illumina should light up and begin Initial-
izing. After a few moments, you will be ready to
begin programming your lights.
SR 900 - 1800
Begin by plugging the AC Adapter / Driver con-
nector cables to each of the slots in the Splitter
Box. Plug each connecter in sequentially. See im-
age below for details per model.
ConnecttheControlCableofthexturetothe
splitter box. The Illumina will begin initializing
and, after a few moments, be ready for pro-
gramming.
