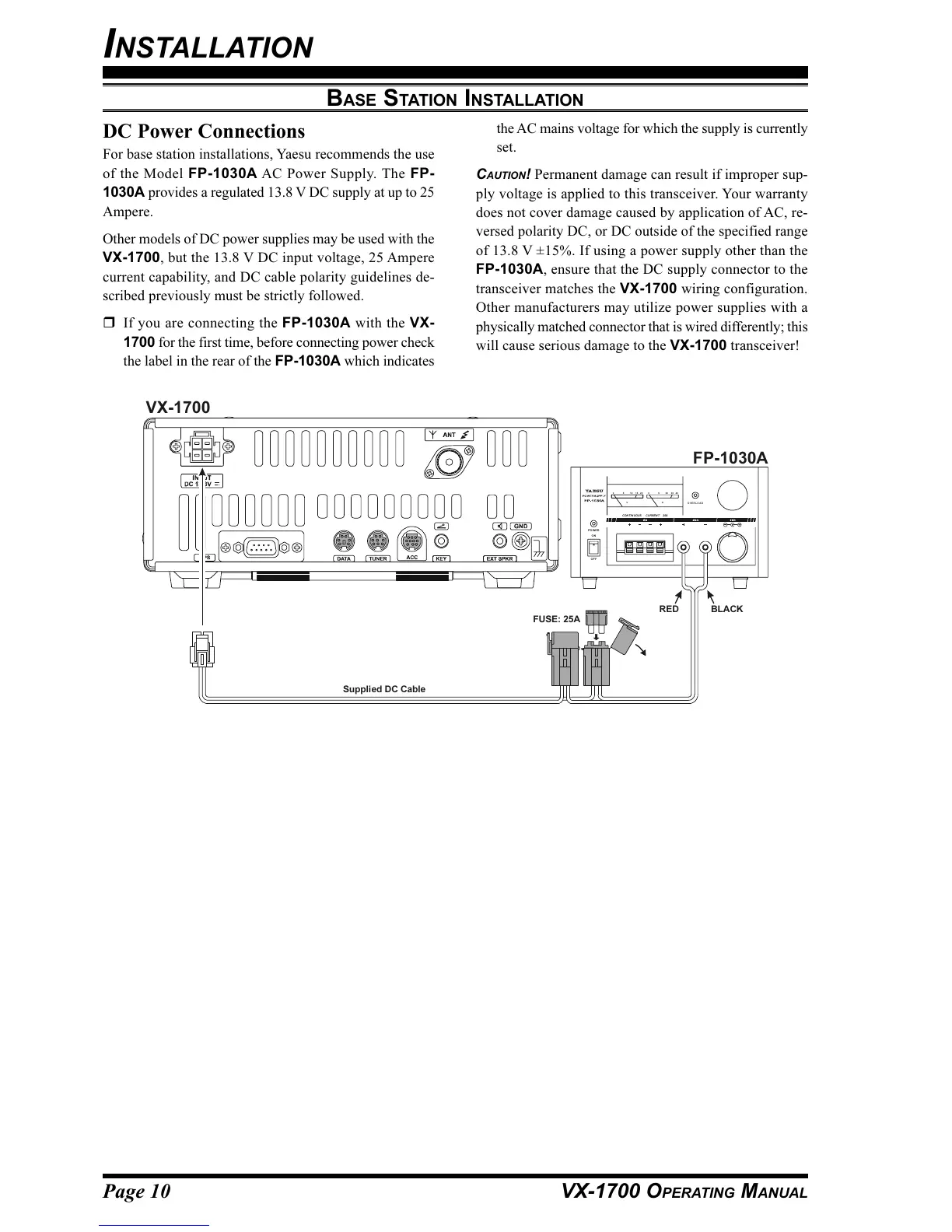

Page 10 VX-1700 OPERATING MANUAL
BASE STATION INSTALLATION
DC Power Connections
For base station installations, Yaesu recommends the use
of the Model FP-1030A AC Power Supply. The FP-
1030A provides a regulated 13.8 V DC supply at up to 25
Ampere.
Other models of DC power supplies may be used with the
VX-1700, but the 13.8 V DC input voltage, 25 Ampere
current capability, and DC cable polarity guidelines de-
scribed previously must be strictly followed.
If you are connecting the FP-1030A with the VX-
1700 for the first time, before connecting power check
the label in the rear of the FP-1030A which indicates
the AC mains voltage for which the supply is currently
set.
CAUTION! Permanent damage can result if improper sup-
ply voltage is applied to this transceiver. Your warranty
does not cover damage caused by application of AC, re-
versed polarity DC, or DC outside of the specified range
of 13.8 V ±15%. If using a power supply other than the
FP-1030A, ensure that the DC supply connector to the
transceiver matches the VX-1700 wiring configuration.
Other manufacturers may utilize power supplies with a
physically matched connector that is wired differently; this
will cause serious damage to the VX-1700 transceiver!
