5

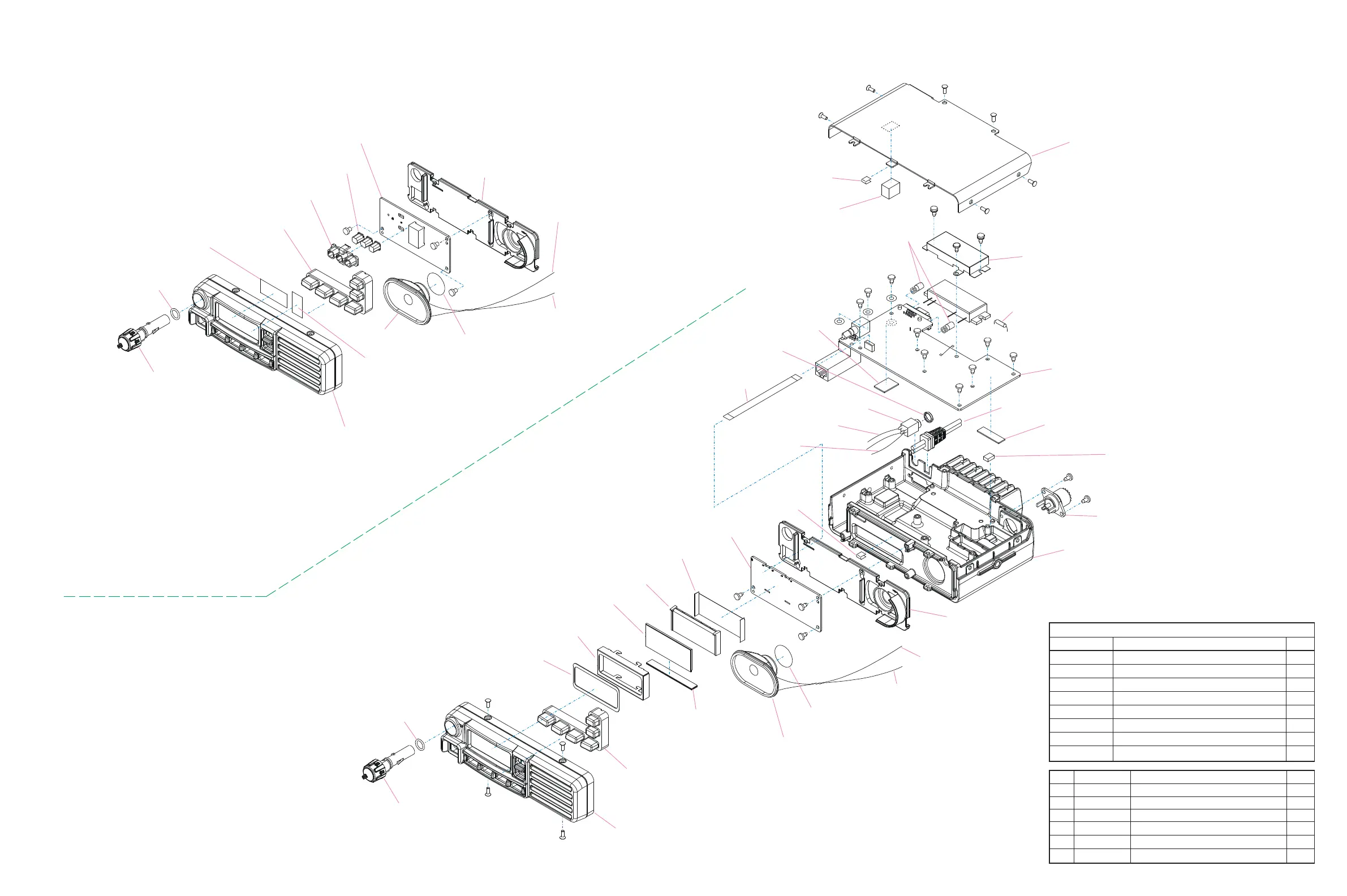

Exploded View & Miscellaneous Parts
VX-2100/-2200
(
VHF
)
Service Manual
SUPPLIED ACCESSORIES
VXSTD P/N DESCRIPTION QTY.
Q0000075 BLADE FUSE ATC 15A (50 W TYPE) 2
Q0000112 BLADE FUSE ATC 10A (25 W TYPE) 2
AAE60X001 MICROPHONE MH-67A8J
(W/ CLIP)
1
T90210151 DC CABLE (50 W TYPE) 1
T90210101 DC CABLE (25 W TYPE) 1
RA079050A MOBILE BRACKET 1
RA079060A KNOB SCREW (for BRACKET) 2
U9900209 HEX HEAD BOLT HSM5X12B 2
VX-2100 FRONT PANEL
VX-2200 FRONT PANEL
Non-designated parts are available only as part of a desig-
nated assembly.
FRONT-A-UNIT
CB3472001
RA0787600
LIGHT GUIDE (x3 pcs)
RA078750A
HOLDER
RA0845300
RUBBER KNOB
T9318283A
WIRE ASSY (RED)
RA0821900
SPONGE RUBBER
M4090226
SPEAKER
RA080360A
RUBBER PACKING
RA079170A
FRONT PANEL ASSY
(w/ WINDOW (8ch))
RA0746700
O RING
RA1433500
VOL KNOB ASSY
T9318284A
WIRE ASSY (BLK)
RA1062100
MYLAR SHEET
RA079160A
FRONT PANEL ASSY
(w/ LIGHT GUIDE, WINDOW)
FRONT-B-UNIT
CB3473001
RA0821900
SPONGE RUBBER
M4090226
SPEAKER
RA080360A
RUBBER PACKING
RA079000F
CHASSIS
RA0790300
SHIELD CASE
RA0790200
TOP CASE
T9207582
WIRE ASSY
T9318285
WIRE ASSY (GRN)
T9318286
WIRE ASSY (WHT)
G6090173
LCD
RA0786300
LCD HOLDER
RA0786900
SPONGE RUBBER
RA078640A
LIGHT GUIDE
RA0786200
INTER CONNECTOR
RA0790900
REFLECTOR SHEET
P1091172
CONNECTOR
T9207044B
WIRE ASSY
RA079070A
PAD (AMP)
RA084810A
PAD (LPF)
RA0800600
SPONGE RUBBER
P1090654A
CONNECTOR
MAIN ASSY
CS2124701 (50W Type)
CS2124702 (25W Type)
RA0844100
BLIND SHEET
RA0841400
BLIND SHEET
RA0997300
LED FILTER
RA0845300
RUBBER KNOB
T9318283A
WIRE ASSY (RED)
T9318284A
WIRE ASSY (BLK)
No. VXSTD P/N DESCRIPTION QTY.
U10206007 TRUSS HEAD SCREW M2.6X6B 10
U24308002 TAPTITE SCREW M3X8NI 13
U03308002 SEMS SCREW ASM3X8NI 2
U24306002 TAPTITE SCREW M3X6NI 2
U71002001 SPRING LOCK WASHER SW2.6 2
U76003001 PLAIN WASHER AW3 2
RA079080A
PAD (DIODE)
50W Type Only
These nuts are attached to
DSUB CONNECTOR.
RA0746700
O RING
RA1433500
VOL KNOB ASSY
U9900216
SPECIAL NUT
Q9000375
SURGE ABSORBER
To Next Page
