32 Appendix 2 Installation Instruction Of Battery Rack
NetSure 731 A41 Subrack Power System User Manual

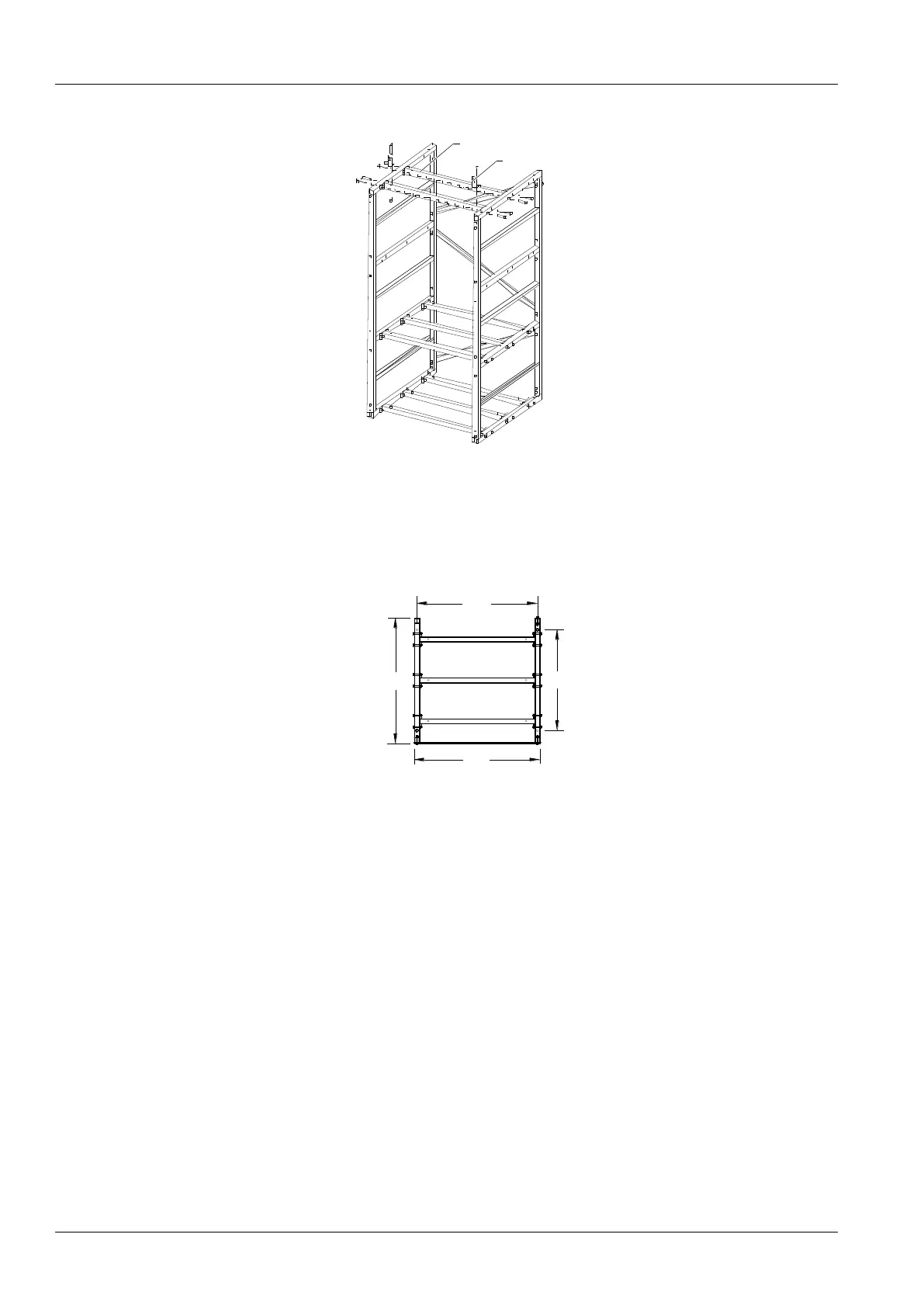

3. Install accessory 2 and accessory 4 according to Figure 7.
Accessory 4
Accessory 2
Figure 7 Installation procedure of accessory 2 and accessory 4
3. Fixing The Battery Rack
1. Fix the battery rack to the ground according to the installation dimensions shown in Figure 8. The fixing bolts are
accessories.
600
600
575
480
Figure 8 Installation dimensions (unit: mm)
2. Fix the subrack subrack power system onto the top of the battery rack. Refer to2.3 Mechanical Installation
