Vertiv CYBEX SC 840D User Manual

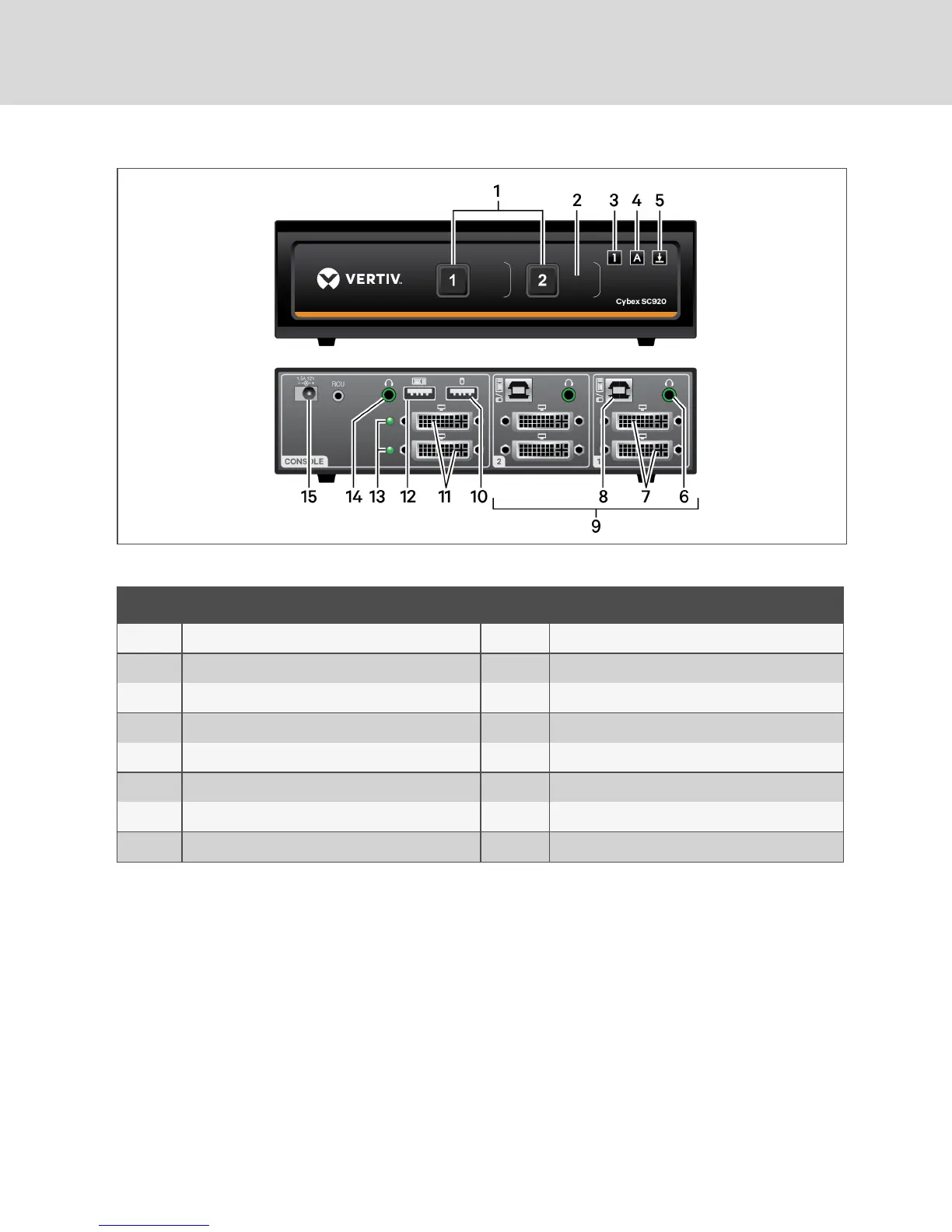

Figure 2.3 SC 920 DVI-I KVMSwitch
ITEM DESCRIPTION ITEM DESCRIPTION
1 LED channel selector 9 PC ports
2 Channel label 10 CONSOLEmouse USB Type-A port
3 Num lock indicator 11 CONSOLE DVI-I video ports
4 Caps lock indicator 12 CONSOLE keyboard USB Type-A port
5 Scroll lock indicator 13 Status LEDs
6 PC audio jack (3.5 mm stereo) 14 CONSOLEaudio jack (3.5 mm stereo)
7 PC DVI-I video ports 15 DCpower inlet
8 PC keyboard/mouse USB Type-B port
Table 2.3 SC 920 DVI-I KVM Switch Description
Vertiv™ | Cybex™ SC Switching System Installer/User Guide
6
