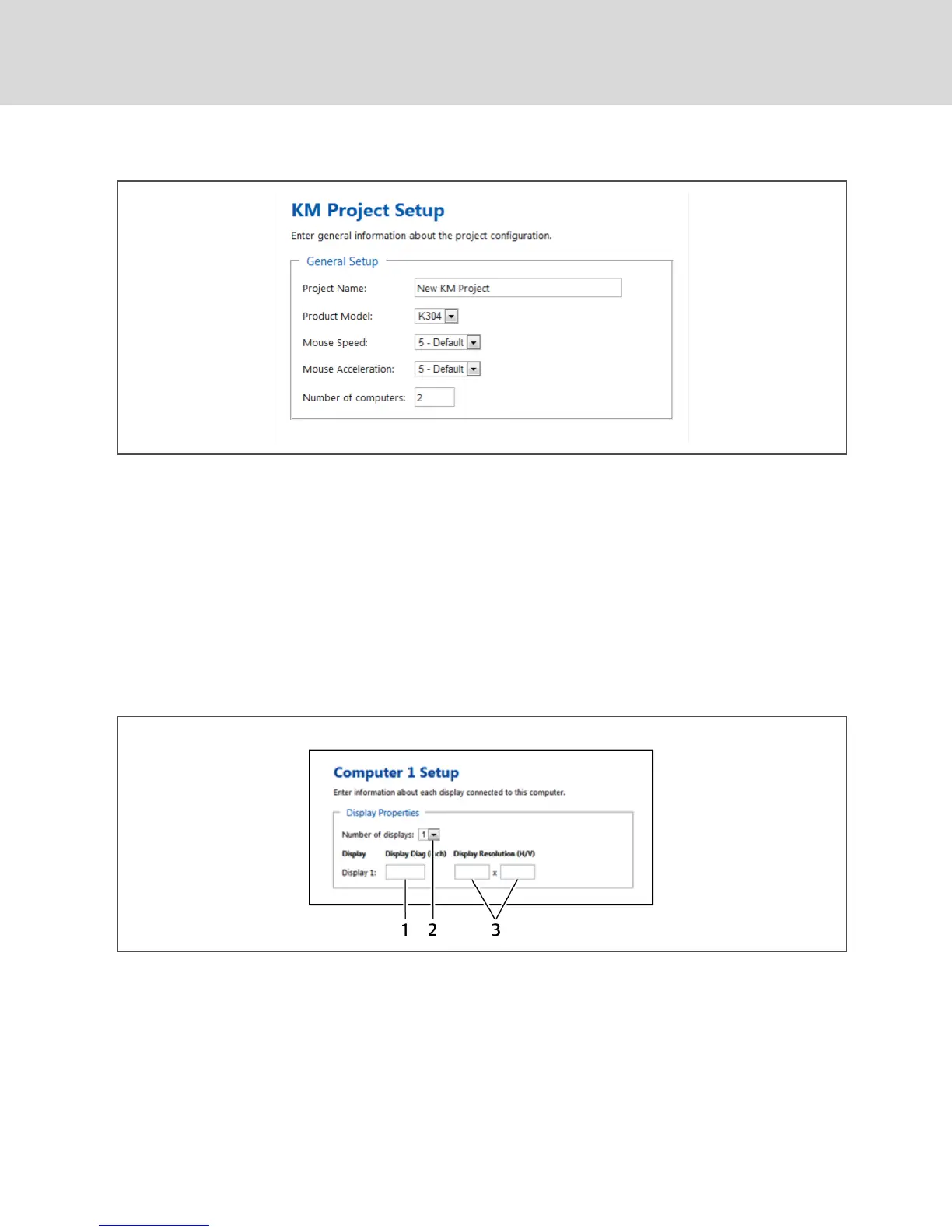

Figure 2.14 KMProject Setup Window
4. Enter a detailed product description that explains the configuration and click Next Step.
5. For each computer, select the number of monitors from the drop-down menu, enter each
monitor's size and resolution and then click Next Step.
NOTE: Multiple monitor configurations require additional steps. See Multiple monitor setup on page 28
for more information.
NOTE: If a monitor is set to portrait orientation, enter the native resolution accordingly. For example, a
monitor with 1680 x 1050 native resolution would have a 1050 x 1680 resolution in portrait orientation.
Figure 2.15 Computer Setup Window
Vertiv™ | Cybex™ SC Switching System Installer/User Guide
24
