Vertiv CYBEX SC 840D User Manual

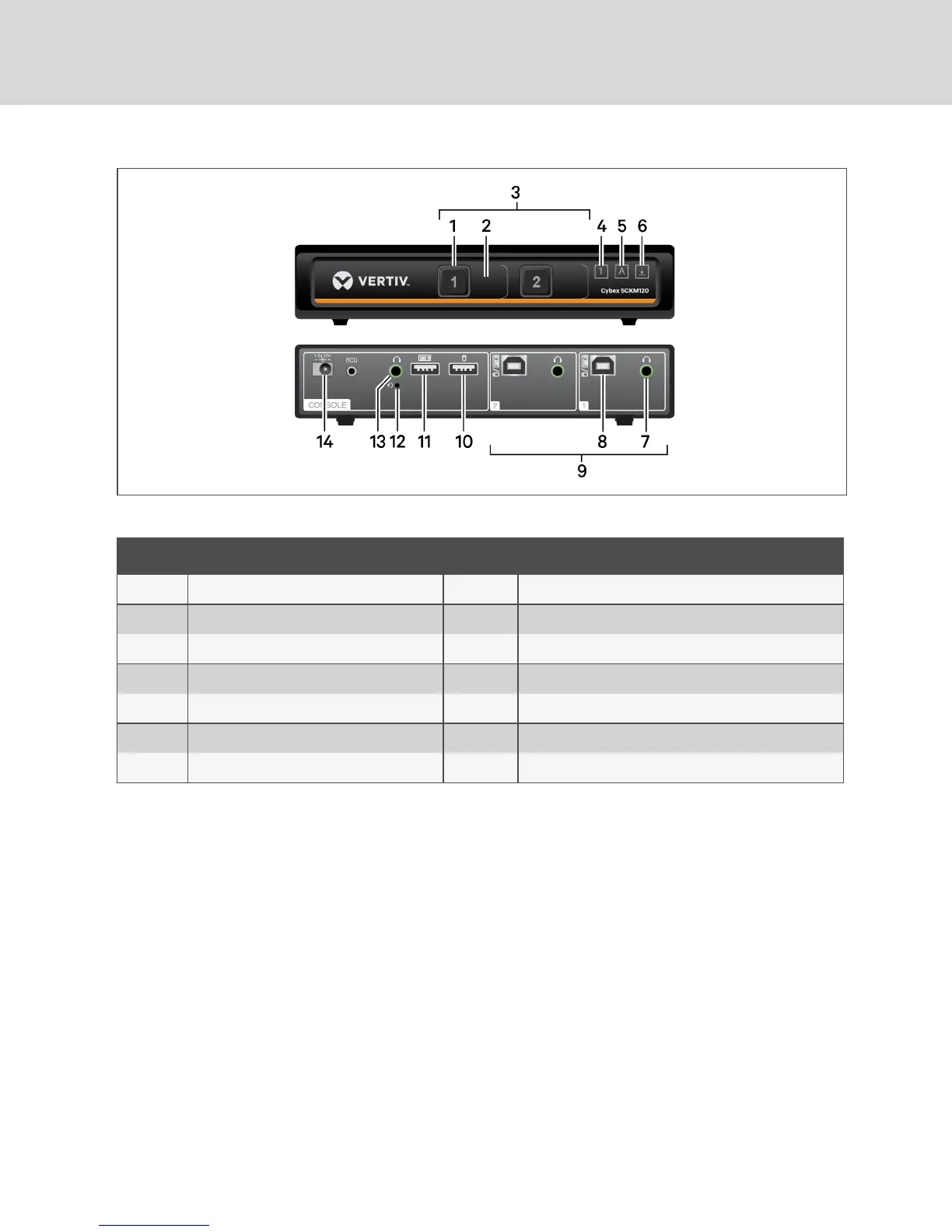

Figure 2.1 SC KM120 Switch
ITEM DESCRIPTION ITEM DESCRIPTION
1 LED channel selector 8 PC keyboard/mouse USB Type-B port
2 Channel label 9 PC ports
3 PCport selectors 10 CONSOLEmouse USB Type-A port
4 Num lock indicator 11 CONSOLE keyboard USB Type-A port
5 Caps lock indicator 12 CONSOLE reset button
6 Scroll lock indicator 13 CONSOLEaudio jack (3.5 mm stereo)
7 PC audio jack (3.5 mm stereo) 14 DC Power Inlet
Table 2.1 SC KM120 Switch Description
Vertiv™ | Cybex™ SC Switching System Installer/User Guide
4
