32 HMX1080/HMX2080 User Manual
HMX TX&RX

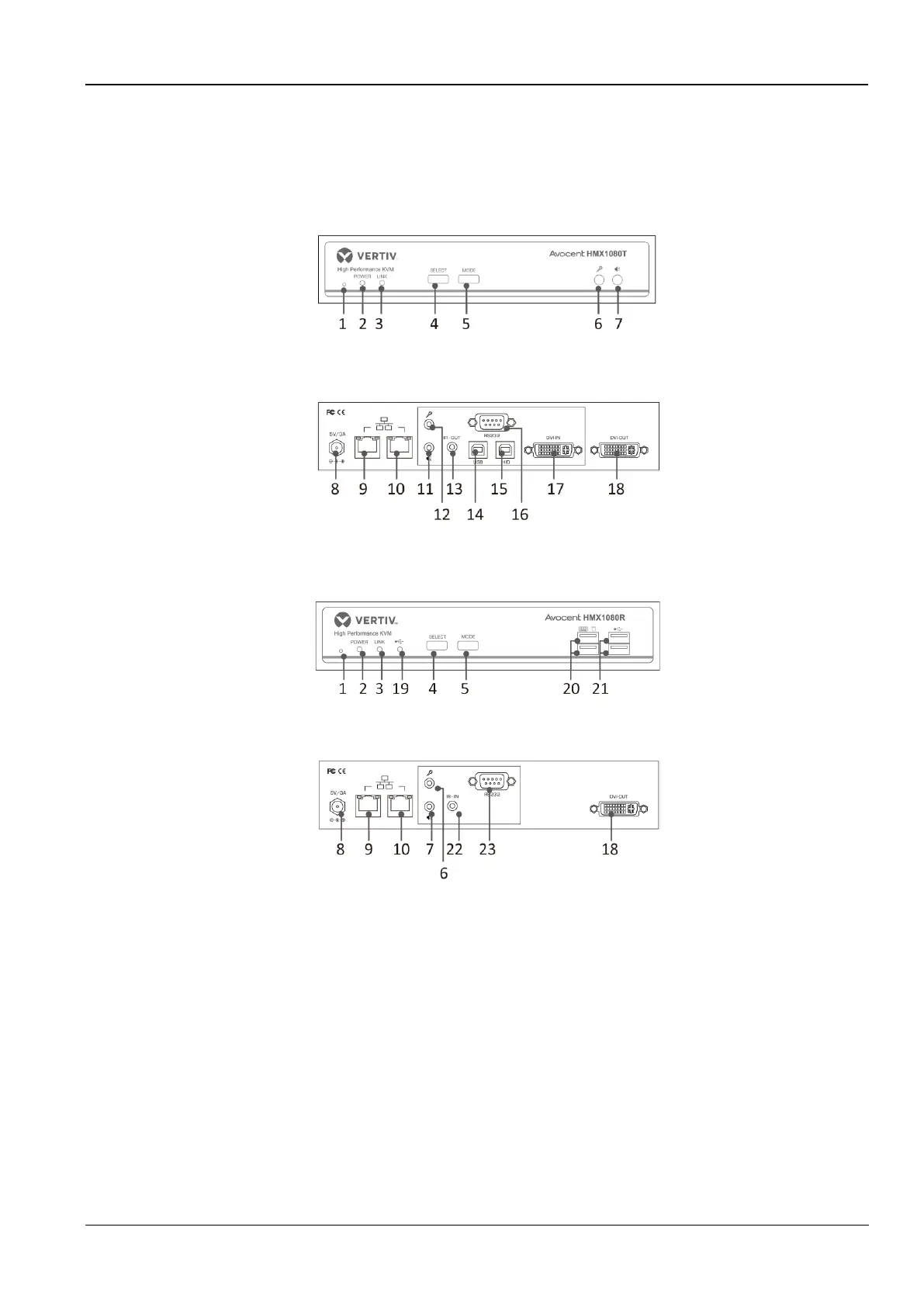

Chapter 5 Product overview
5.1 HMX1080T
Figure 5-1 Front panel 1
Figure 5-2 Rear panel 1
5.2 HMX1080R
Figure 5-3 Front panel 2
Figure 5-4 Rear panel 2
