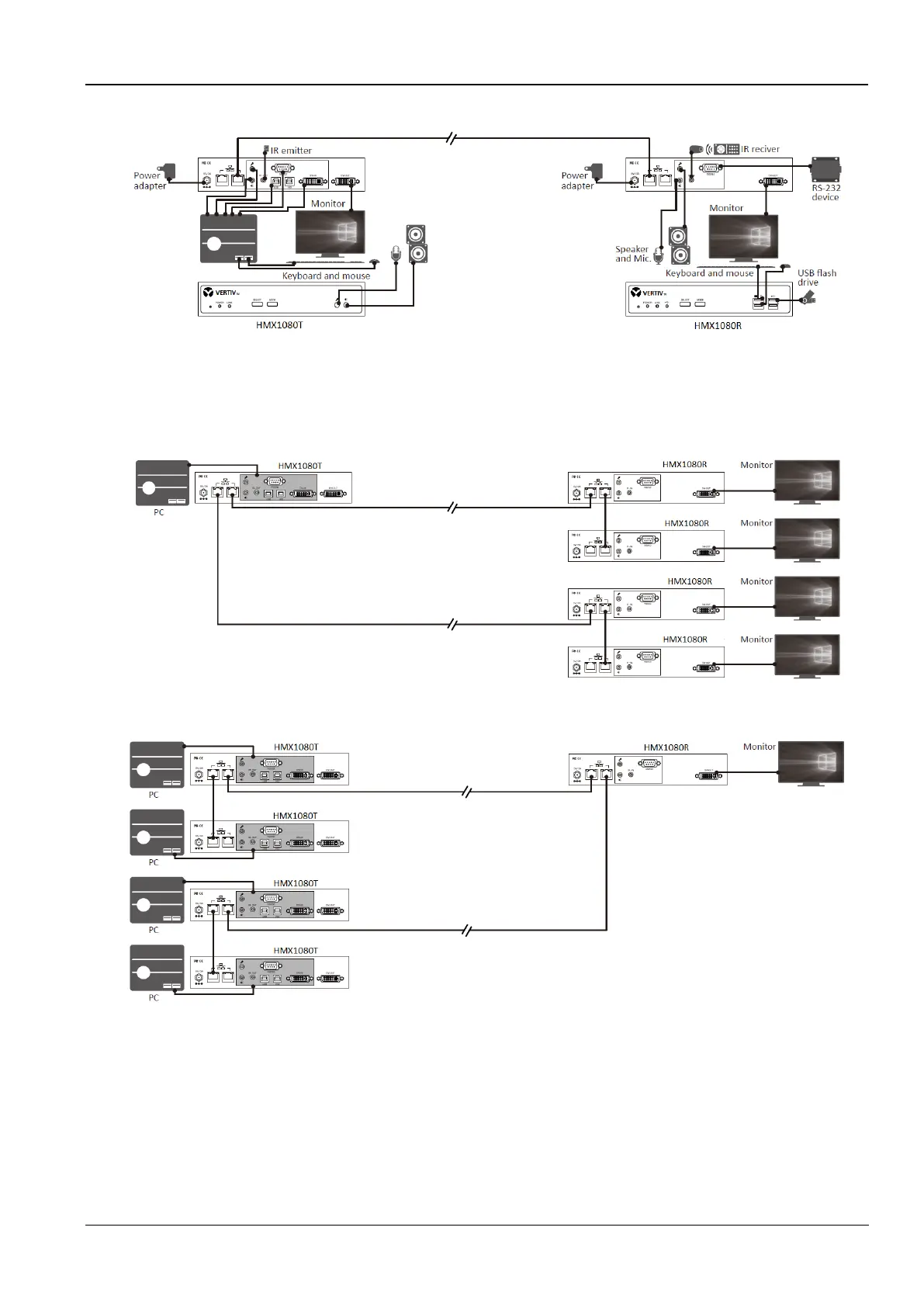

Single transmitter to single receiver
Figure 6-2 1 control 1
Single transmitter to multiple receivers
The illustration shows here is using HMX1080 as an example and only highlighted the connection between the
transmitter and receiver. To connect other peripherals, please refer to the connection of Single transmitter to single
receiver. For the connection of HMX2080, you may take a reference of HMX1080.
Figure 6-3 Multi control 1
Multiple transmitters to single receiver
Figure 6-4 1 control multi
6.3 Connection via a Hub/switch
A Gigabit Ethernet Switch/Hub is necessary if the Network structure is forward to the matrix and expected more than
4 transmitters/receivers will be connected. Under the usage scenario like this, make sure the requirements listed in
the chapter of Requirement of Gigabit Ethernet Switch below must be supported by the Hub/Switch.
Requirement of Gigabit Ethernet Switch.
1) When grouping these units of Transmitter and Receiver, a Gigabit Ethernet Hub/Switch is necessary due to the
requirement of bandwidth. To ensure the better quality of transmission, a reputable name brand hub/switch is
recommended.
