Mechanical Installation
Vertiv | Liebert CRD10 | User Manual 29
3.3.1 Base Plate Pipe Outlet Location & Dimensions
The locations of the pipe inlets and outlets on the unit base plate are shown in Figure 3-3 and corresponding
dimensions of the base plate pipe outlet are tabulated in Table 3-3.

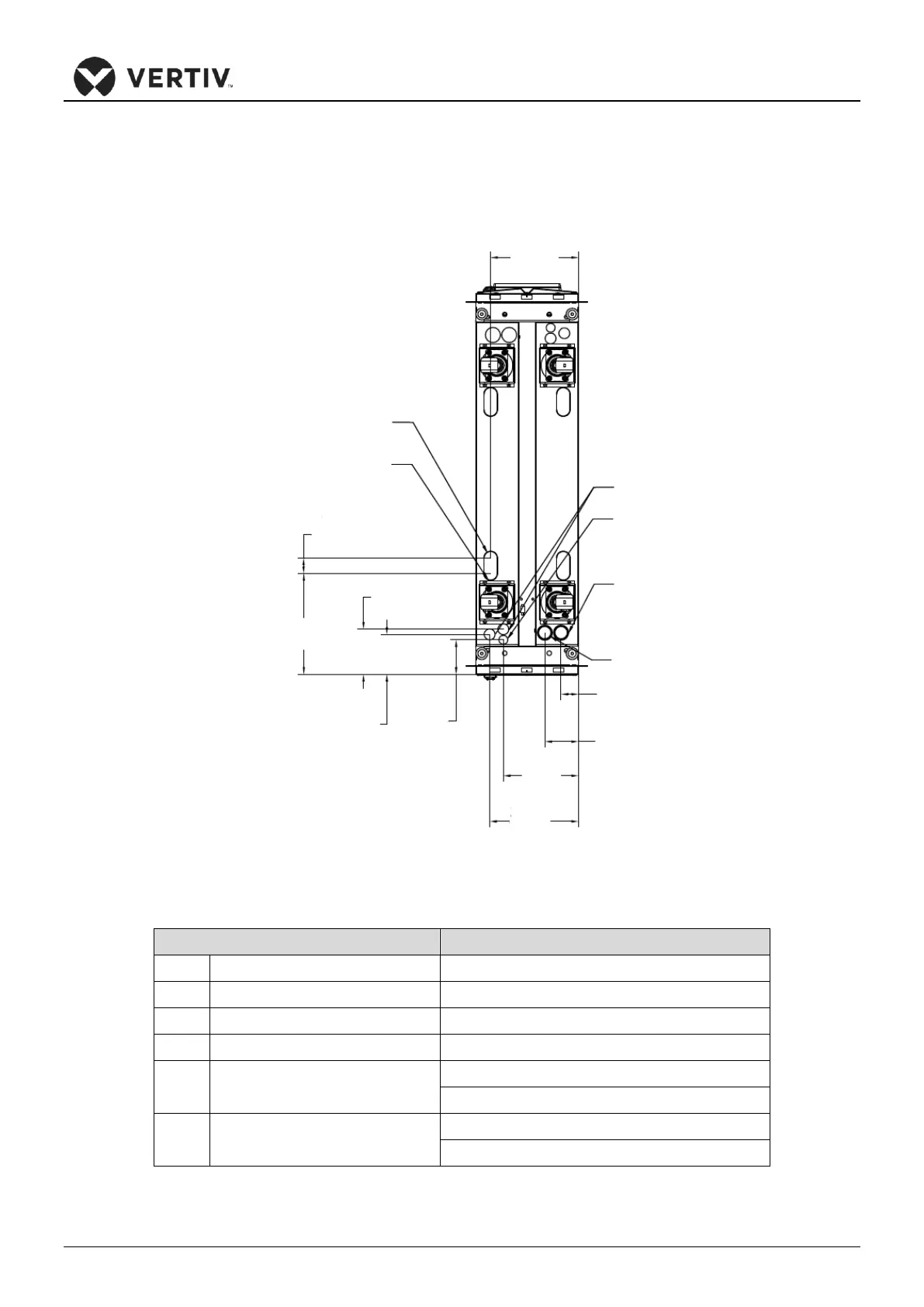

Figure 3-3 Base Plate Location for Pipe Outlets
Table 3-3 Dimensions of Base Plate Pipe Outlet (mm/inch)
UNIT BOTTOM CONNECTIONS
CRD10
RLT
Refrigerant Liquid Line Inlet
1/2" O.D. Copper
RGT
Refrigerant Gas Line Outlet
5/8" O.D. Copper
CPT
Condensate Pump
NPT 1/2"(Rc1/2”) Female copper threaded joint
CGT
Condensate Gravity
NPT 1/2" (Rc1/2”) Female copper threaded joint
HVT
High Voltage Bottom Connection
Combination Knockout
1-1/8" (29 mm)
LVT
Low Voltage Bottom Connection
Knockout Hole Diameter
7/8" (22 mm)
NOTE: NPT threaded joint is for UL model, Rc threaded joint is for CE model.
256mm
[10 1/16”]
RGT
RLT
HVT
LVT
CGT
CPT
54mm
[2 1/16”]
295mm
[11 9/16”]
132mm
[5 3/16”]
118mm
[4 5/8”]
101mm
[3 15/16”]
219mm
[8 5/8”]
260mm
[10 1/4”]
51mm
[2”]
98mm
[3 3/16”]
