Table 3-1 Calibrations of electrical components
Refrigeration Circuit
Item No
Component
Setting
Notes
Contact
4
High Pressure Switch
Open 4.1±0.1MPa
Close 3.3±0.1MPa
Normally
Closed
5
High Pressure
Transducer
Range 0-4.5MPa
0.5-4.5VDC
-
16
Low Pressure
Transducer
Range 0-1.73MPa
0.5-4.5VDC
-
-
Clogged Filter
Different Pressure
Switch
Set Point Range
50-400Pa
Normally
Closed

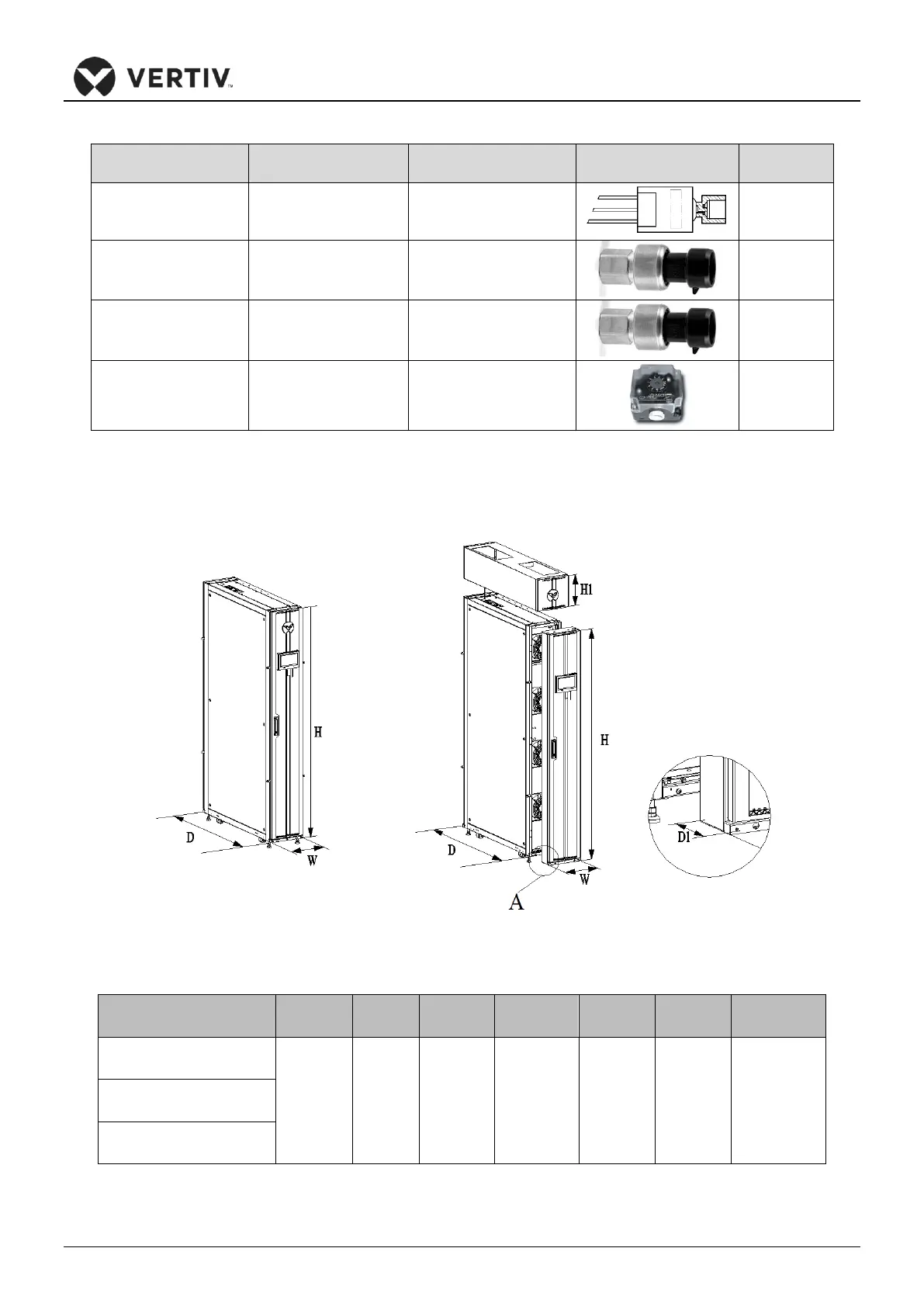

3.3 Product Dimensions
The dimensions and weight of the indoor unit are shown in Figure 3-2 and in Table 3-2.
Figure 3-2 Dimensions of the Indoor Unit
Table 3-2 Dimension of the Indoor Unit
Model
H
(mm/in.)
H1
(mm/in.)
D
(mm/in.)
D1
(mm/in.)
W
(mm/in.)
Net weight
(kg/lb)
Gross weight
(kg/lb)
CRD100-0D00A
2000/78.7
267/10.5
1132/44.6
100/3.9
300/11.8
231/509
313/690
CRD101-0D00A
CRD102-1D00A
Note: H1 and D1 dimensions are associated with optional frame extension kits allowing CRD10 to match
rack heights or depths.
