Mechanical Installation
Vertiv | Liebert CRD10 | User Manual 33

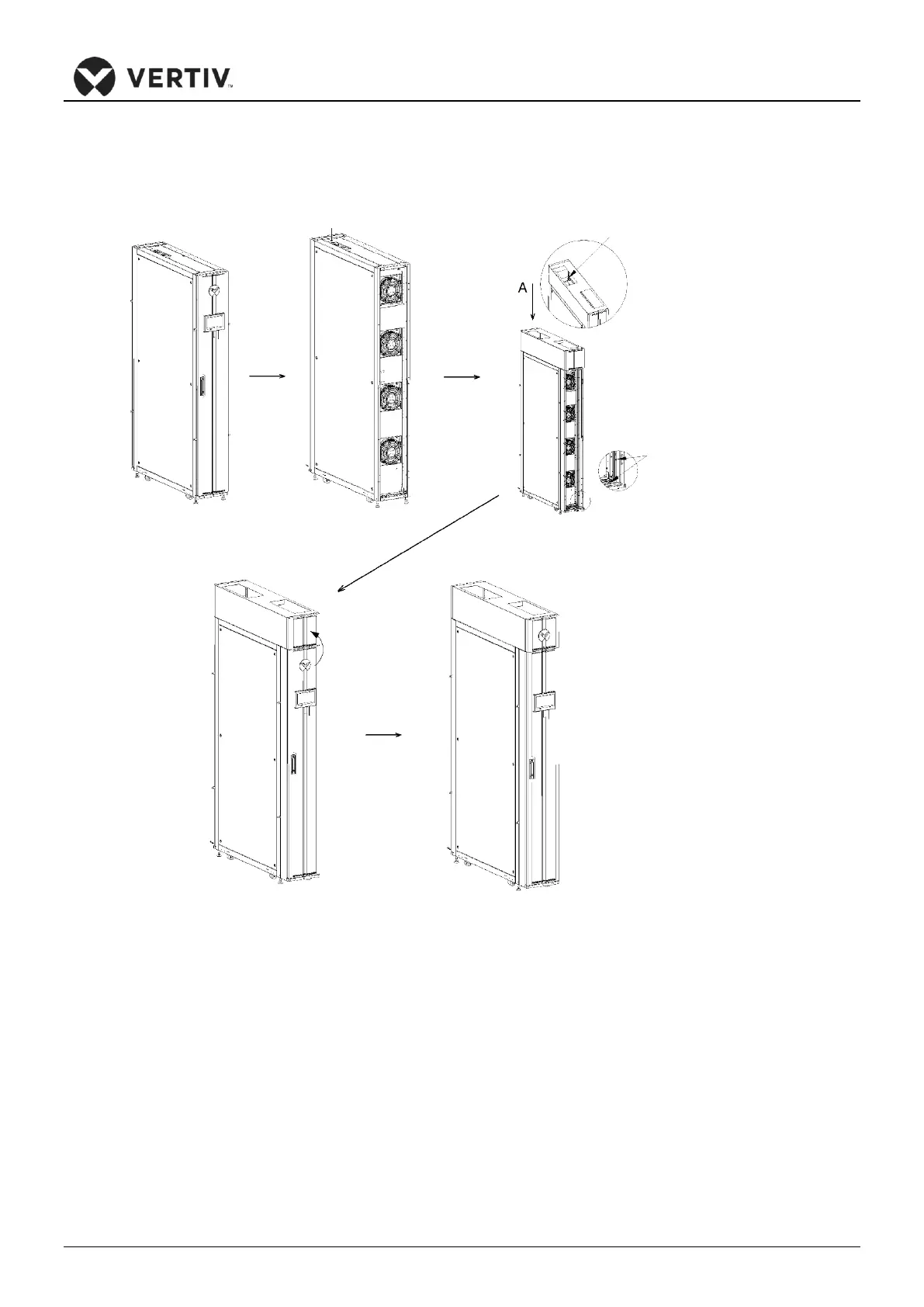

Figure 3-7 Top frame installation with front frame
Step1: Remove front door, display and
foot rail from the unit.
Step2: Fix front frame with M5×12 screws(10PCS). And
fix the top frame with M12×30(4PCS) as well. Then
install back the front door, display and foot rail.
Screw(M12×30) ×4
Screw(M5×12) ×10
Step3: Move the V logo to the
top frame.
