Mechanical Installation
Vertiv | Liebert CRD10 | User Manual 49
3.10.2 Sealing the Holes of the Top Plate of the Cabinet
Holes are reserved at the top of the cabinet to facilitate smooth on-site installation as well as the
connection of the rack on the top of the machine room. Use rubber plugs and bolts to seal the remaining
holes after the cabinet is installed on the site. Use M13.5 rubber plugs to seal four holes at the top of the
cabinet and M12x30 bolts to seal 8 holes at the top plate of the cabinet. This prevents water from entering
the cabinet. Figure 3-25 depicts the schematic diagram of sealing the holes on the top plate of the cabinet.
Use the provided four M13.5 rubber plugs to seal the holes. Use the provided eight M12x30 bolts to seal the
holes.

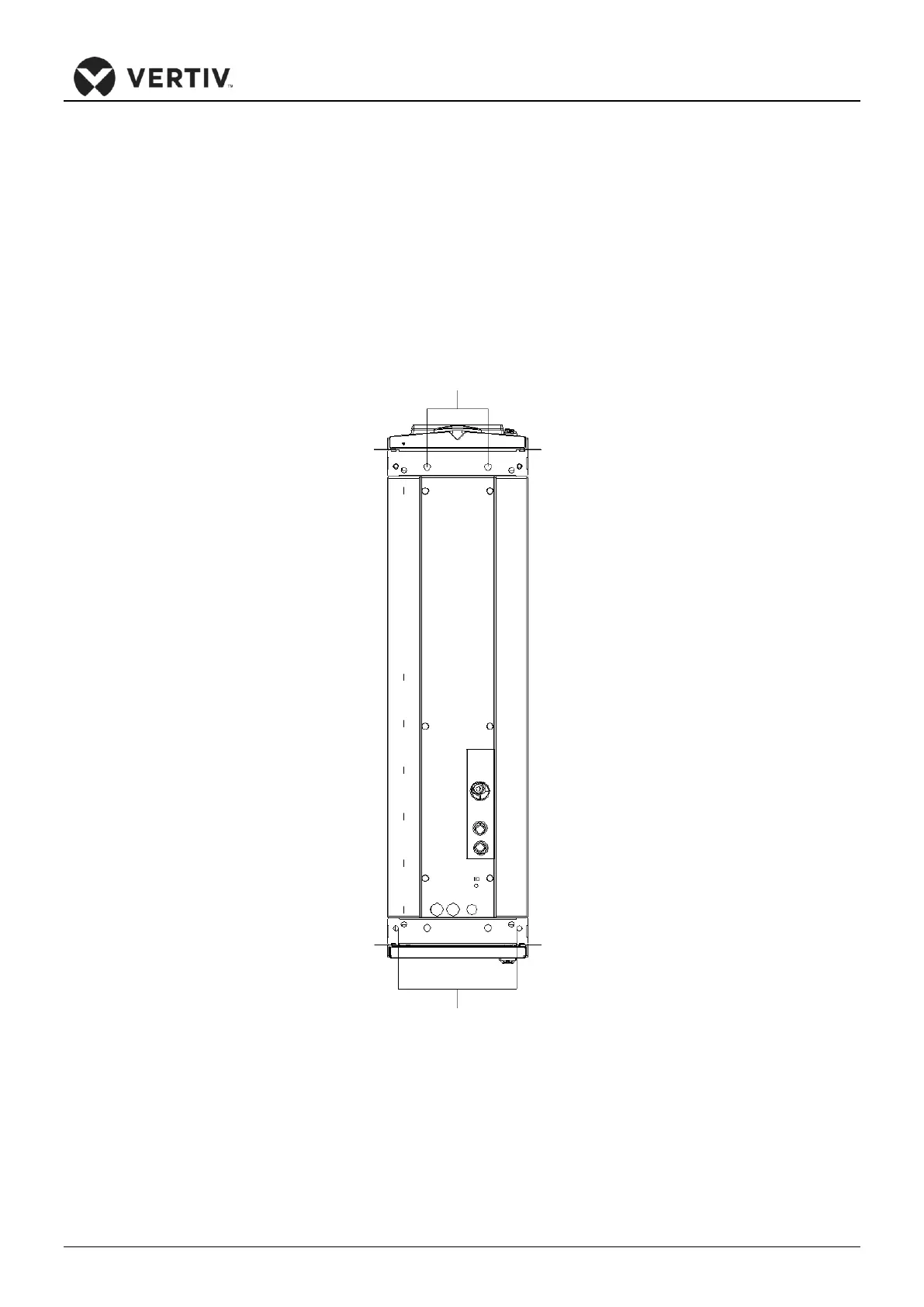

Figure 3-25 Sealing the Top Holes of the Cabinet
Use the provided four M13.5 rubber plugs to seal the holes
Use the provided eight M12×30 bolt plugs to seal the holes
