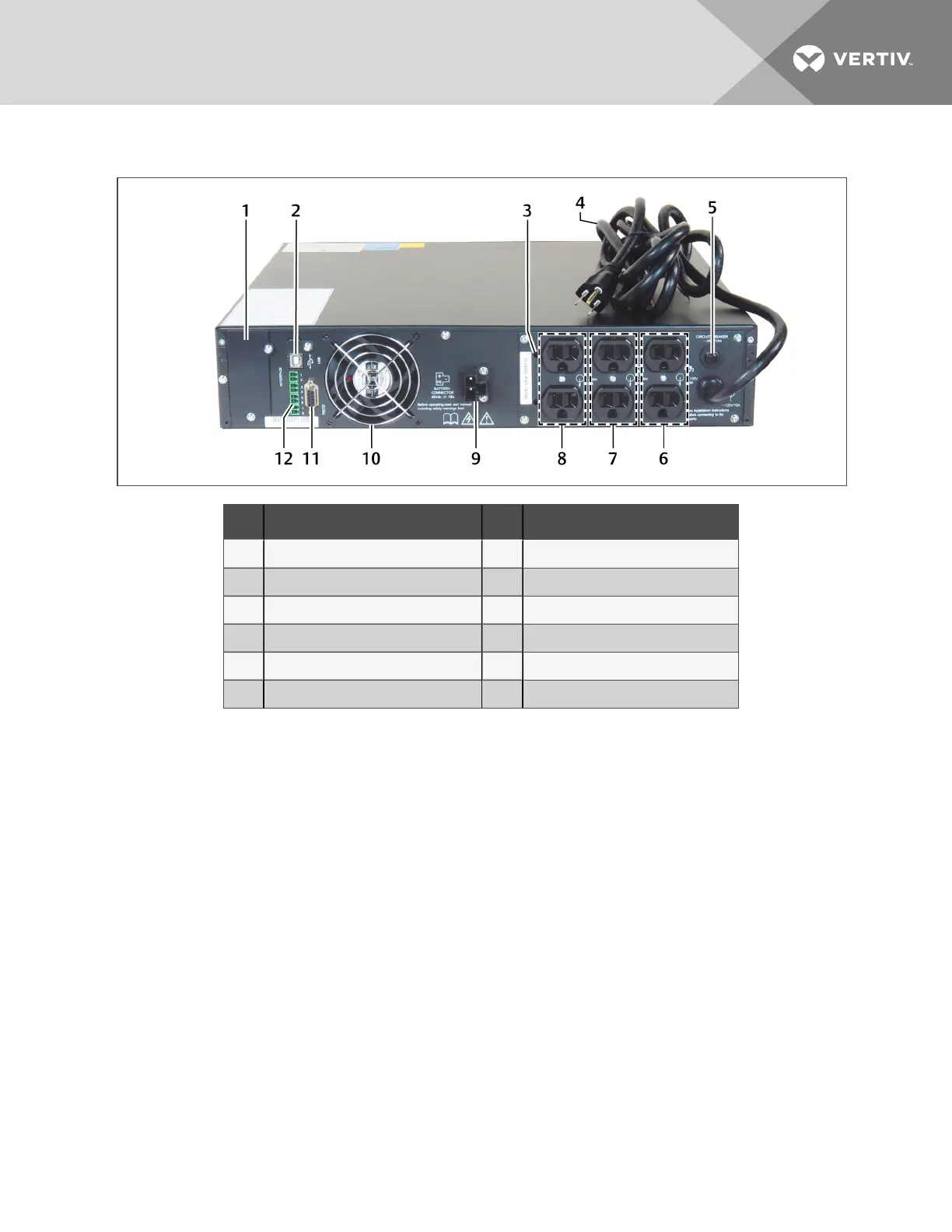

Figure 2.2 Rear panel components—120-V rack/tower, 500, 700, 1000VA models
NO. DESCRIPTION NO. DESCRIPTION
1 Liebert® IntelliSlot port 7 Programmable output receptacles #1
2 USB port 8 General output receptacles
3 Strain-relief attachment 9 External battery connector
4 Input power cable 10 Cooling fan
5 Input circuit breaker 11 RS232 port
6 Programmable output receptacles #2 12 Terminal block communication
