4 OPERATION AND DISPLAY PANEL
The operation and display panel on the front of the GXT4 has control buttons, LED indicators and a
liquid-crystal display (LCD).

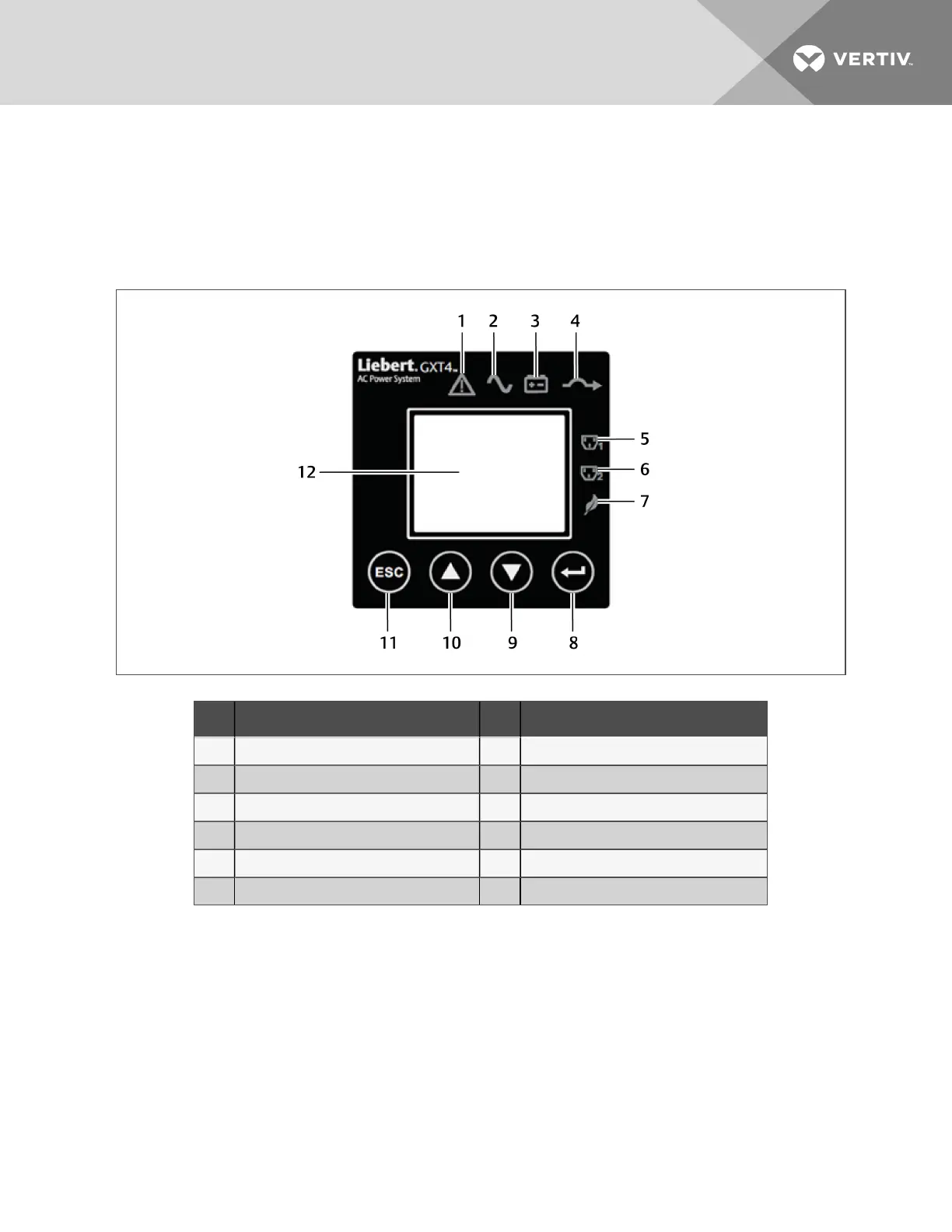

Figure 4.1 Operation and display panel
NO. DESCRIPTION NO. DESCRIPTION
1 Fault indicator 7 ECO mode indicator
2 Inverter indicator 8 Enter button
3 Battery indicator 9 Down button
4 Bypass indicator 10 Up button
5 Programmable-outlet 1 indicator 11 Escape button
6 Programmable-outlet 2 indicator 12 LCD panel
4 Operation and Display Panel
27
