GXT5 Description6

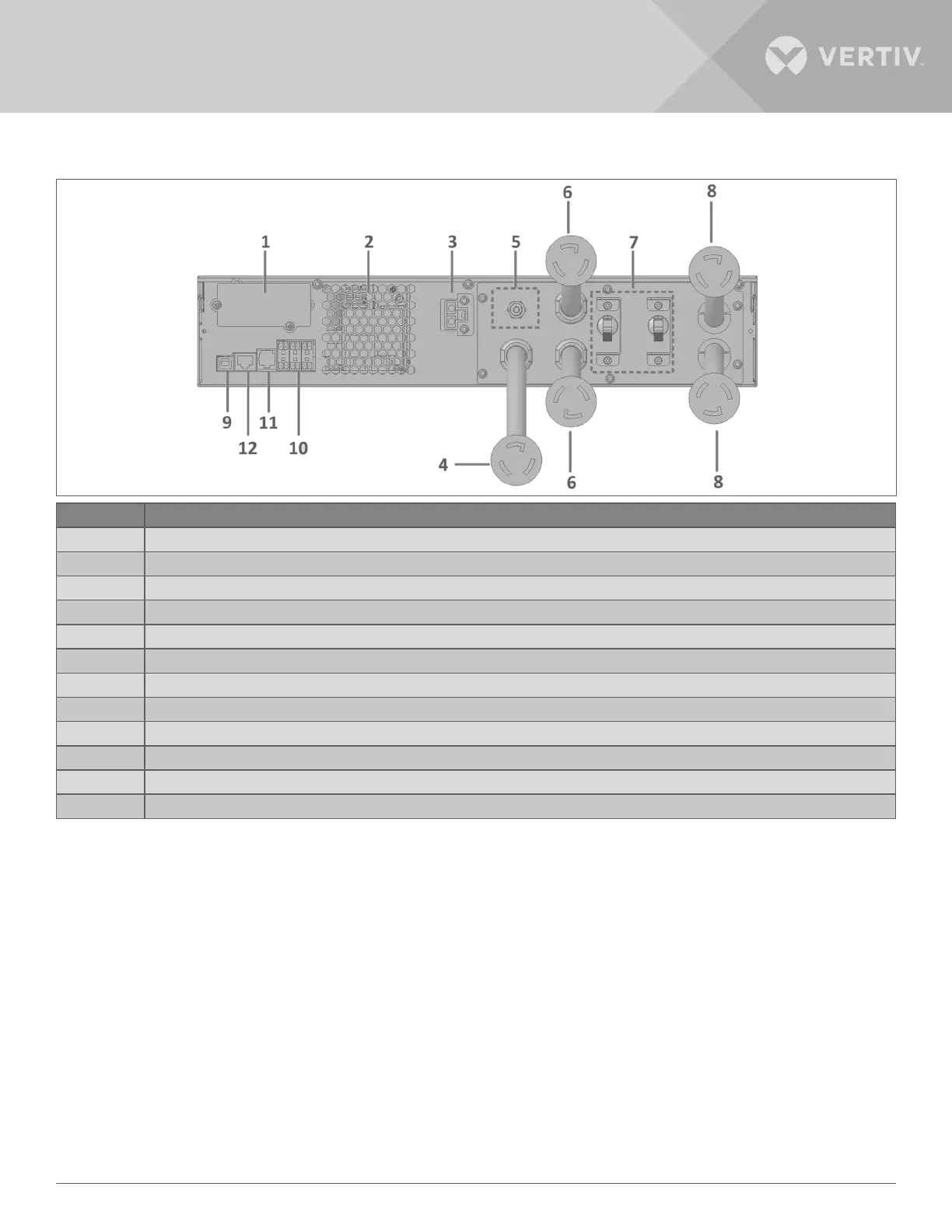

Figure 1-3 GXT5-3KL630RT2UXL Rear Panel
ITEM DESCRIPTION
1 Liebert® IntelliSlot™ port
2 Ventilation Hole
3 External-battery-cabinet connector
4 Input power cable, L6-30P
5 Output circuit-breaker reset button, 20-A
6 Output cable, L6-30R
7 Output circuit-breakers, 15-A
8 Output cables, L6-15R
9 USB port
10 Terminal-block communication ports
11 RS-232 port - RJ-45/RJ-11 connection used for command line interface
12 RS-485 port - RJ-45 connection used for external temperature sensors
