Vertiv | Liebert® GXT5 | Installer/User Guide 7

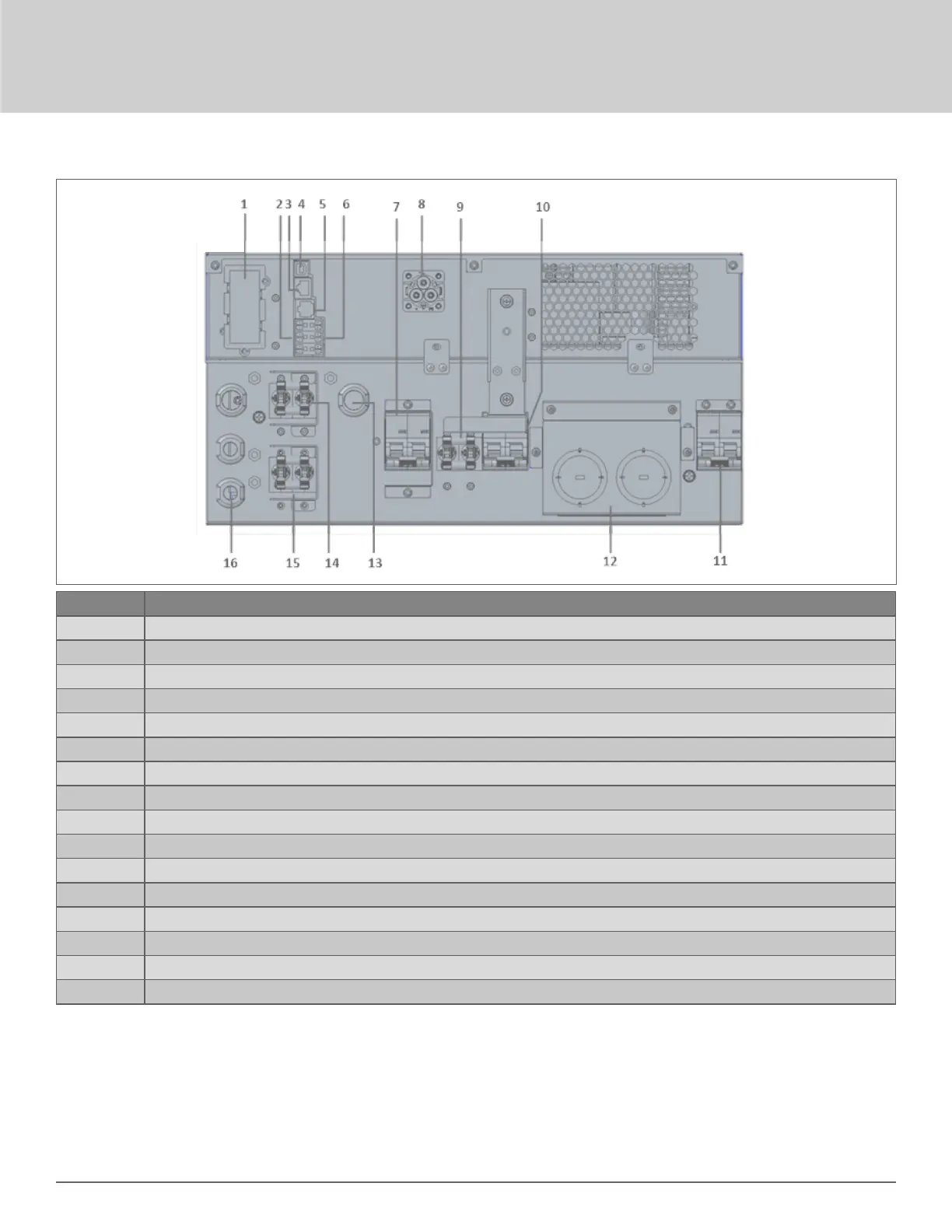

Figure 1-4 GXT5-5000HVRT5UXLN Rear Panel
ITEM DESCRIPTION
1 Liebert® IntelliSlot™ port
2 Terminal-block communication connectors
3 RS-485 port - RJ-45 connection used for external temperature sensors
4 USB port
5 RS-232 port - RJ-45/RJ-11 connection used for command line interface
6 REPO connector
7 Output circuit breaker
8 External-battery-cabinet connector
9 Programmable outlet maintenance bypass breaker
10 Maintenance-bypass breaker
11 Input circuit breaker
12 Removable junction box with knockouts for hardwire I/O
13 L6-30R output receptacle (2x)
14 L6-30R output breaker
15 Programmable L6-20R output breaker
16 Programmable L6-20R output receptacle (2x)
