4. Then connect the L-shape pipe and the reservoir. Use a cable tie to fix it.

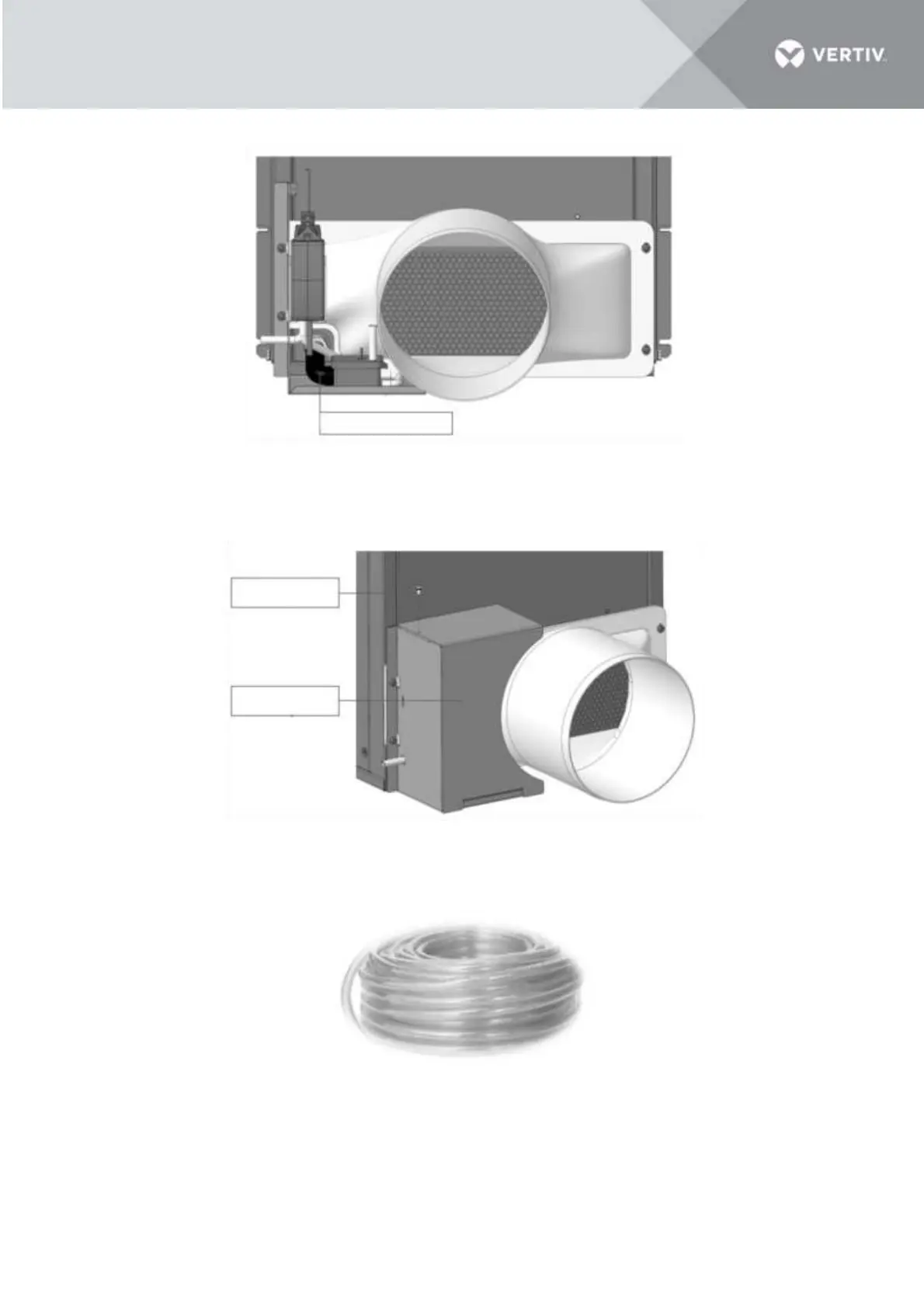

Figure 3-18 Connect the pipe 4 and the reservoir
5. After that, condensate pump bracket part 2 should be tightened by a M5 screw. Torque=4.0 Nm (2.95
lb-ft).
Figure 3-19 Pump bracket part 2 installation
6. There are a condensate water pipe (7.5 m / 24.6 ft) in the package, which can be used to extend
drainage lines.
Figure 3-20 Anti-Siphoning device and condensate water pipe
The pump power plug can be pulled out from the gap between the pump bracket and the transition part.
In case of powering the condensate pump not through rPDU in vRack, the pump must be protected by a 1
A inline fuse upstream.
