VESDA-EVES-A00-P Product Guide
90 www.xtralis.com

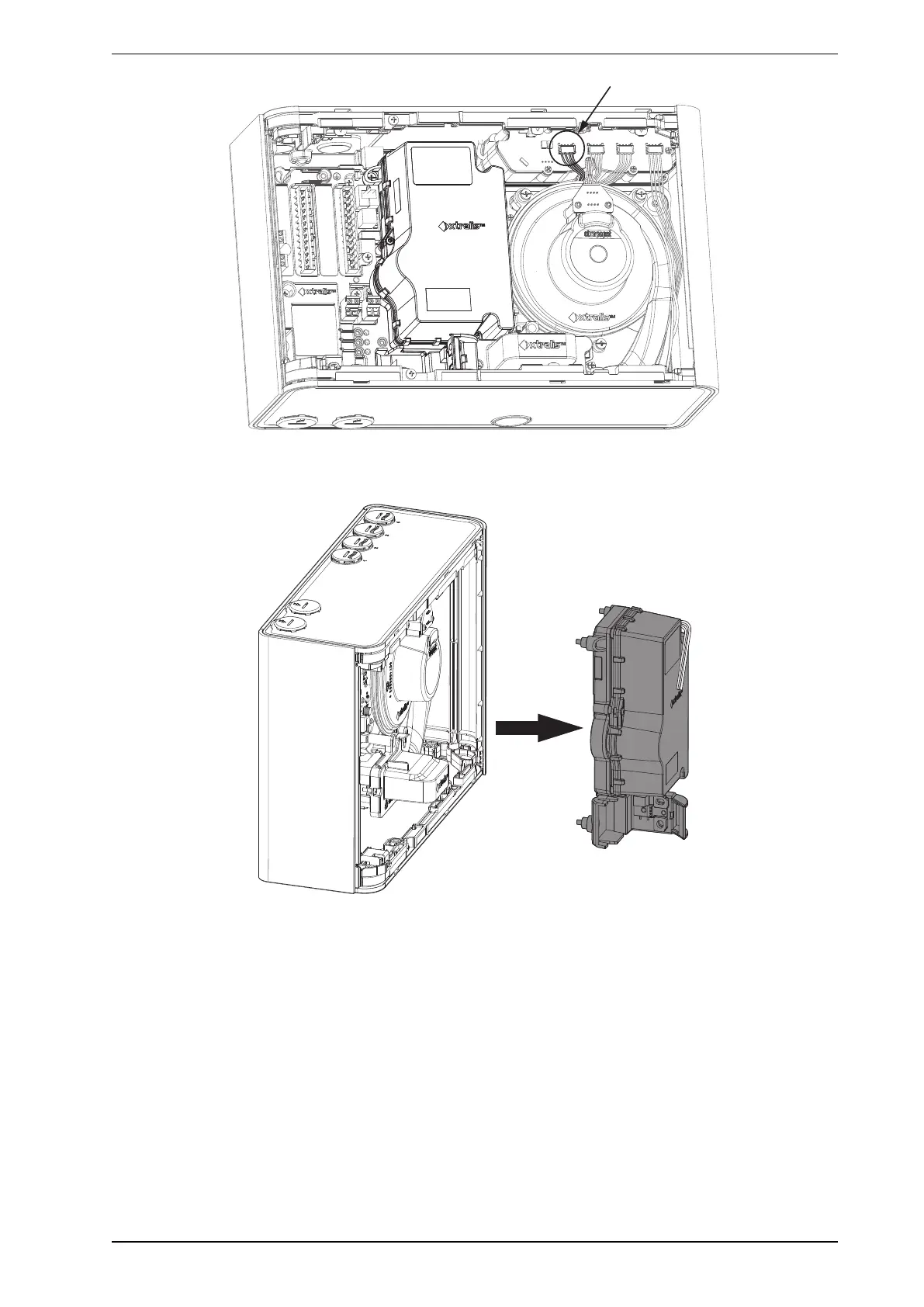

Figure7-14: Disconnect Chamber Loom
5. Remove the chamber from the detector base (Figure7-15).
Figure7-15: Remove the Chamber from the detector base
