• ANALOGUE OUTPUT (DGT4 AN version)
On current:
9. I+ + 20 mA
10. I- 0 mA (GND)
On voltage:
11. V+ + 10 V
12. V- 0 V (GND)
Note: the maximum resistance applicable on the output current is 350 Ohm and the minimum resistance applicable
on the output voltage is 10 kohm.
• RS 485 SERIAL PORT (DGT4, DGT60 and DGT4 AN models)
13. A(+) 485 + Line
14. B(-) 485 - Line
• RS 232 SERIAL PORT
15 . TX Transmission
16 . RX Reception
17 . GND GND

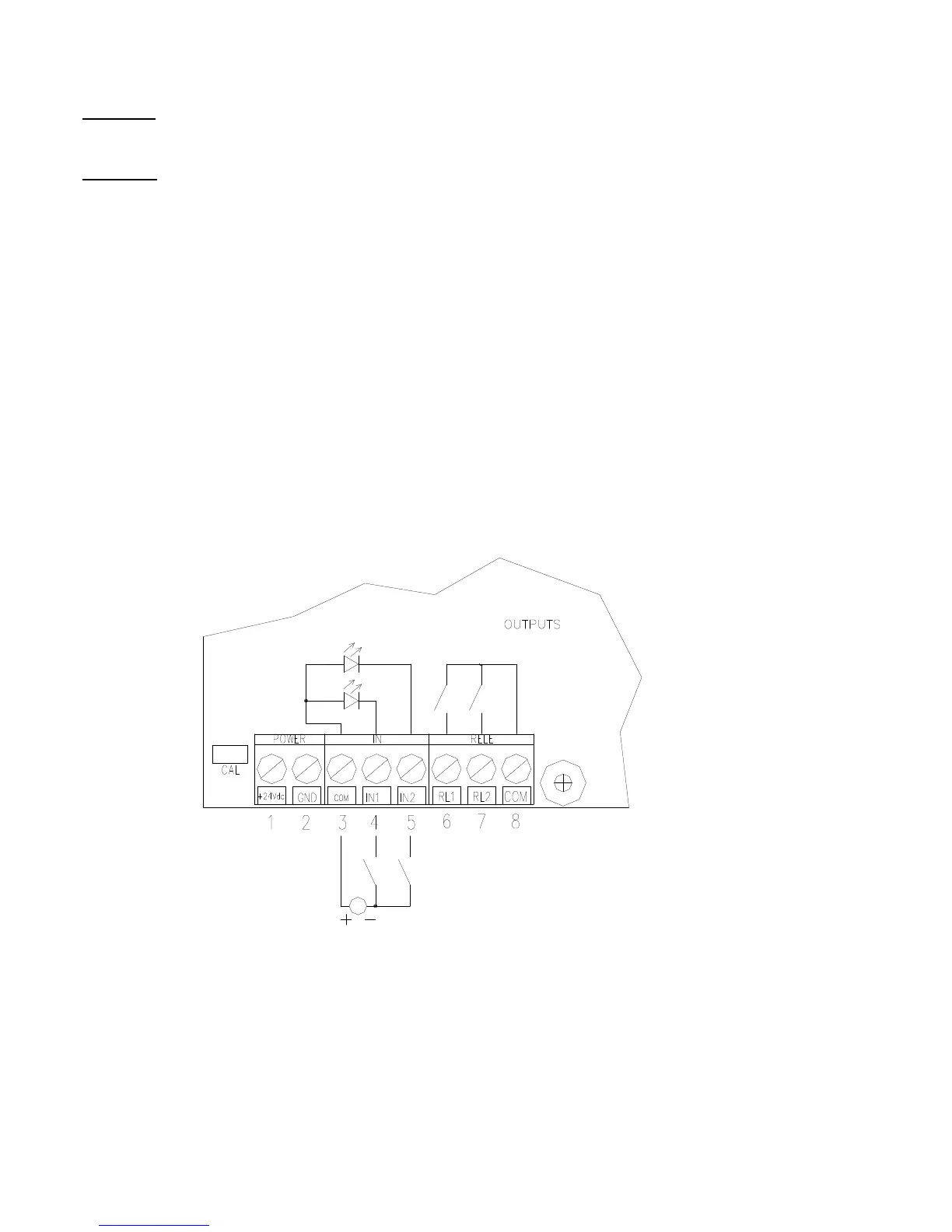

• INPUTS (OPTOISOLATOR PHOTOCOUPLERS) AND PHOTOMOSFET OUTPUTS (for all the versions)
The maximum power of the outputs 48 Vac 0,15 A max (or 60 Vdc 0,15 A max), the maximum voltage applicable to
the inputs is between 12 ÷ 24 Vdc with current from minimum 5 mA to maximum 20 mA.
