• RS 485 SERIAL PORT (DGTP and DGTP AN models)
24. A(+) 485 + Line
25. B(-) 485 - Line
• COM1 RS 232 SERIAL PORT
26. TX Transmission
27 . RX Reception
28 . GND GND
• COM2 RS 232 SERIAL PORT
29. TX Transmission
30 . RX Reception
31. CTS Synchronism signal
32 . GND GND

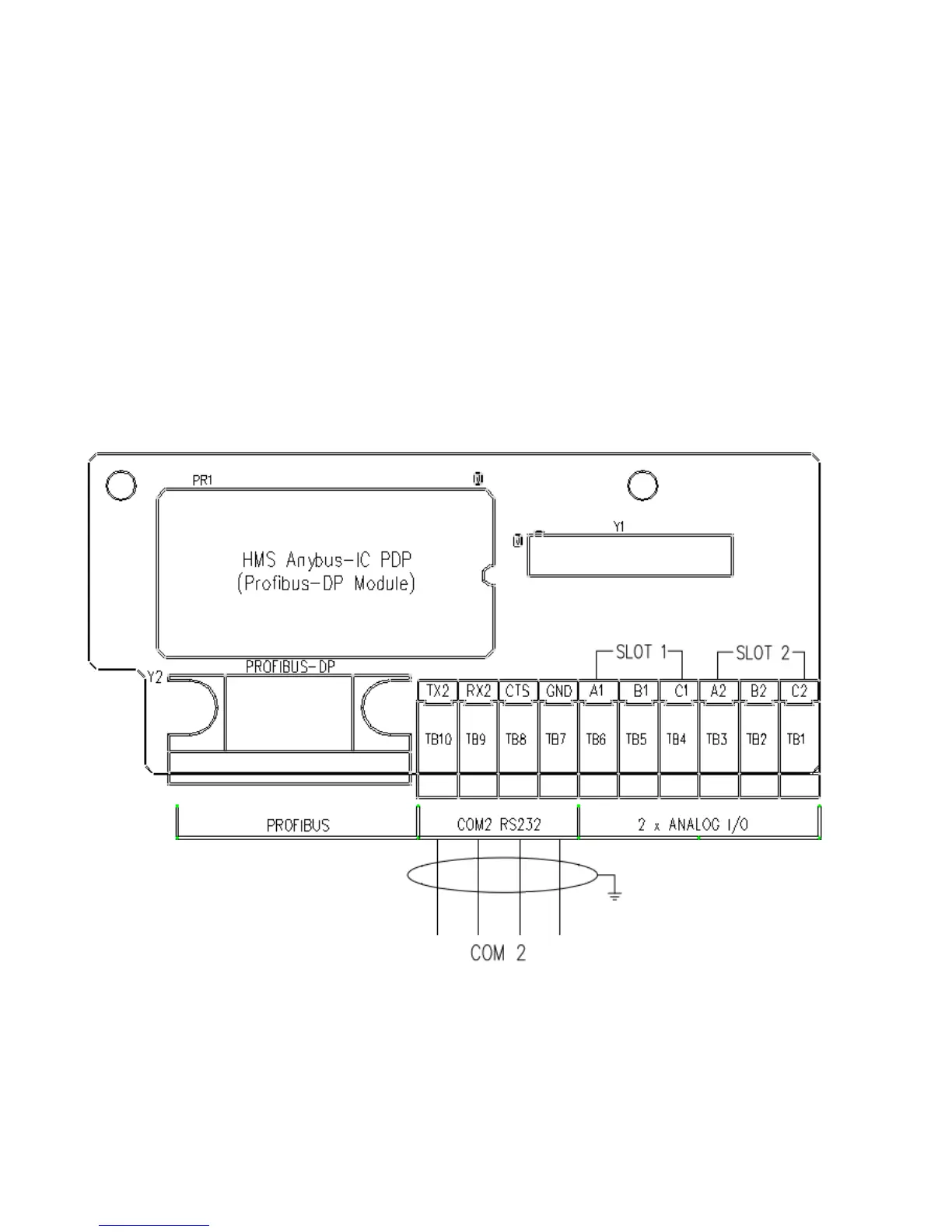

11.7 DGTP PB EXPANSION BOARD
