DGT / DGT60 / DGTQ / DGTP
84

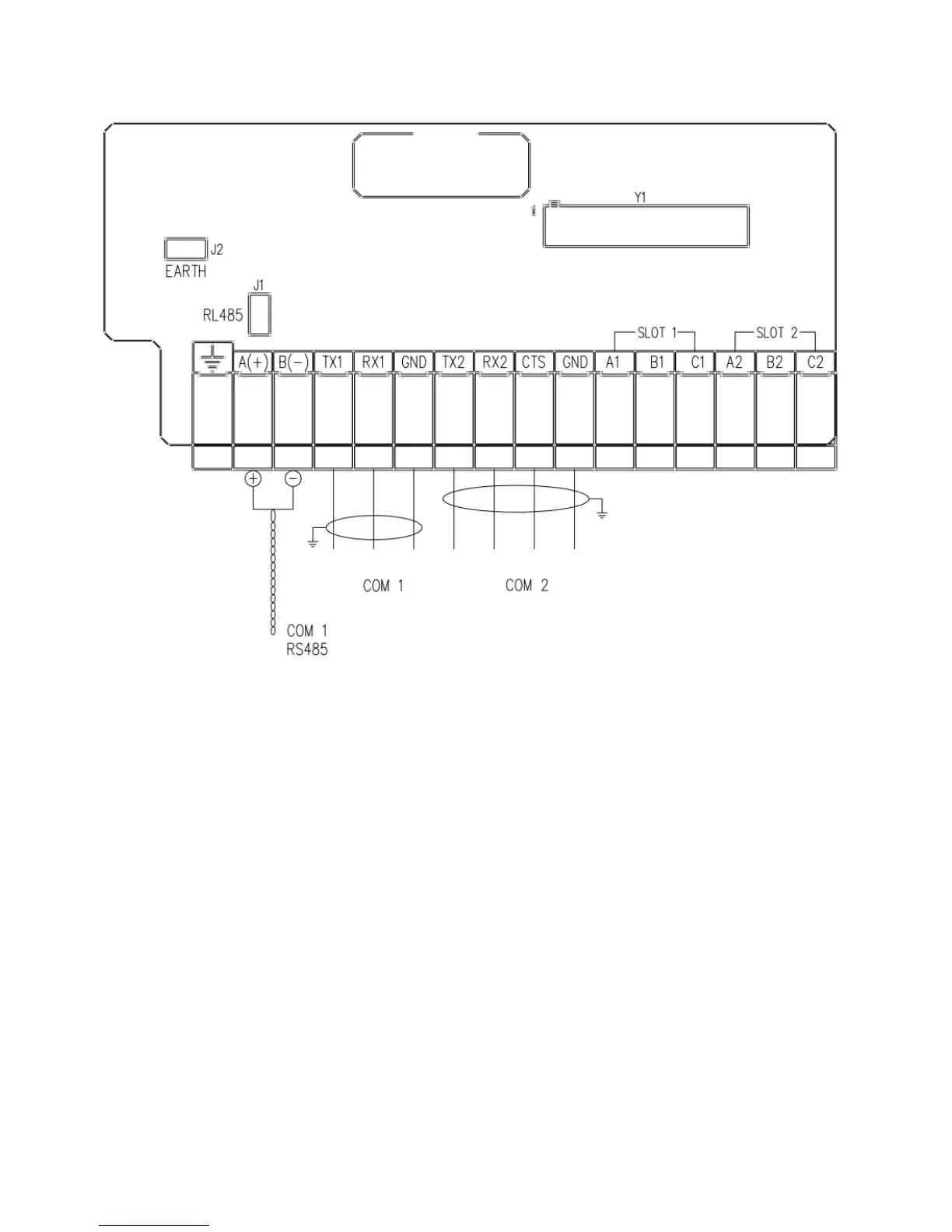

11.6 DGTP / DGTP AN EXPANSION BOARD
MEANING OF DGTP / DGTP AN TERMINAL BOARDS AND EXPANSION BOARD JUMPERS
• ANALOGUE OUTPUT (DGTP AN version)
SLOT 1 ( I/O 1)
33. I+ + 20 mA
34. COM (GND)
35. V+ + 10 V
SLOT 2 ( I/O 2)
36. I+ + 20 mA
37. COM (GND)
38. V+ + 10 V
Note: the maximum resistance applicable on the output current is 350 Ohm and the minimum resistance applicable
on the output voltage is 10 kohm.
