Ⅴ. Blade assembly
Blades should be replaced every 6 months. Your blade may need
to be replaced more often if you are cutting thicker material such as
fl ock, glitter, or refl ectives.

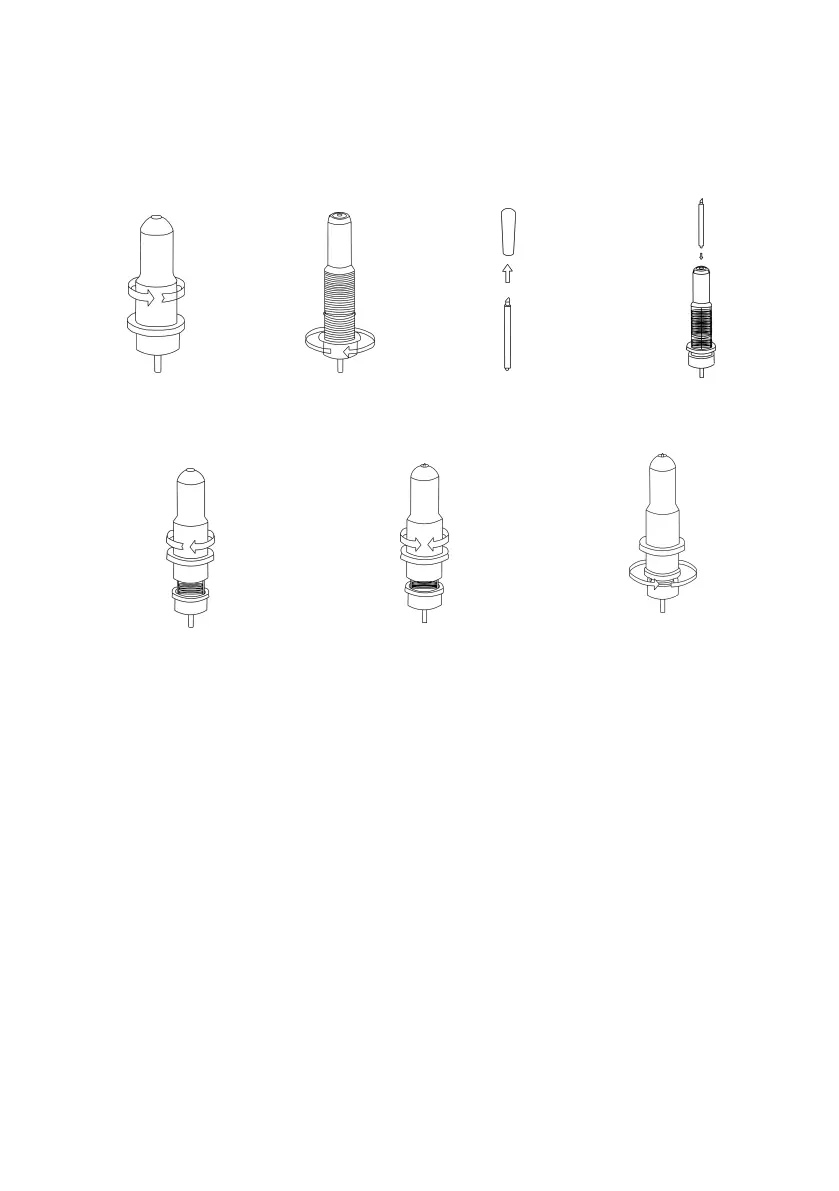

1 Unscrew the cap from
the Blade Carriage.
2 Set Brass Ring on Blade
Carriage to the fully down
position.
3 Remove the protective
cover from a newblade.
4 Insert the blade into the
top of the Blade Carriage.
5 Screw the cap back
onto the Blade Carriage.
6 Adjust the carriage cap until the
blade is protruding approximately
1/64 of an inch.
7 Adjust the Brass Ring until it fi ts
snug against the Cap. This will help
keep the cap in place during operation.
