 Longitudinal Turning with
Auto Feed:

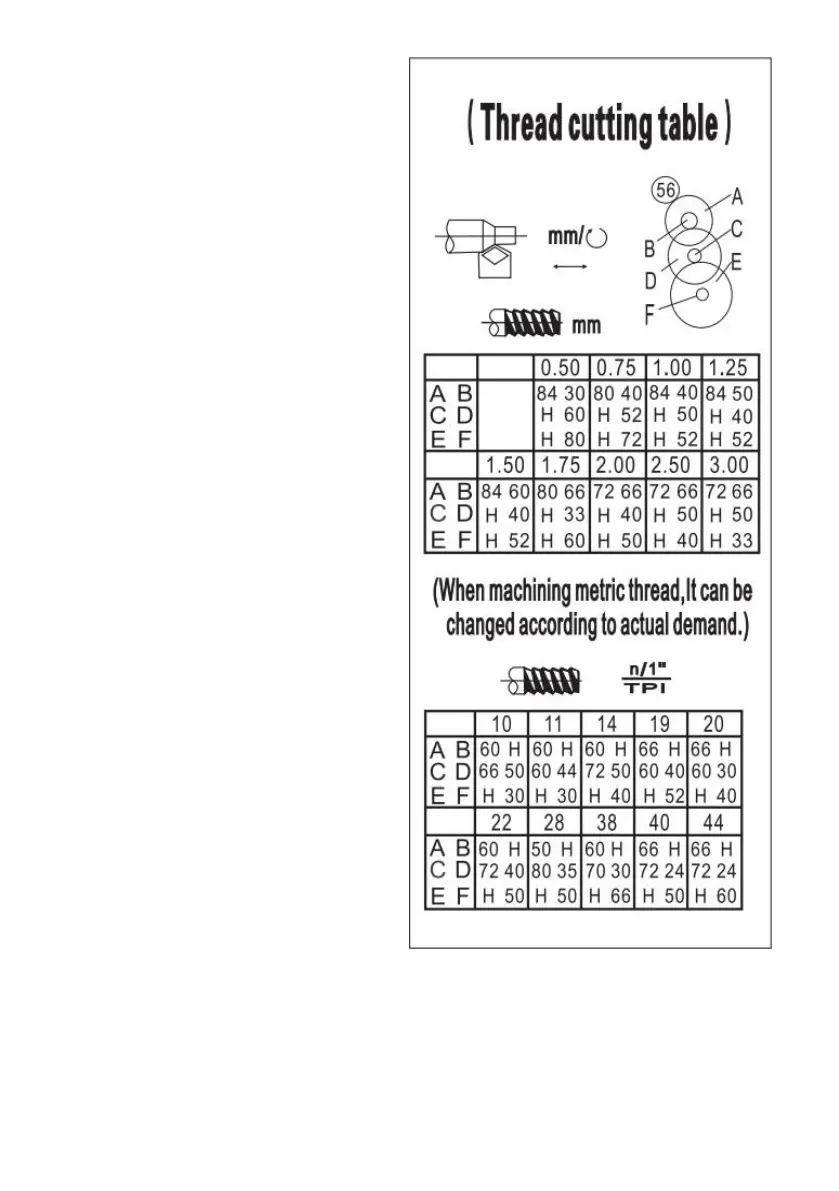

Use the table(A,Fig.18) on the
lathe for selecting the feed speed
or the thread pitch. Adjust the
change gear if there quired feed
or thread pitch that can not be
obtained with the installed gear
set.
 Workpiece Holding and
Drilling: Use the chuck to
hold a workpiece firmly in
place. Use the tailstock to
press a drill into the rotating
workpiece.
 Face Cutting: Use the chuck
to hold a workpiece firmly in
place. Use the tool post to
press a cutter into the face of
the workpiece. The edge of
the cutter must be the same
height as the centre.
 Internal Cutting: Use the
chuck to hold a workpiece
firmly in place. Rotate the tool
post such that the cutter is
placed in the middle of the
front face of the workpiece.
 Bevel Cutting: Use the chuck to hold a workpiece firmly in place.
Adjust the angle of the tool post to cut bevels into the workpiece.
 Thread Cutting: To cut threads, use the chuck to hold a workpiece
firmly in place and engage the half nut. Use the tool post to press a
cutter into the face of the workpiece.
