4.3 Working chamber door
The working chamber door locks the working chamber
and protects the user from injuries during operation.
The working chamber door is operated by electricity.
You can open and close the door with DENTALCNC.
You cannot open the door when the machine is
switched off or while the axes are moving.

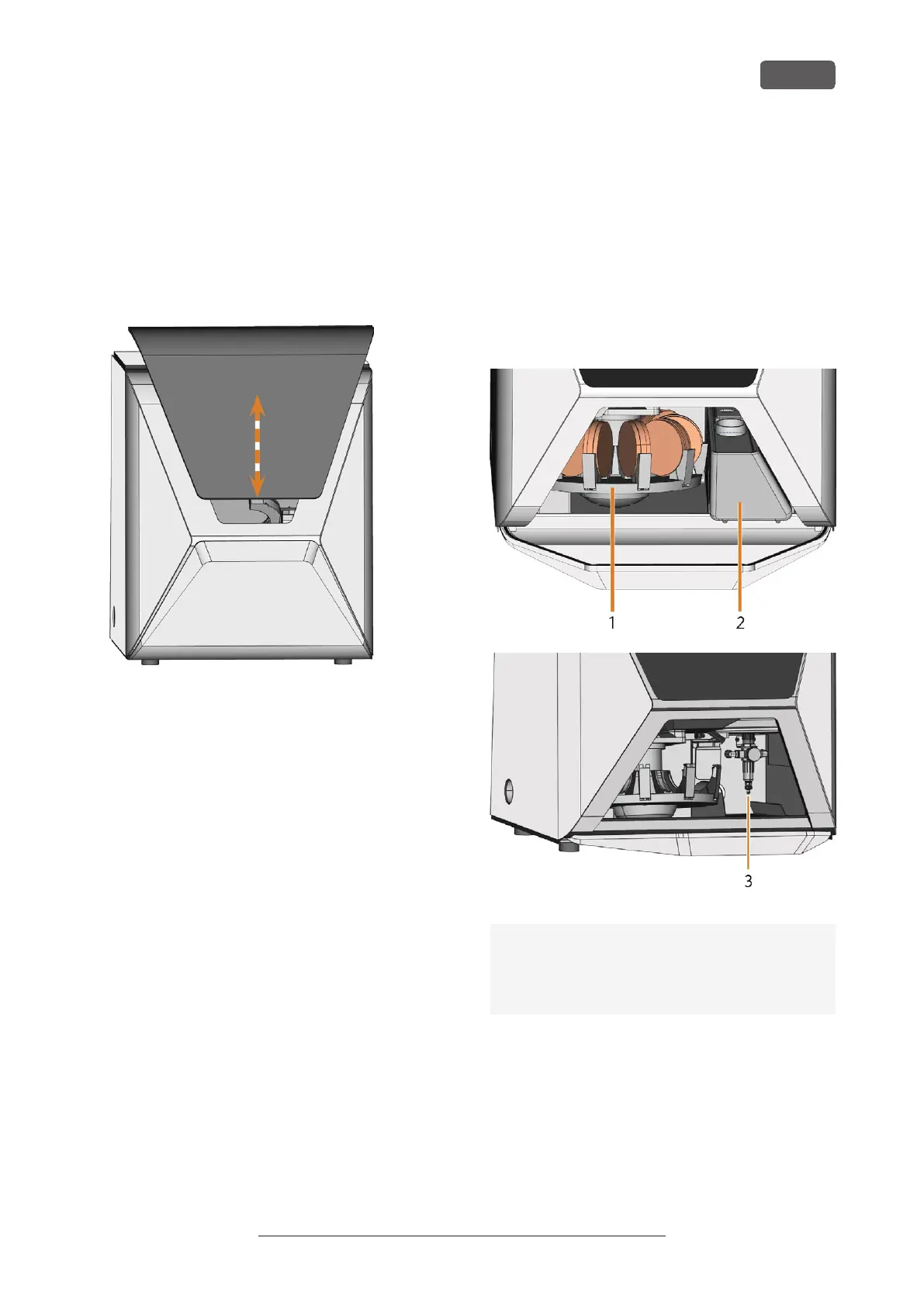

FIG. 3 WORKING CHAMBER DOOR
4.4 Multi-purpose compartment
The multi-purpose compartment contains the
following components:
n
Cooling liquid tank
n
Blank magazine
n
Compressed air regulator
You can open and close the multi-purpose compart-
ment via DENTALCNC .
FIG. 4 THE OPEN MULTI-PURPOSE COMPARTMENT (DISCS NOT INCLUDED)
1. Blank magazine
2. Cooling liquid tank
3. Compressed air regulator
R5 – Machine overview
EN 11
Original Operating Instructions:R5
Version: 12/16/2021
