Chapter 3
3-22
Power Management

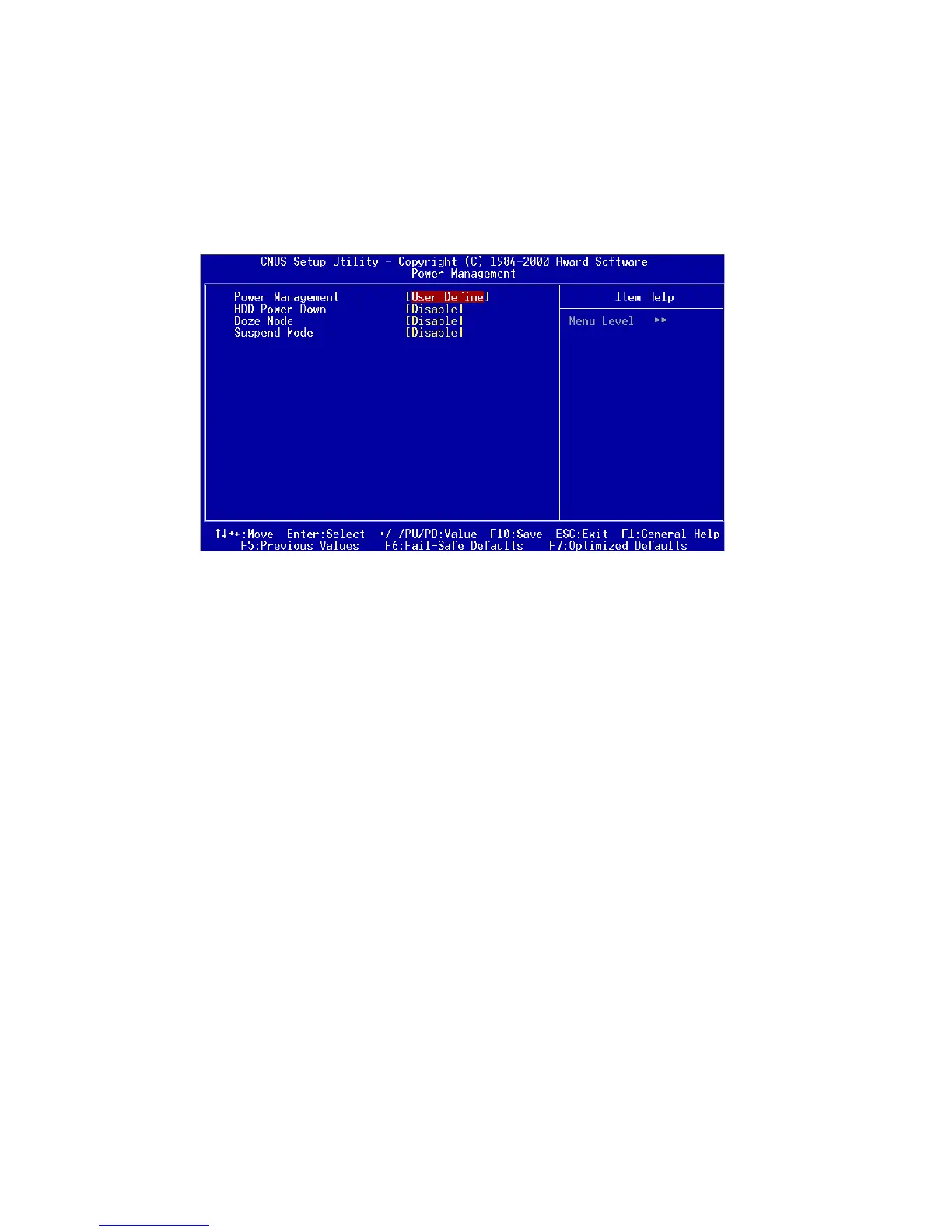

Press <Enter> to enter the sub-menu and the following screen appears:
Power Management
Set the power management function to preset options or user define
parameters. Min Saving - minimal power saving, provide the optimal
performance. Max Saving - minimal power consumption. Settings:
User Define, Min Saving and Max Saving.
HDD Power Down
The HDD power down timer. Settings: Disable, 1 ~ 15Min.
Doze Mode
Set the doze mode. Only available if Power Management function is
set to User Define. Settings: Disable, 1 Min, 2 Min, 4 Min, 6Min,
8Min, 10 Min, 20 Min, 30 Min, 40Min and 1Hour.
Suspend Mode
Set the suspend mode. Only available if Power Management function
is set to User Define. Settings: Disable, 1 Min, 2 Min, 4 Min, 6Min,
8Min, 10 Min, 20 Min, 30 Min, 40Min and 1Hour.
