Chapter 2
2-16

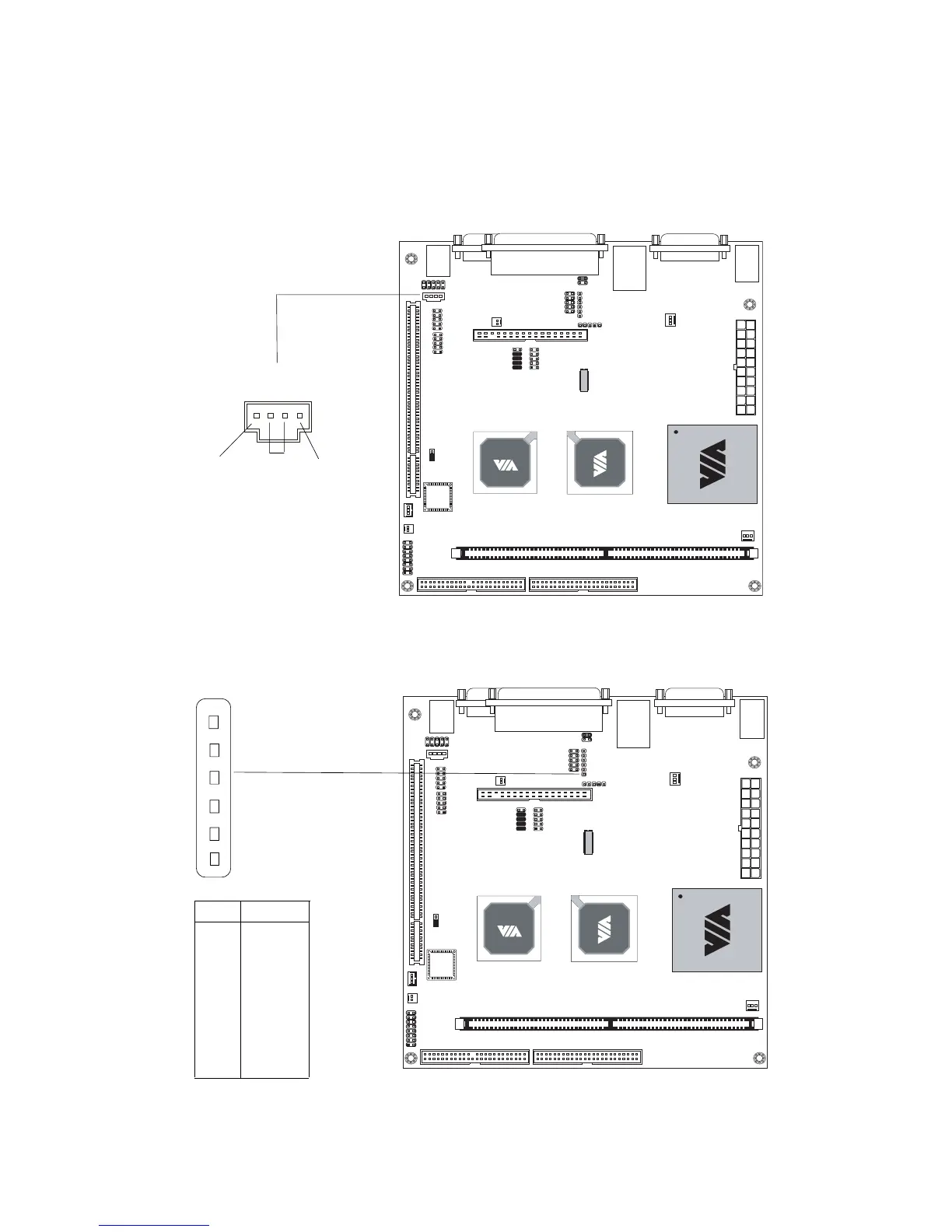

CD-In Connector: CD_IN
This connector is for the CD-ROM audio connector.
CD_IN
CD_GND
CD_R
CD_L
I
2
C Connector: I
2
C
This is for connecting a I
2
C device.
1
6
PIN SIGNAL
1 +3.3V
2 +3.3V
3 EL-ON
4 SMBCK
5 SMBDT
6 GND
