Chapter 5
5-2
Smart 5.1 - Intelligent 6 Channel Audio
Enabling Smart 5.1 Intelligent 6 Channel Audio
Smart5.1 allows the user to output 6 channel audio directly from the audio
jacks on the mainboard, using the traditional line-in and microphone jacks as
output jacks. For it to work properly, both the OS and the software applica-
tion used need to support 6 channel audio. Win98 supports 4 channel only.
Please follow the example A and B to enable the Smart 5.1 funtion, and the
examples are based on Windows XP. Start the settings in Control Panel of
your computer.
Example A

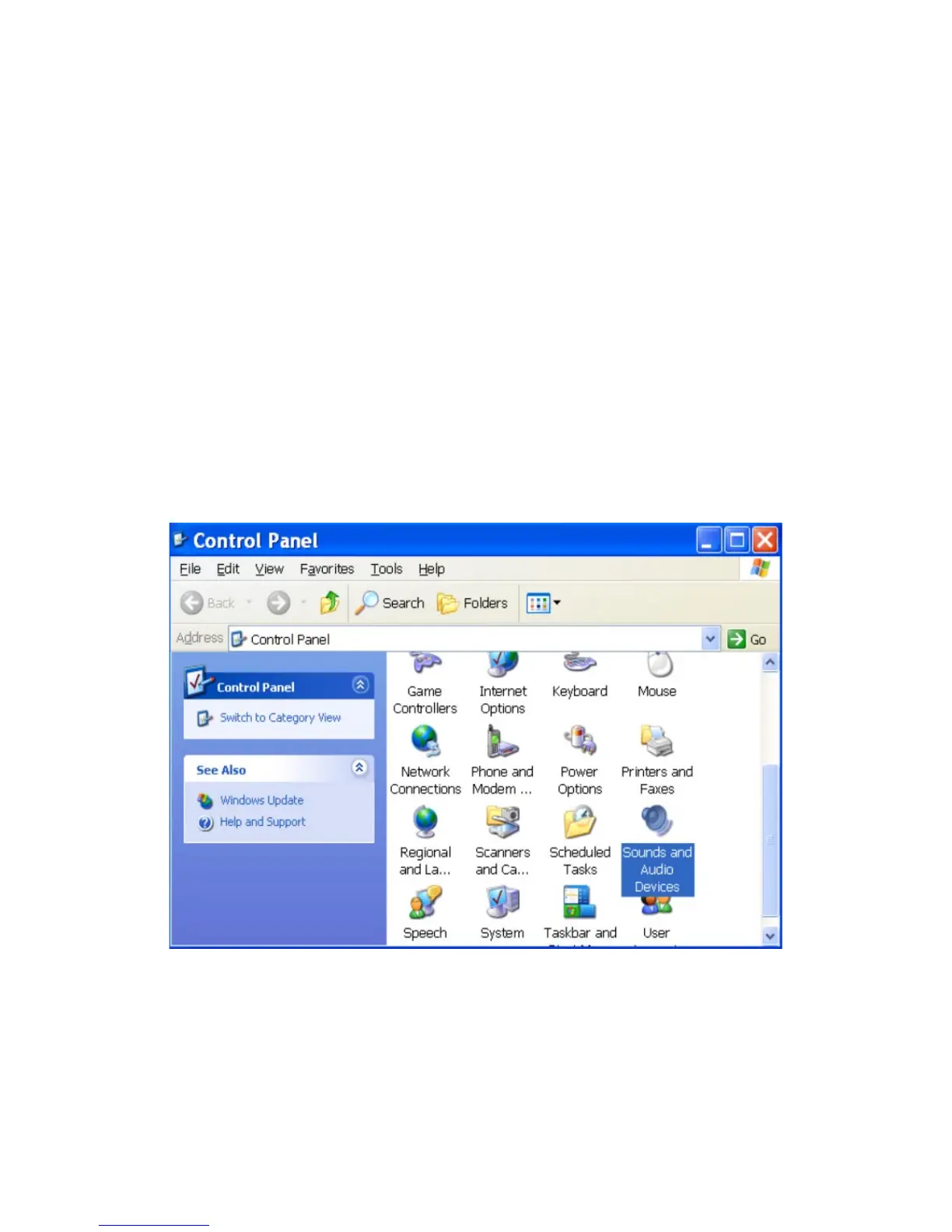

1. Double click [Sounds and Audio Devices] icon in Control Panel.
2. The panel of [Sounds and Audio Devices Properties] appears and select
[Audio] tab. Then press [Advanced] as shown in the picture.
To Next Page
