BIOS Setup
3-15
SuperIO Device

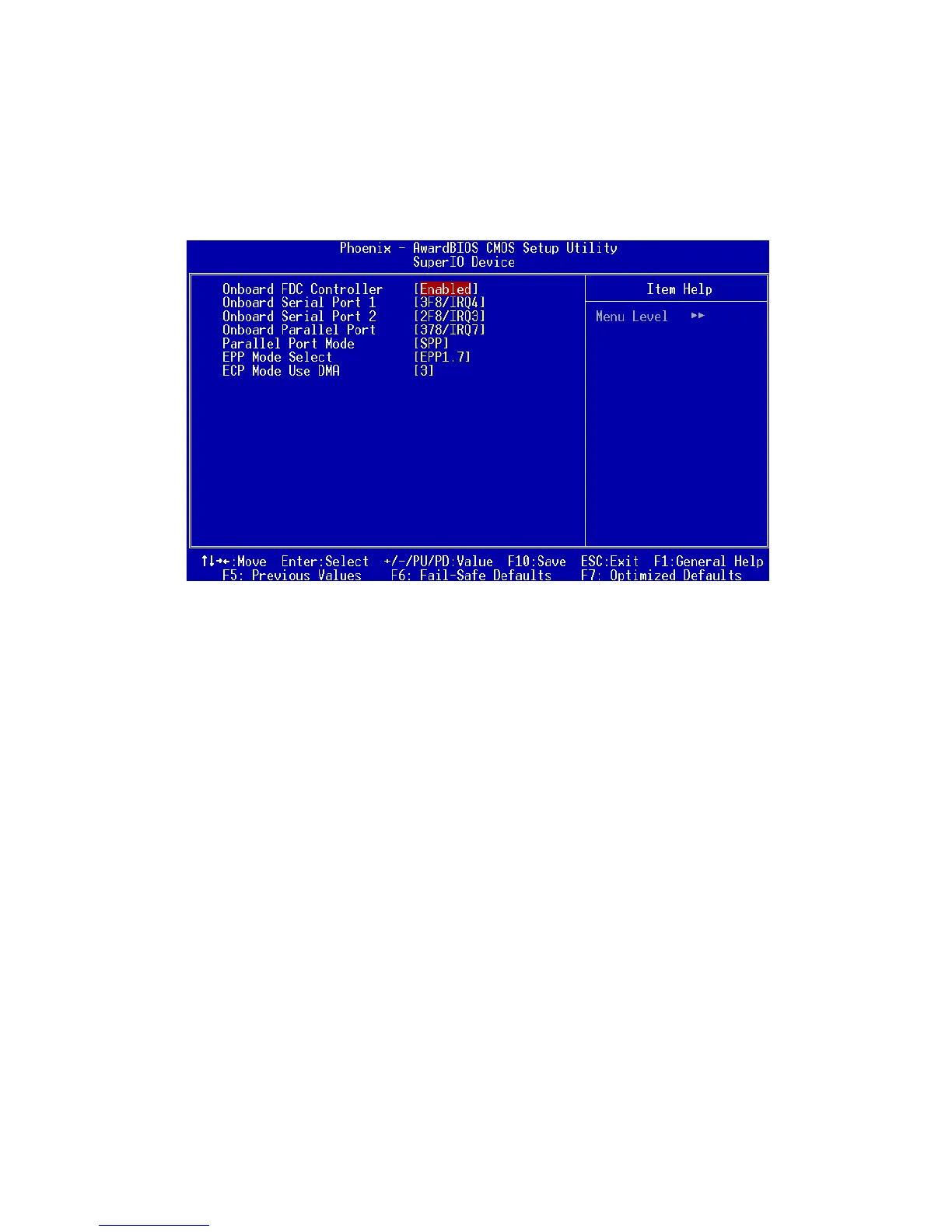

Press <Enter> to enter the sub-menu and the following screen appears:
Onboard FDC Controller
Enable the onboard floppy controller. Select “Enabled” when you have
installed a floppy disk drive. Settings: Enabled and Disabled.
Onboard Serial Port 1/2
Set the base I/O port address and IRQ for the onboard serial port A/serial
port B. Selecting Auto allows BIOS to automatically determine the correct
base I/O port address. Settings: Disabled, 3F8/IRQ4, 2F8/IRQ3, 3E8/
IRQ4, 2E8/IRQ3 and Auto.
Onboard Parallel Port
This specifies the I/O port address and IRQ of the onboard parallel port.
Settings: 378/IRQ7, 278/IRQ5, 3BC/IRQ7 and Disabled.
Parallel Port Mode
Set the parallel port mode. To operate the onboard parallel port as Stand-
ard Parallel Port, choose “SPP.” To operate the onboard parallel port in
the EPP mode, choose “EPP.” By choosing “ECP”, the onboard parallel
port will operate in ECP mode. Choosing “ECP + EPP” will allow the
onboard parallel port to support both the ECP and EPP modes simulta-
neously. Settings are:
