9
(9) V/Ω.input terminal: The red one positive input terminal for voltage, resistance, diode,
capacitance, frequency and temperature measurements.lt is also COM terminal for GND
input.The black one is negative input terminal.
(10) Carrying belt.

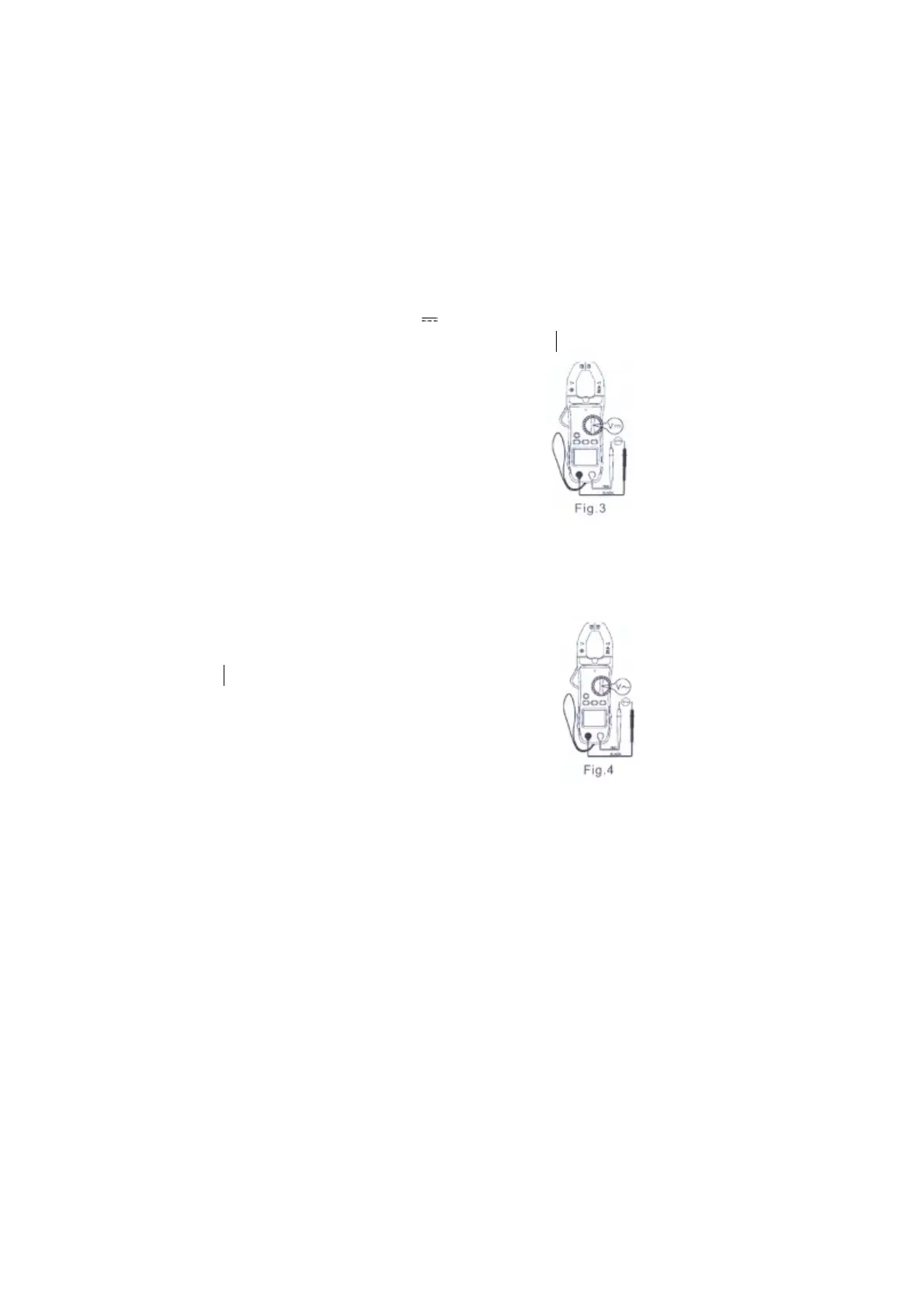

4.2. DCV MEASUREMENT
(I) Turn the rotary function switch to V position. Plug the red test lead in to
"VΩ."terminal and the black test lead into COM terminal.
(2)Touch the test leads to the test points.
The LCD will display the testing voltage
and its polarity on the LCD(fig.3).
NOTE:
(I) The input voltage CAN NOT exceed
the rated input. Otherwise, the meter
maybe damaged.
(2) When testing high voltage circuit,
to avoid electric shock,
DO NOT touch the circuit by hands or bodies.
(3) Disconnect test leads from the testing circuit when all tests
are finished.
4.3. ACV MEASUREMENT
(I) Turn the rotary function switch to V~ position.
Plug the red
test lead into "VΩ" terminal and the black
test lead into COM terminal.
(2) Touch the test leads to the test points.
Read measurement values from the LCD.
(3) Press Hz/DUTY key to display frequency
and duty ratio value.(fig.4)
NOTE:
(I) Before measurement, there are some remaining digits in each
range. It will not affect measurement accuracy.
(2) The input voltage CAN NOT exceed the rated input.
Otherwise, the meter maybe damaged.
(3)When testing high voltage circuit, to avoid electric shock,
DO NOT touch the circuit by hands or bodies.
(4) Disconnect test leads from the testing circuit when alltests
arefinished.
