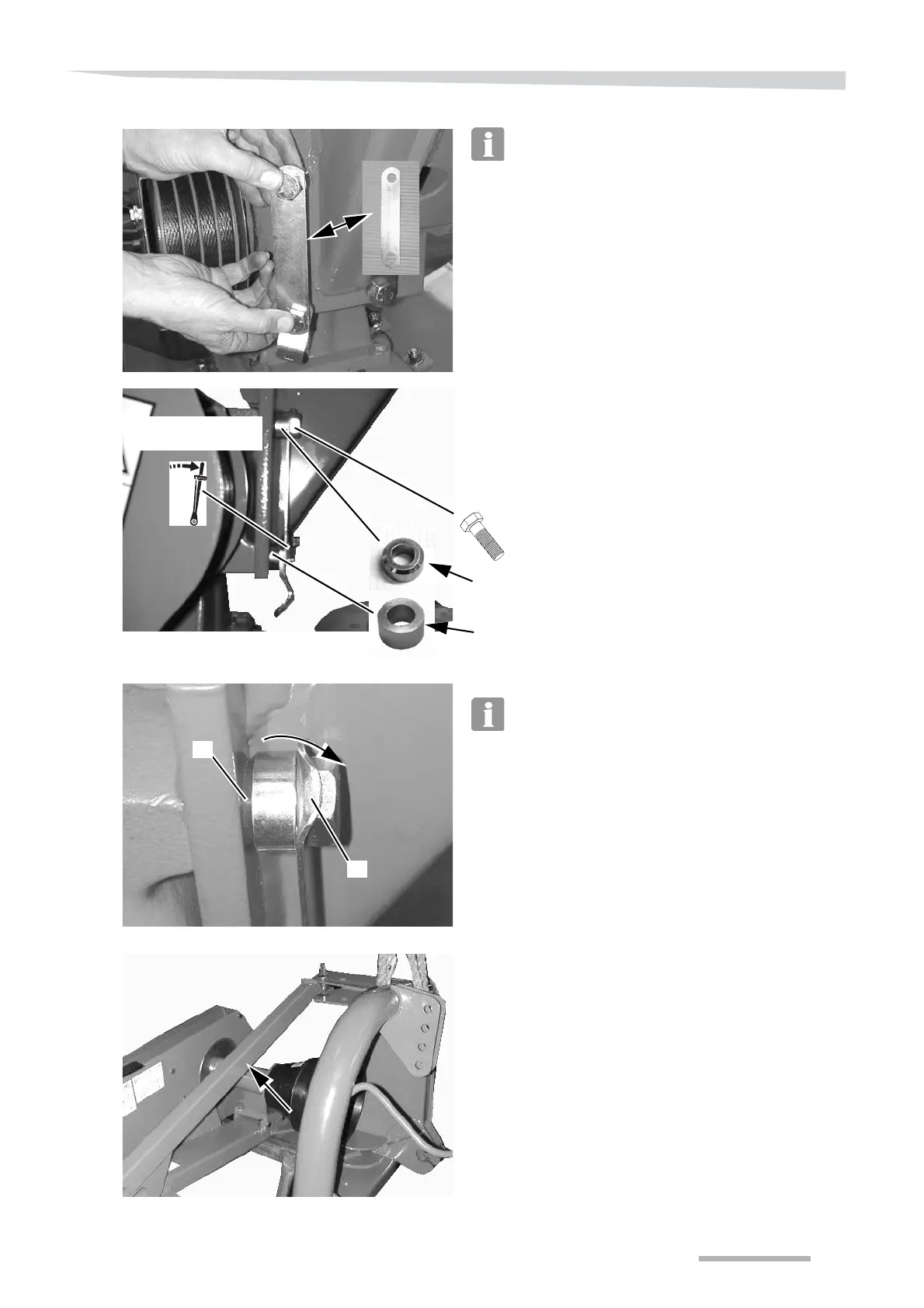

Assembly
7
Please note that the edge shown must turn towards
the support
.

Do not forget to mount the bracket .

Knock the lock plate “B” down over the bolts .
Please note the bevelled edge “A”.

Fit the brace as shown .
M16 x 55 (4 pcs.)
ø30 x ø16,5 x 15
ø30 x ø16,5 x 10
197 Nm +/- 5
145 ft.lbs. +/- 4
B
A
