Assembly
8

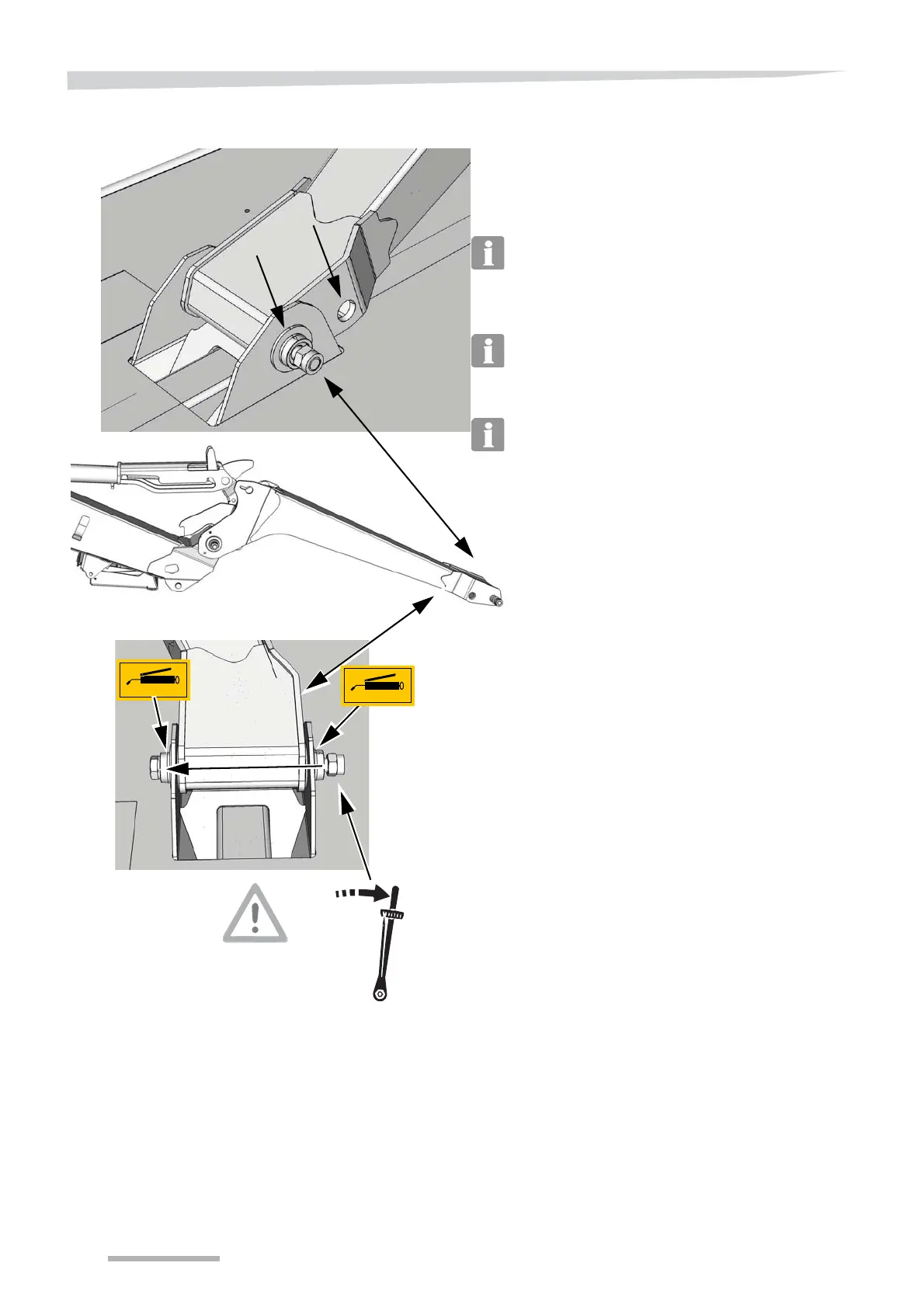

Fit the arm on the cutting unit.
The machine's cutting unit can be moved 130
mm so that the attachment point is moved as
shown.
When the attachment point is moved, the PTO
shaft is shortened.
See the Instruction manual for further instruc-
tions.
Apply oil or grease to the bushings before
fitting.
Tighten the bolt to a torque of 650 Nm (480 ft/
lb).
