15
>

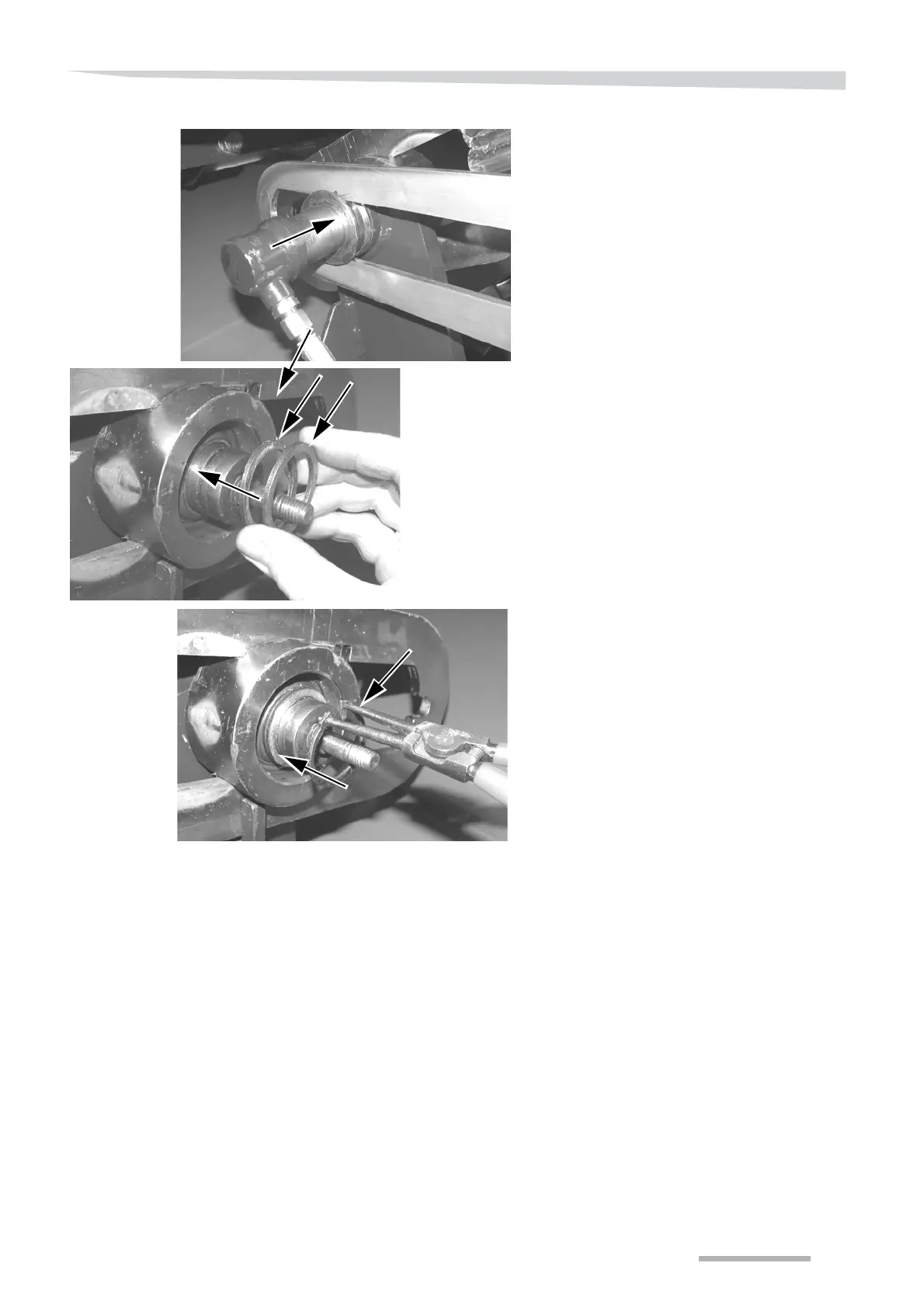

Før hydraulikcylinderen igennem begge bøs som
vist. Monter skive og låsering.
>
Lead the hydraulic cylinder through both bushes as
shown. Mount the washer and circlips.
