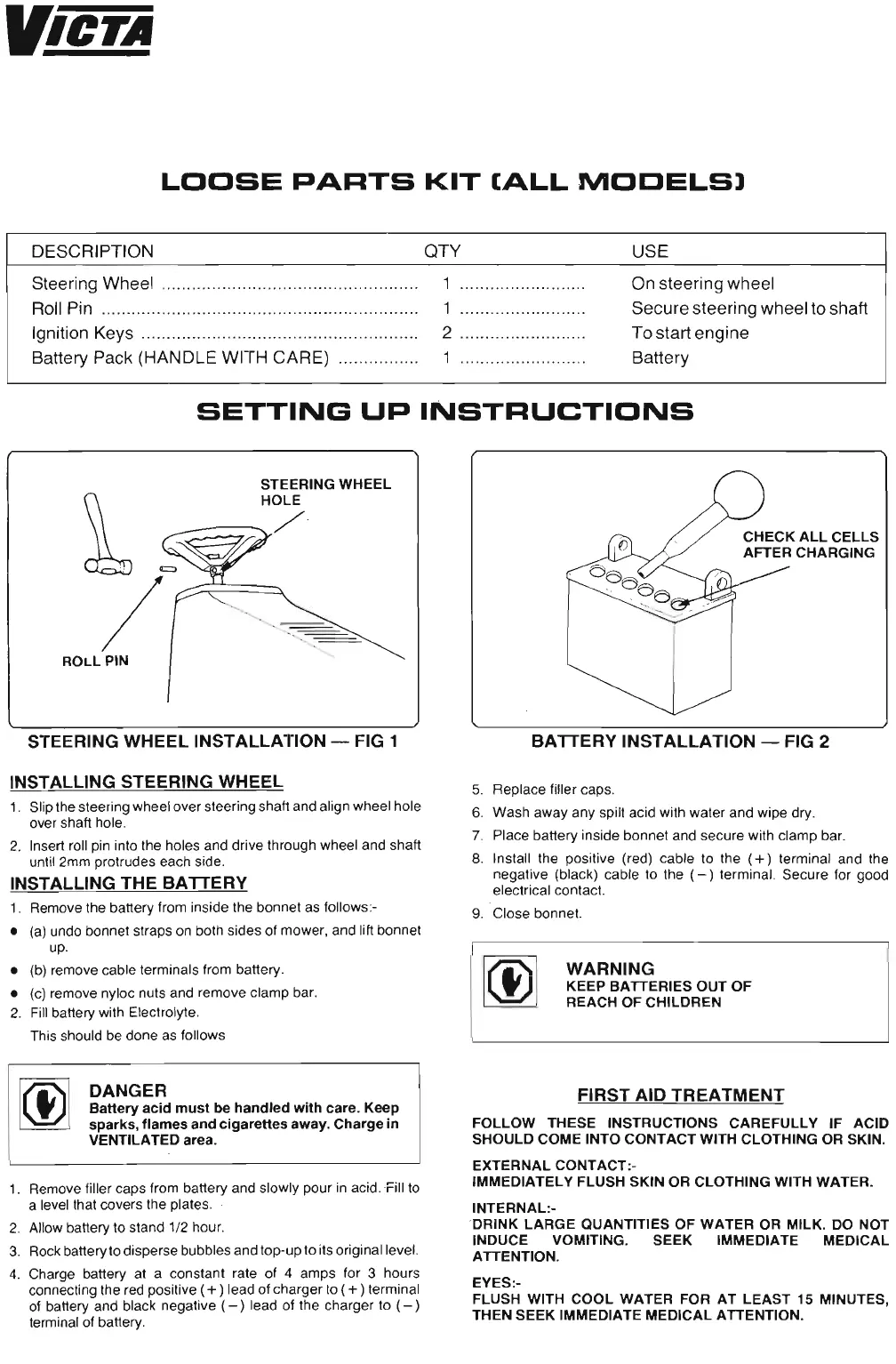

"-,eTA
LOOSE
PARTS
KIT
[ALL
MODELS]
DESCRIPTION
QTY
USE
Steering Wheel
Roll Pin
Ignition Keys
Battery Pack (HANDLE WITH CARE)
.
.
.
..
1
1
2
1
..
.
.
.
On steering wheel
Secure steering wheel to shaft
To start engine
Battery
SETTING
UP
INSTRUCTIONS
STEERING
WHEEL
HOLE
-:
ROLL
PIN
STEERING
WHEEL
INSTALLATION
- FIG 1
INSTALLING STEERING
WHEEL
1. Slip the steering wheel over steering shaft and align wheel hole
over shaft hole.
2. Insert roll pin into the holes and drive through wheel and shaft
until 2mm protrudes each side.
INSTALLING
THE
BATTERY
1. Remove the battery from inside the bonnet as follows :-
• (a) undo bonnet straps on both sides of mower, and lift bonnet
up.
• (b) remove cable terminals from battery .
• (c) remove nyloc nuts and remove clamp bar.
2. Fill battery with Electrolyte.
This should be done as follows
DANGER
Battery
acid
must
be
handled
with
care.
Keep
sparks,
flames
and
cigarettes
away.
Charge
in
VENTILATED
area.
1. Remove filler caps from battery and slowly pour in acid. Fill to
a level that covers the plates .
2. Allow battery to stand 1/2 hour.
3. Rock battery to disperse bubbles and top-up to its original level.
4. Charge battery at a constant rate of 4 amps for 3 hours
connecting the red positive (
+ ) lead of charger to ( + ) termina l
of battery and black negative (
-)
lead of the charger to
(-)
terminal of battery .
CHECK
ALL
CELLS
AFTER
CHARGING
BATTERY
INSTALLATION
- FIG 2
5. Replace filler caps.
6. Wash away any spilt acid with water and wipe dry.
7. Place battery inside bonnet and secure with clamp bar.
8. Install the positive (red) cable to the
(+)
terminal and the
negative (black) cable to the
(-
) terminal. Secure for good
electrical contact.
9. Close bonnet.
WARNING
KEEP
BATTERIES
OUT OF
REACH OF
CHILDREN
FIRST
AID
TREATMENT
FOLLOW
THESE
INSTRUCTIONS
CAREFULLY
IF
ACID
SHOULD
COME
INTO
CONTACT
WITH
CLOTHING
OR SKIN.
EXTERNAL
CONTACT
:-
IMMEDIATELY
FLUSH
SKIN
OR
CLOTHING
WITH
WATER.
INTERNAL:-
'DRINK
LARGE
QUANTITIES
OF
WATER
OR
MILK
. DO NOT
INDUCE VOMITING.
SEEK
IMMEDIATE
MEDICAL
ATTENTION.
EYES:-
FLUSH
WITH
COOL
WATER
FOR AT
LEAST
15 MINUTES,
THEN
SEEK
IMMEDIATE
MEDICAL
ATTENTION.
