Victa PRO Series User Manual

V!t:TA

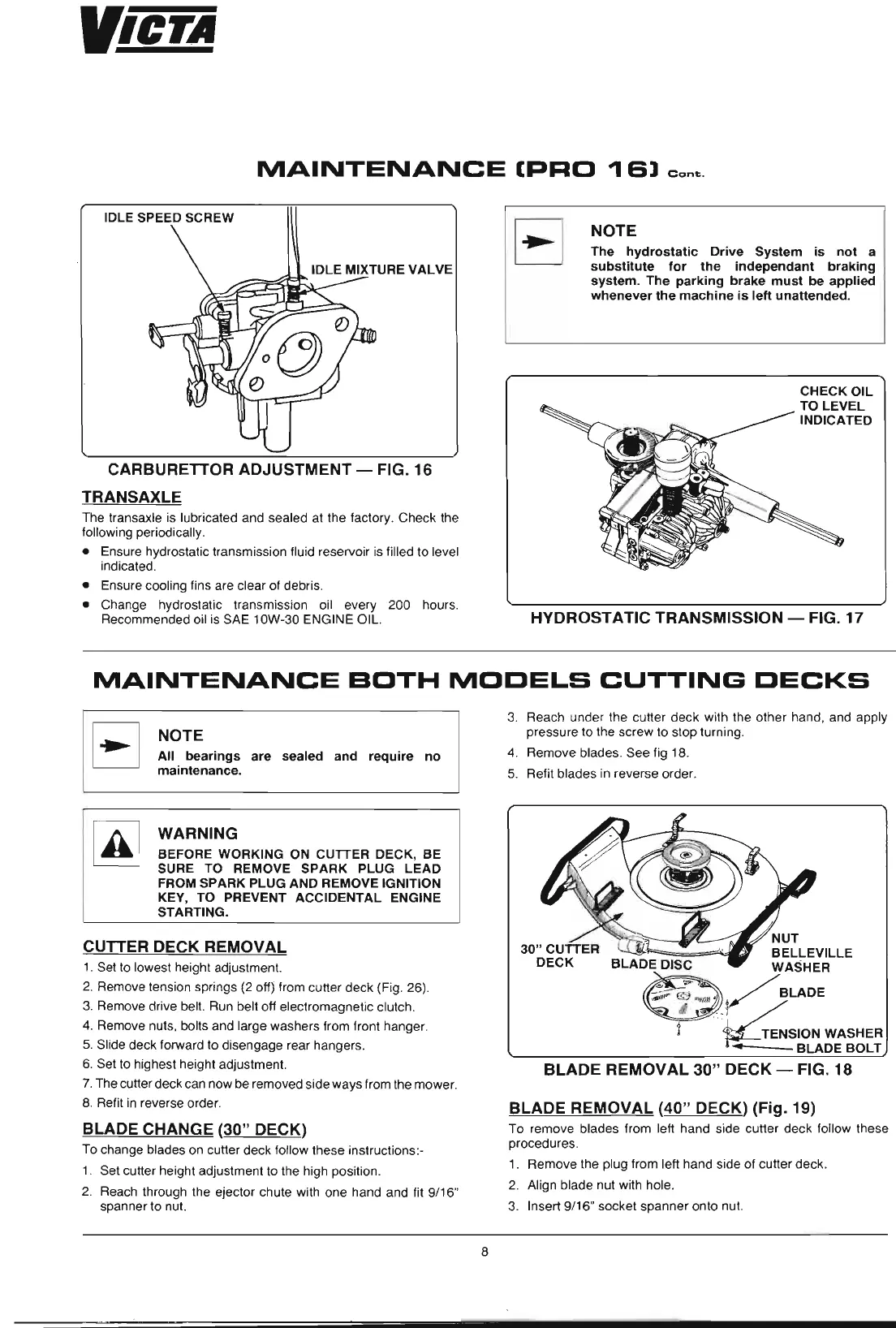

MAINTENANCE [PRO 16] Cant.
IDLE SPEED SCREW
NOTE
The hydrostatic Drive System is not a
substitute for the independant braking
system. The parking brake must be applied
whenever the machine is left unattended.
CHECK OIL
TO
LEVEL
INDICATED
CARBURETTOR ADJUSTMENT - FIG. 16
TRANSAXLE
The transaxle is lubricated and sealed at the factory. Check the
following periodically.
• Ensure hydrostatic transmission fluid reservoir is filled to level
indicated .
• Ensure cooling fins are clear of debr is.
• Change hydrostatic transmission oil every 200 hours .
Recommended oil is SAE 10W-30 ENGINE OIL.
HYDROSTATIC TRANSMISSION - FIG. 17
MAINTENANCE BOTH MODELS CUTTING DECKS
NOTE
All bearings are sealed and require no
maintenance.
WARNING
BEFORE WORKING ON CUTTER DECK, BE
SURE TO REMOVE
SPARK PLUG LEAD
FROM SPARK PLUG AND REMOVE IGNITION
KEY, TO PREVENT ACCIDENTAL ENGINE
STARTING.
CUTTER DECK REMOVAL
1. Set to lowest height adjustment.
2. Remove tension springs (2 off) from cutter deck (Fig. 26).
3. Remove drive belt. Run belt off electromagnetic clutch .
4. Remove nuts, bolts and large washers from front hanger.
5. Slide deck forward to disengage rear hangers.
6. Set to highest height adjustment.
7. The cutter deck can now be removed side ways from the mower.
8. Refit in reverse order .
BLADE CHANGE (30" DECK)
To change blades on cutter deck follow these instructions:-
1. Set cutter height adjustment to the high position.
2. Reach through the ejector chute with one hand and fit 9/16 "
spanner to nut.
3. Reach under the cutter deck with the other hand , and apply
pressure to the screw to stop turning.
4. Remove blades . See fig 18.
5. Refit blades in reverse order.
NUT
BELLEVILLE
BLADE DISC WASHER
;;,;,~ ";; .:"' '' 0;/ BLADE
~ t " :~SIONWASHER
-4 BLADE BOLT
BLADE REMOVAL 30" DECK - FIG. 18
BLADE REMOVAL (40" DECK) (Fig. 19)
To remove blades from left hand side cutter deck follow these
procedures.
1. Remove the plug from left hand side of cutter deck.
2. Align blade nut with hole.
3. Insert 9/16" socket spanner onto nut.
8

Victa PRO Series Specifications

General

Engine Type	4-Stroke
Engine	Briggs & Stratton
Drive Type	Self Propelled
Grass Collection	Yes
Warranty	2 years
Cutting Height	1.25 - 3.75 inches
