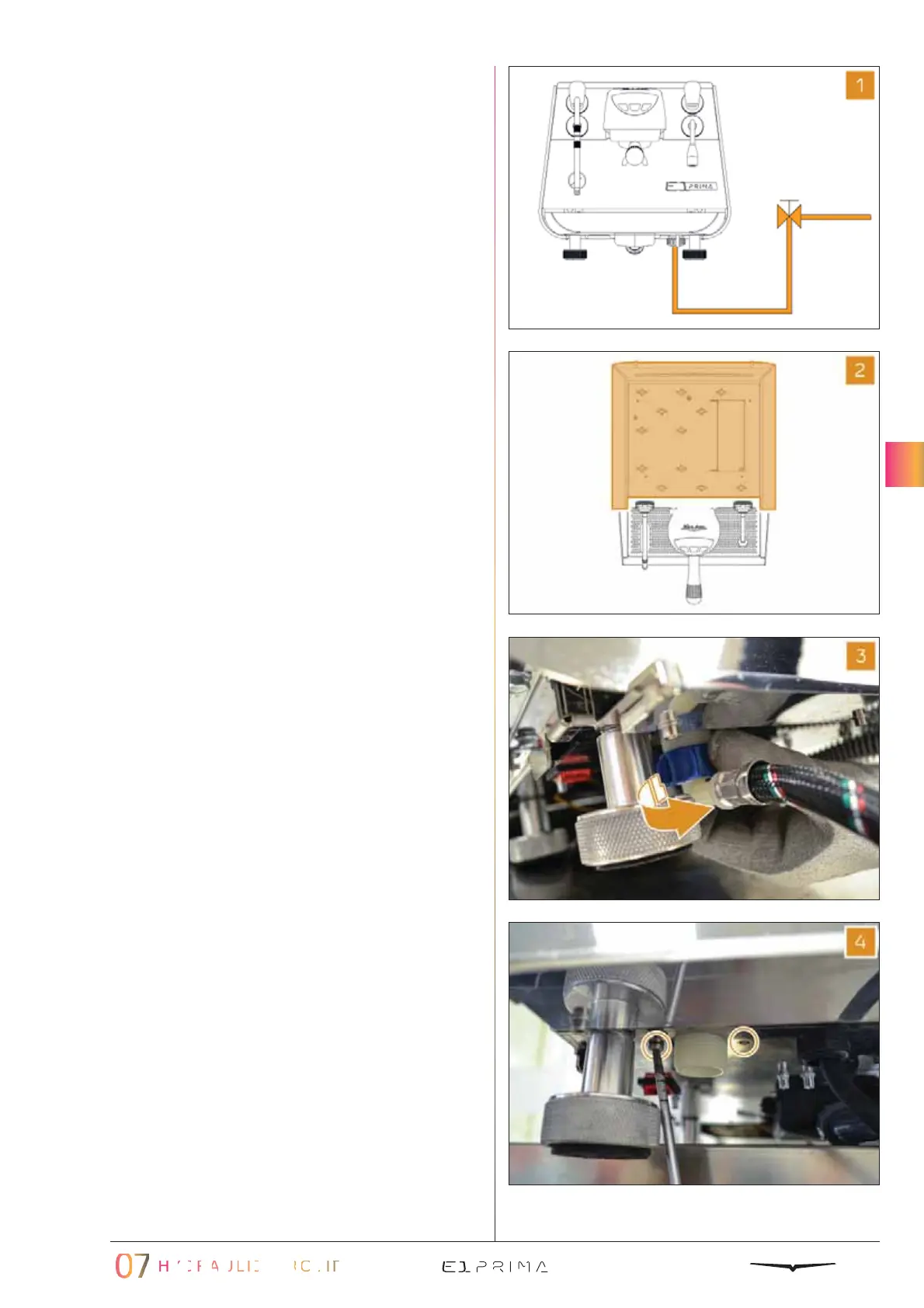

7.3.2 REMOVAL OF
THE WATER STOP VALVE
To remove the water stop valve, proceed as
it follows:
1
Close the water mains.
2
Remove the cup holder surface, the side
panels, the rear panel and the rear lower
panel as described in Chapter 3.
3
Lift the machine from the back part and
remove the inlet pipe.
4
Utilizing a Philips screwdriver, unscrew the
two screws that fix the water stop valve to
the frame.
10
10
12
12
11
11
13
13
07
