MAINTENANCE
Fuses
Use only recommended amperage fuses to avoid damage to the electrical system.
Caution

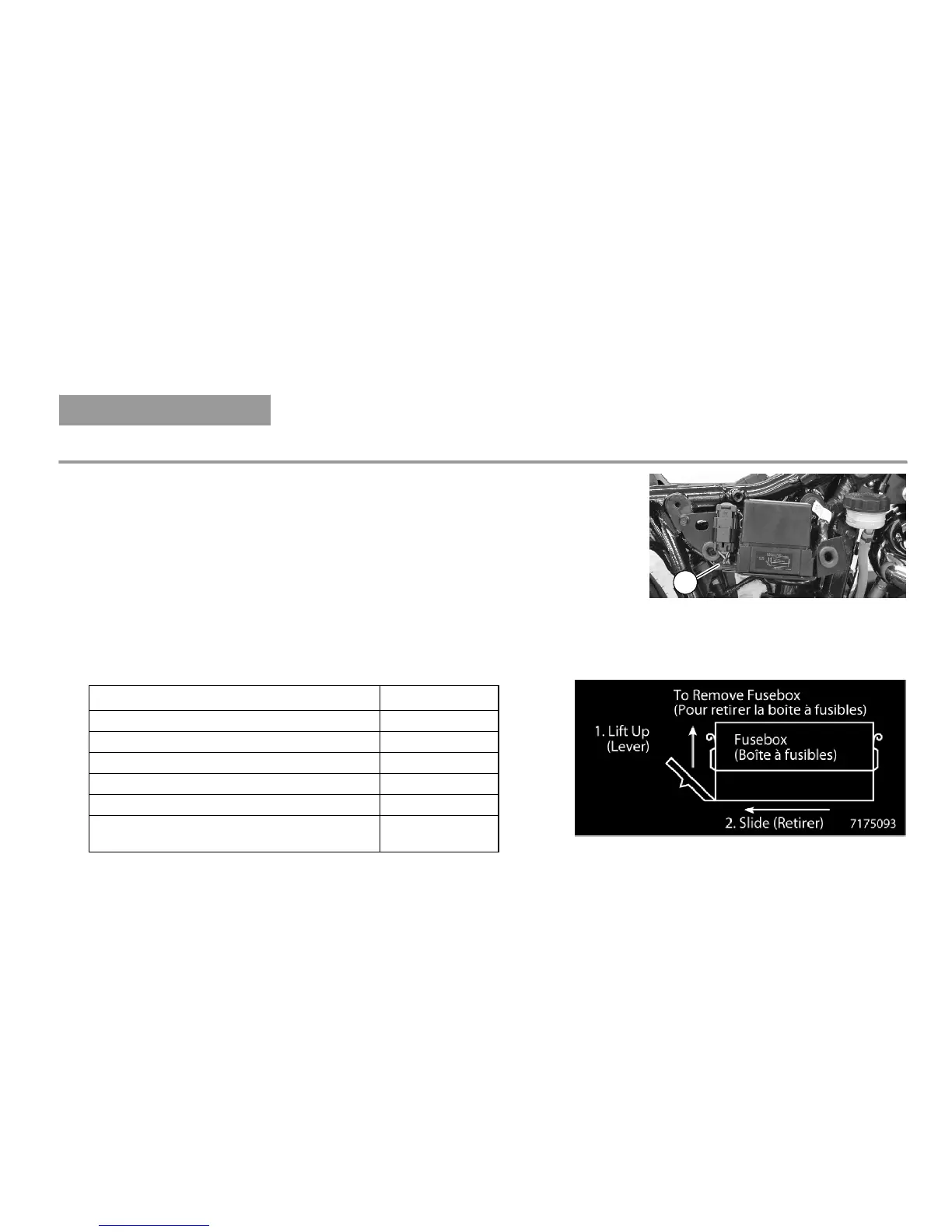

1. Remove the right side cover. Release the fuse box from the bracket by
lifting the tab (1) and sliding the fuse box rearward (see diagram below
right.)
2. Release the tabs on each side of the fuse box cover and remove the
cover.
3. Remove the damaged fuse from the fuse box and seat the new fuse
firmly in its place. A spare 15 amp fuse is located in the fuse box.
4. Reinstall the fuse box cover with the double cutout toward the front of
the motorcycle. Reinstall the fuse box to the bracket.
5. Reinstall the side cover.
Fuse Application Fuse Size
Engine / ECM 15 amp
Fuel Pump 10 amp
Headlamp / Brake Lamp 15 amp
Tail Lamp, Flashers, Indicator Lamp, Horn 15 amp
Ignition / Gauges 15 amp
Accessory Fuse (for emergency use)
(Bike will operate without fuse)
15 amp
1
