MAINTENANCE
Headlamp Adjustment
The headlamp high beam should shine straight
ahead of the motorcycle. The top of headlamp
high beam should be just below the center of
the lamp at a distance of 25 feet (7.62 m). The
low beam pattern spreads farther right of center
than the high beam (U.S. & Canada).
1. Check and adjust the tire pressure (page
127).
2. Verify rear suspension ride height
measurement is at specification (see page
101) before adjusting headlight.
3. Straddle the motorcycle in an upright
position and sit in the operator’s seat.
4. Set the ignition switch to the ON position
and set the headlamp to High beam. Check
the headlamp for correct aim.

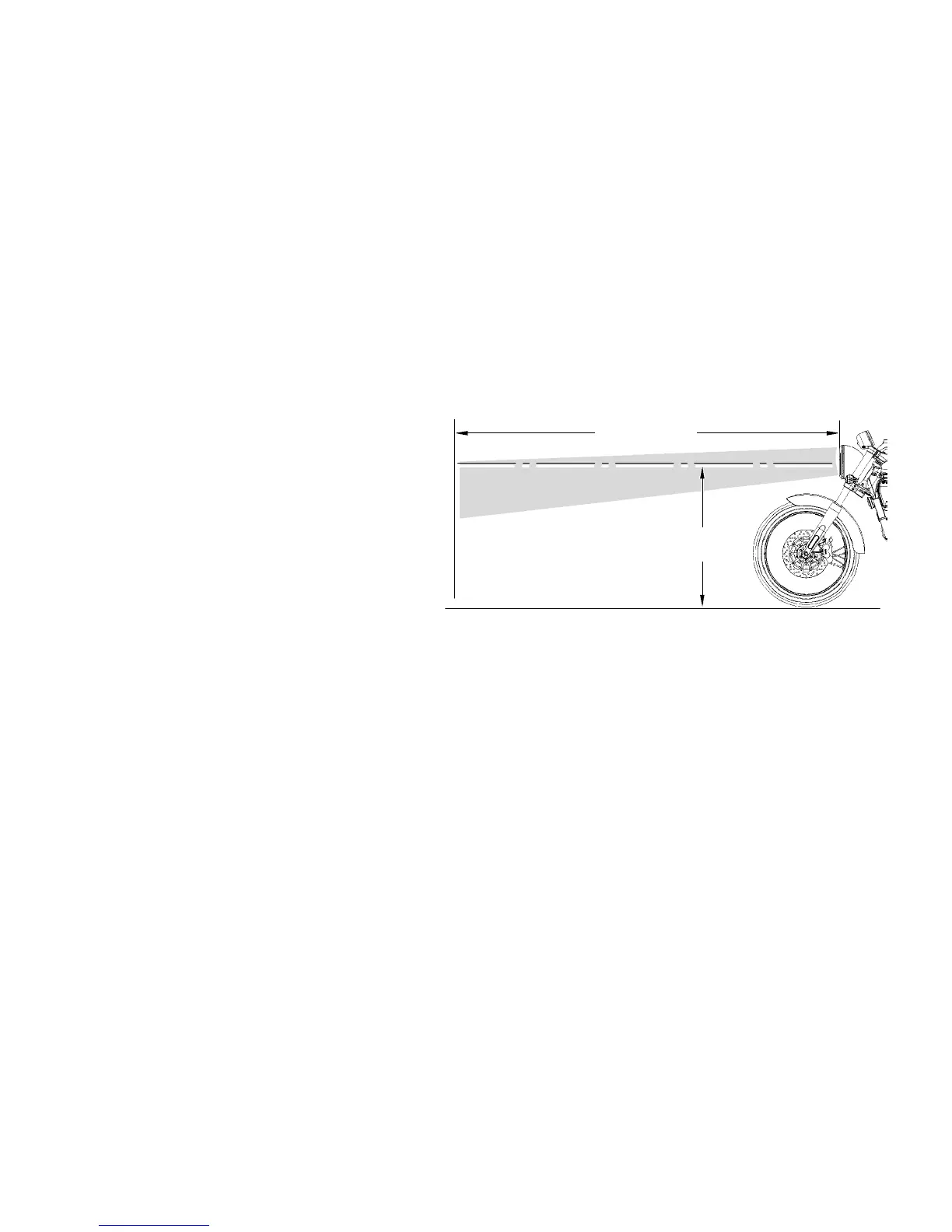

25 feet (7.62 m)
Center of Headlamp
High Beam
