58
PRE-OPERATION CHECK
Check Brakes
Rear Brake Pedal Adjustment
Press and release t he rear brake pedal. It should move freely and
smoothly and should return to its rest position quickly when you
release it. You should feel a firm resistance in the pedal within the
first 3/8 inch (8 mm) of pedal travel.
If the brake pedal t ravels too far before beginning to engage the
brake, see the VICTORY Service Manual, or contact an authorized
VICTORY dealer for service.
The brake pedal s hould be adjusted so that i n the relaxed position,
with the master cylinder piston positioned against internal stop, there
is a 2-5 mm gap between the brake pedal stop and the foot peg
mount. Make brake pedal adjustments as necessary. See page 121.

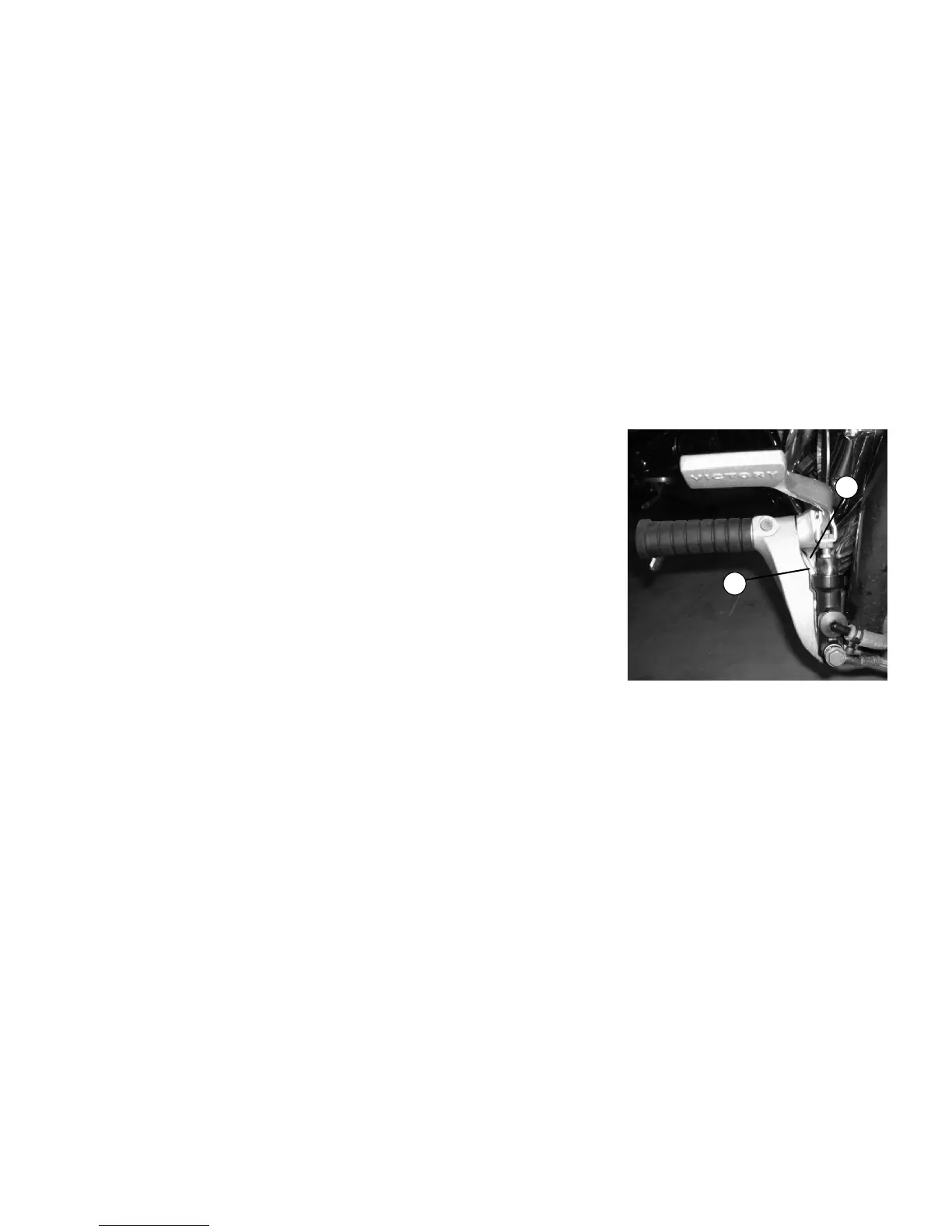

2-5 mm gap
1
2
1. Brake pedal stop
2. Footpeg mount
