Victory STAR - Option 1: Open Cupboard Ducting System; Electrical Safety and Testing

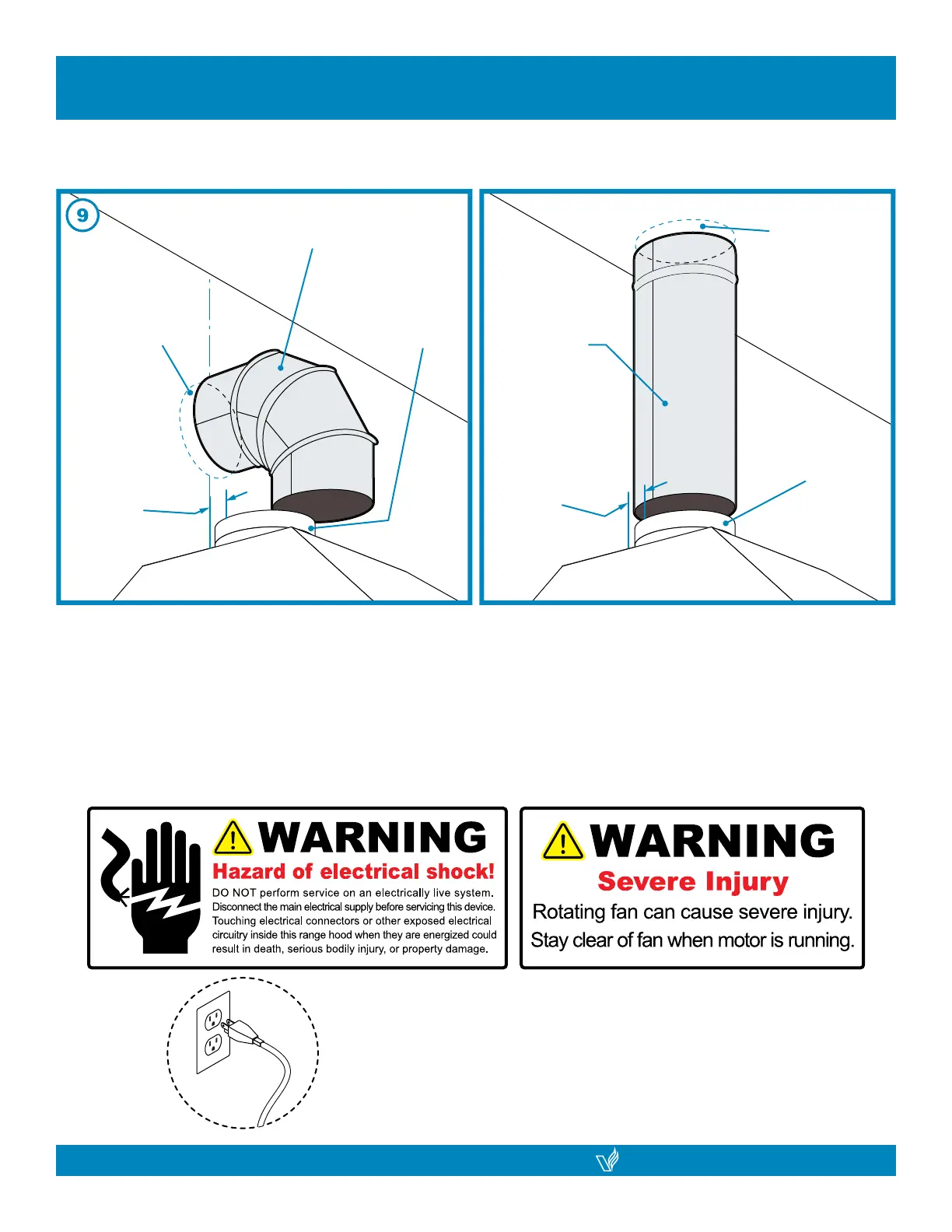

8”- Ø
Elbow Duct
8”- Ø
Transition
Cut out hole
in wall to
accommodate
elbow duct.
Distance from
wall to transition
circumference
edge: 1”
8”- Ø Duct
8”- Ø
Transition
Cut out hole
in ceiling for
exhaust duct
Distance from
wall to transition
circumference
edge: 1”
(9) When installing an elbow duct, make sure it is 8” round. Use aluminum tape to make all joints secure and
air tight. Use 8” round steel pipe (follow building codes in your area) to connect the exhaust on the hood to the
ductwork above. Use aluminum tape to make all joints secure and air tight.
Option 1: Open Cupboard Ducting system
SAFETY WARNING: Risk of electrical shock. this range hood must be properly grounded. Make sure this
is done by qualied electrician in accordance with all applicable national and local electrical codes. Before
connecting wires, switch power o󰀨 at service panel and lock service panel to prevent power from being
switched on accidentally.
Plug in and check the fan motor and lights are
functioning. Be alert of any electrical hazards.
