Option 2: Closed Box
Installation for a closed box enclosure is the same as
open cupboard with a few exceptions.
Due to having no access inside the box (other than
the bottom opening) mounting brackets will NOT be
required.

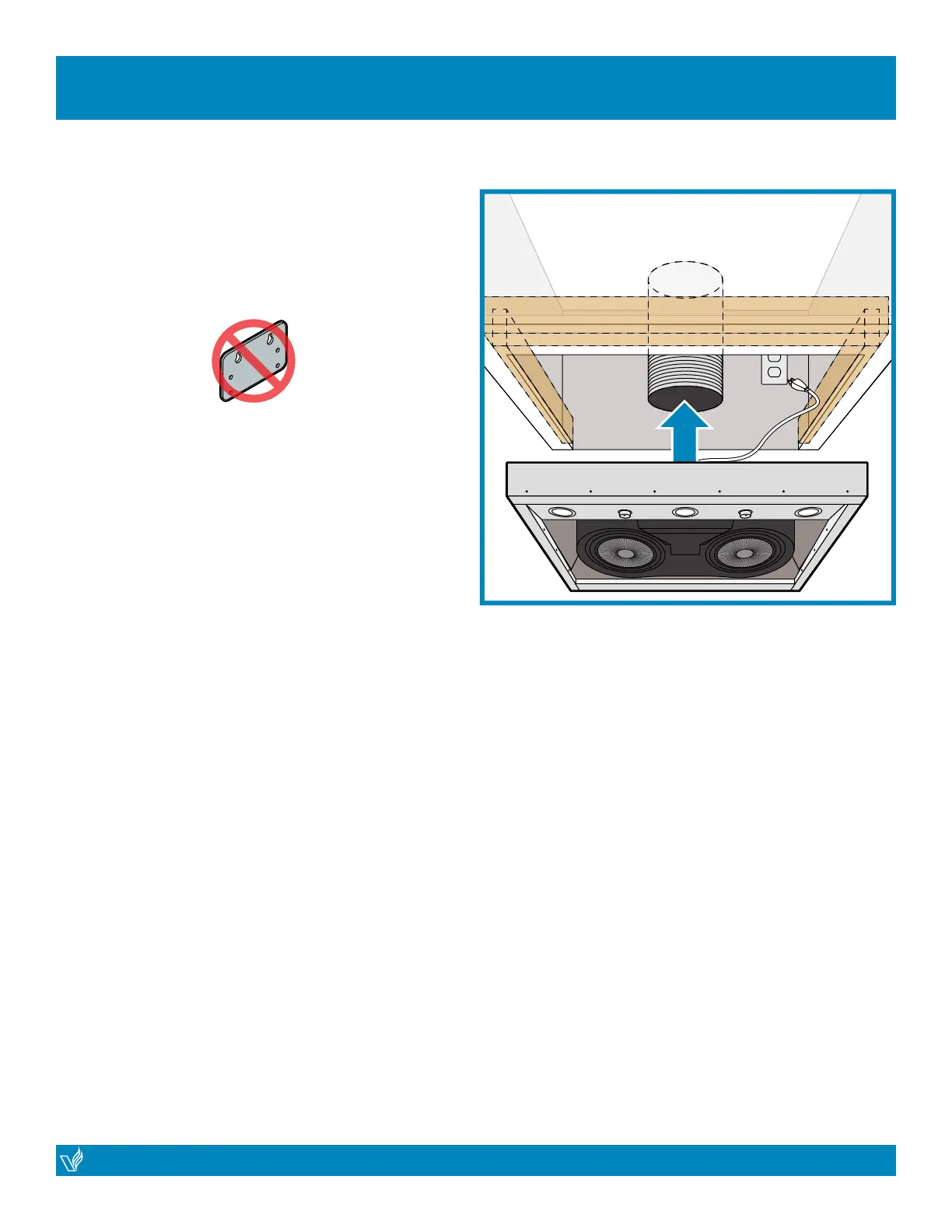

Flex-duct
Ducting system
120V
Outlet
Prior to raising and inserting the range hood for
installation, you must:
1. Install your preferred duct system (elbow or
straight duct)
2. Install your electrical outlet for power
3. Attach a ex-duct to manage the attachment
between duct system and range hood transition
4. Plug in your range hood
