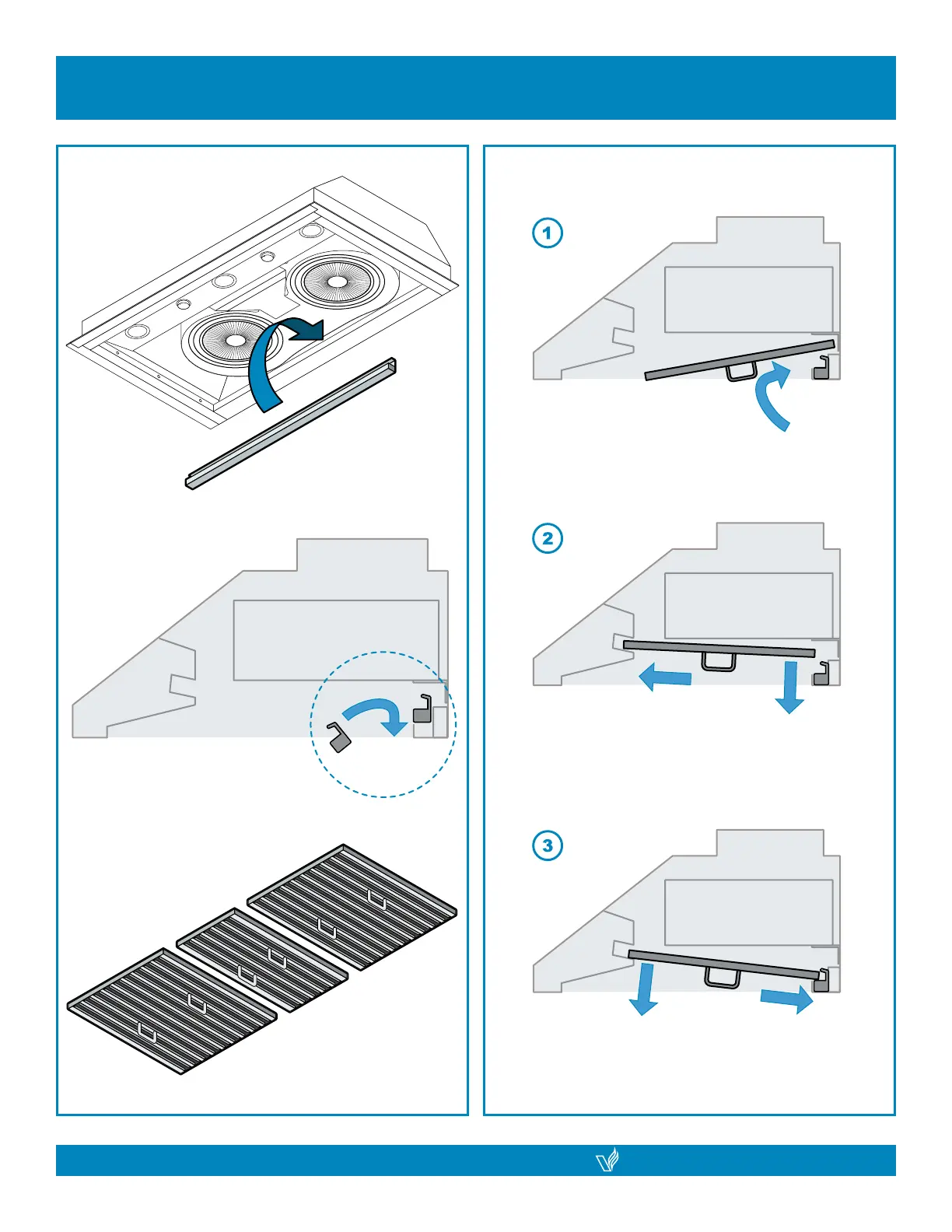

Victory STAR - Installation (Continued); Grease Tunnel and Baffle Filter Installation

SIDE VIEW
BOTTOM
VIEW
Grease Tunnel
Place Grease Tunnel into the
hood opening and insert into
slot holding.
Ba󰀪e Filters
Filters will
vary in size and
amount depending
on model.
Angle lter toward rear of
hood opening above the
grease tunnel.
Slide forward and into the
recess towards front of hood
and above the light panel.
Lower lter while sliding back
until it rests onto Grease Tunnel.
VICTORY range hoods
| STAR
20
VICTORY range hoods
STAR |
21
INSTALLATION
(
Continued
)
