Victrola T1 - Cartridge Replacement

CARTRIDGE REPLACEMENT
SPECIFICATIONS
GENERAL
Power Requirements ................................................................................. AC 100-240V~50/60HZ
Power Consumption.................................................................................. 6 W
Dimensions (W x D x H) ............................................................................. 350mm x 420mm x 120mm (approx)
Weight ........................................................................................................ 4.81 kgs
RECORD PLAYER
Motor.......................................................................................................... DC servo motor
Drive System.............................................................................................. Belt Drive
Speeds ....................................................................................................... Off/33-1/3 rpm, 45 rpm
Cartridge Type ........................................................................................... Moving Magnetic Cartridge
Moving Magnetic Cartridge ...................................................................... Victrola VPC-190
BLUETOOTH
Bluetooth Version ...................................................................................... Bluetooth V5.0
Bluetooth Proles ...................................................................................... A2DP, AVRCP
Bluetooth Frequency range....................................................................... 2.402GHz-2.480GHz
Operating Distance ................................................................................... 10 meters (33 ft.)
REPLACEMENT CARTRIDGE:
VICTROLA VPC-190
The VPC-190 Cartridge is rated in
excess of 1000 hours of normal use.
As soon as you notice a change in
sound quality or damage to the stylus,
it is recommended that it be changed.
1. Unplug the unit and put the
needle cover on the old cartridge.
2. Carefully remove all the wire leads
from the back of the old cartridge.

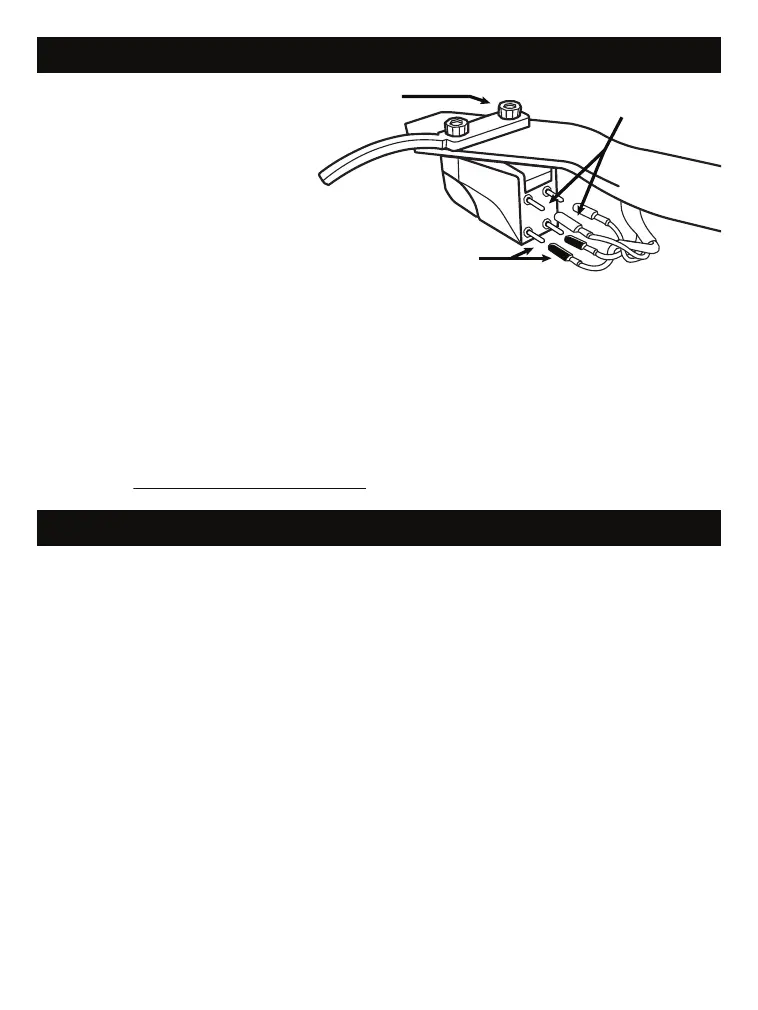

3. Loosen the 2 allen head screws with the included 2mm hex keys on the top of the
tone arm / cartridge. Remove old cartridge.
4. Mount the new cartridge, and adjust the position to ensure it will track parallel
to the record grooves and tighten the screws.
5.
Connect the wire leads to the new cartridge by pushing them rmly on to the connector pins .
WHITE Left channel positive (L+)
RED Right channel positive (R+)
BLACK Left and Right channel negative (L- & R-)
For best results, use a cartridge alignment protractor or download our Cartridge Alignment
Protractor at victrola.com/cartridgealignment
BLACK LEFT & RIGHT
CHANNEL –
WHITE LEFT CHANNEL
+
RED RIGHT CHANNEL
+
2MM
INCLUDED:
T1 Turntable & Dust Cover, 45 RPM Adapter, Silicone Slipmat, RCA Cable, Power Cable ,
Instruction Manual, Quick Setup Guide, 2mm/2.5mm hex key, Dust Cover Hinges
