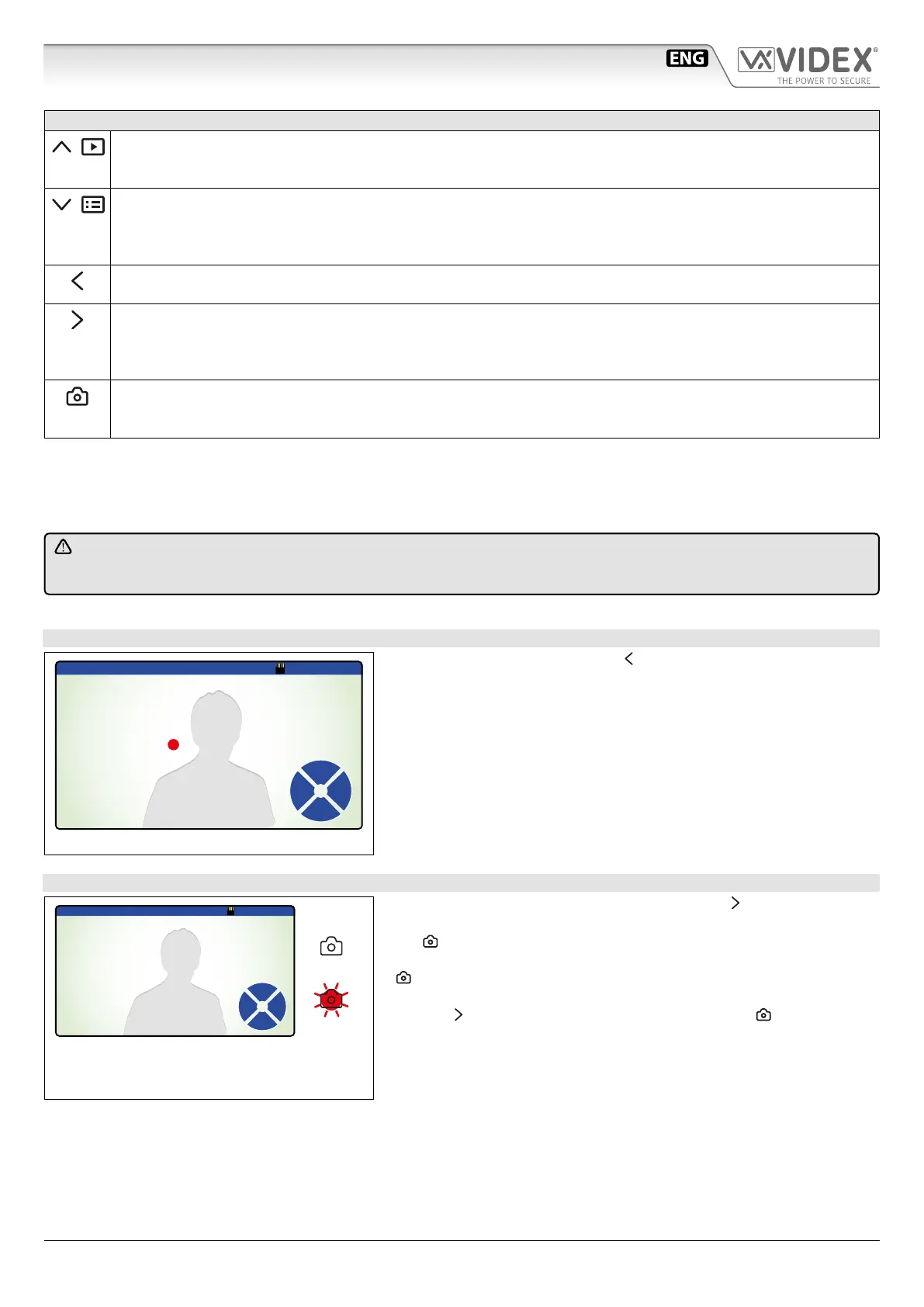

STANDARD FUNCTIONS
Browse function button.
Press to browse the recorded pictures or videoclips.
This function is also available when the device is in stand-by.
Menu button.
Press to enter in a menu with the option of either still pictures or videoclips, copy les from built-in memory to MicroSD
card and formatting it (if present), adjust the monitor brightness, contrast and colour, set the current date and time.
This function is also available when the unit is in stand-by.
Instantly record function button.
Press it to record a picture or videoclip of the currently shown video during a conversation or while the videophone is ringing.
Automatic recording function button.
Press it to enable the function (the relevant LED turns ON) or press it again (the relevant LED turns OFF) to disable the function.
When the function is enabled, the device records a picture or videoclip (depending on settings) for every call or camera
recall. This function is also available when the device is in stand-by.
Automatic recording function status LED.
If the LED is ON the function is enabled. When the LED ashes, it indicates that there is a new picture or videoclip re-
corded in the device memory.
The function of the buttons is contextual to the active menu, the LED shows the status of the automatic capture function (illumi-
nated = ON, not illuminated = OFF) and indicates new photos recorded when it ashes. The ashing for the new photos stops when
you browse the recorded photos and the LED reverts to showing the status of the automatic capture function.
NOTE: VIDEOCLIP RECORD FUNCTION IS AVAILABLE FOR 6700 SERIES VIDEOMONITORS ONLY AND ONLY IF YOU
INSERT A MICROSD CARD INTO THE DEVICE AND ENABLE THE FUNCTION. SEE “USING WITH A MICROSD CARD”
ON PAG. 8.
HOW TO RECORD A PICTURE OR VIDEOCLIP MANUALLY
During normal operation press the
(Photo) button to instantly take a pic-
ture or videoclip.
During the recording, the display shows the message “RECORD” in the mid-
dle of the screen (Fig. 5).
In case of videoclip recording the device show the duration of the recording
in the top right of the screen.
HOW TO ENABLE AUTOMATIC RECORDING
From the status shown in Fig. 6, press the button
(Auto) to enable the
automatic photo recording during call and camera recall.
The LED will turn ON to indicate that the function is enabled. If a new pic-
ture or videoclip is recorded by the automatic recording function, the LED
will ash and the message “New le” appears in the status bar.
The LED will ash until the videoclip or image is viewed.
Press the (Auto) button again to disable the function, the LED will turn OFF.
This button also works when the monitor is in stand-by.
2016-07-28 09:46:10
Memory
Menu
AutoPhoto
RECORD
07
Fig. 5
2016-07-28 09:46:10
Memory
Menu
AutoPhoto
New File
Fig. 6
