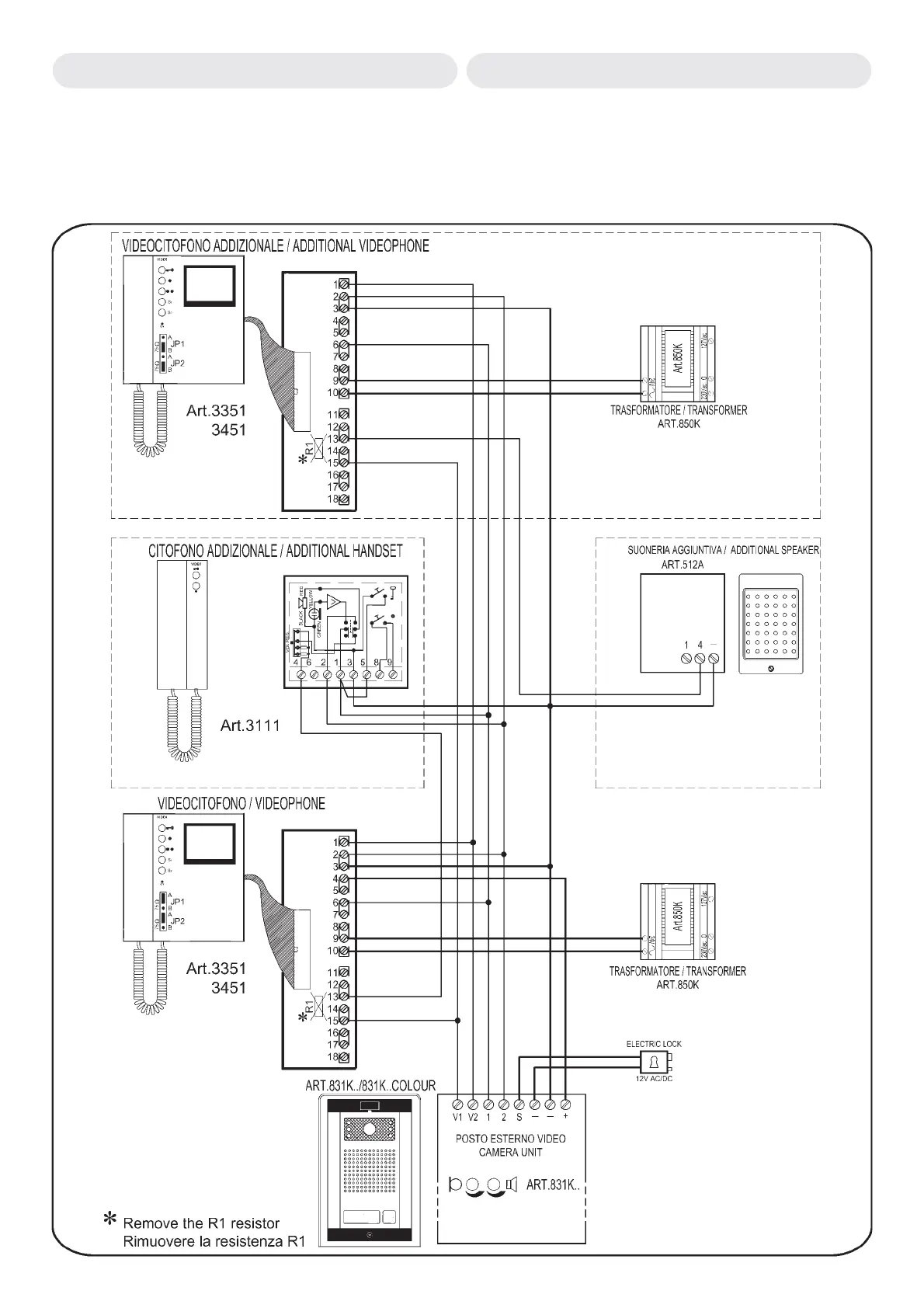

È possibile collegare altri videocitofoni in parallelo (Max 3) a quello in
dotazione, come mostrato dallo schema sottostante. Ciascun videocitofono
addizionale necessita di un trasformatore di alimentazioneArt.850K.
E’ possibile collegare un citofono Art. 3111 o un altoparlante
supplementareArt. 512A in parallelo a ciascun videocitofono.
L’impostazione standard per i jumper JP1 e JP2 è in posizione “B”: nel
caso di più videocitofoni collegati in parallelo, per ognuno di essi ad
eccezione dell’ultimo (normalmente quello più lontano), spostare i
due jumper in posizione “A” al fine di adattare l’impedenza del segnale
video.
Two more videophones can be connected in parallel (max 3) to the one
provided, by making the connections described; every additional
videophone needs a transformer Art.850K.
An intercom Art.3111 or an additional loudspeaker Art.512A can be
connected in parallel to every videophone.
The default position for the
videophone’s jumpers JP1 and JP2 is “B”: when you have more
videophones in a parallel connection (to adjust the impedance of the
video signal),for each one except the last (normally the farthest
connected), put the JP1 and JP2 jumpers in position .“A”
