Viessmann CS - Drill Template for Attachment of the Large Condenser Unit; Drill Template for Attachment of the Small Condenser Unit

GB
General notice (liability): the details of this technical documents serve for description. Consents regarding the availability of certain features or
regarding a certain purpose always require a special written agreement.
Page No. 12-GB 5.1.1 - 5.1.2 We reserve the right to make technical changes!

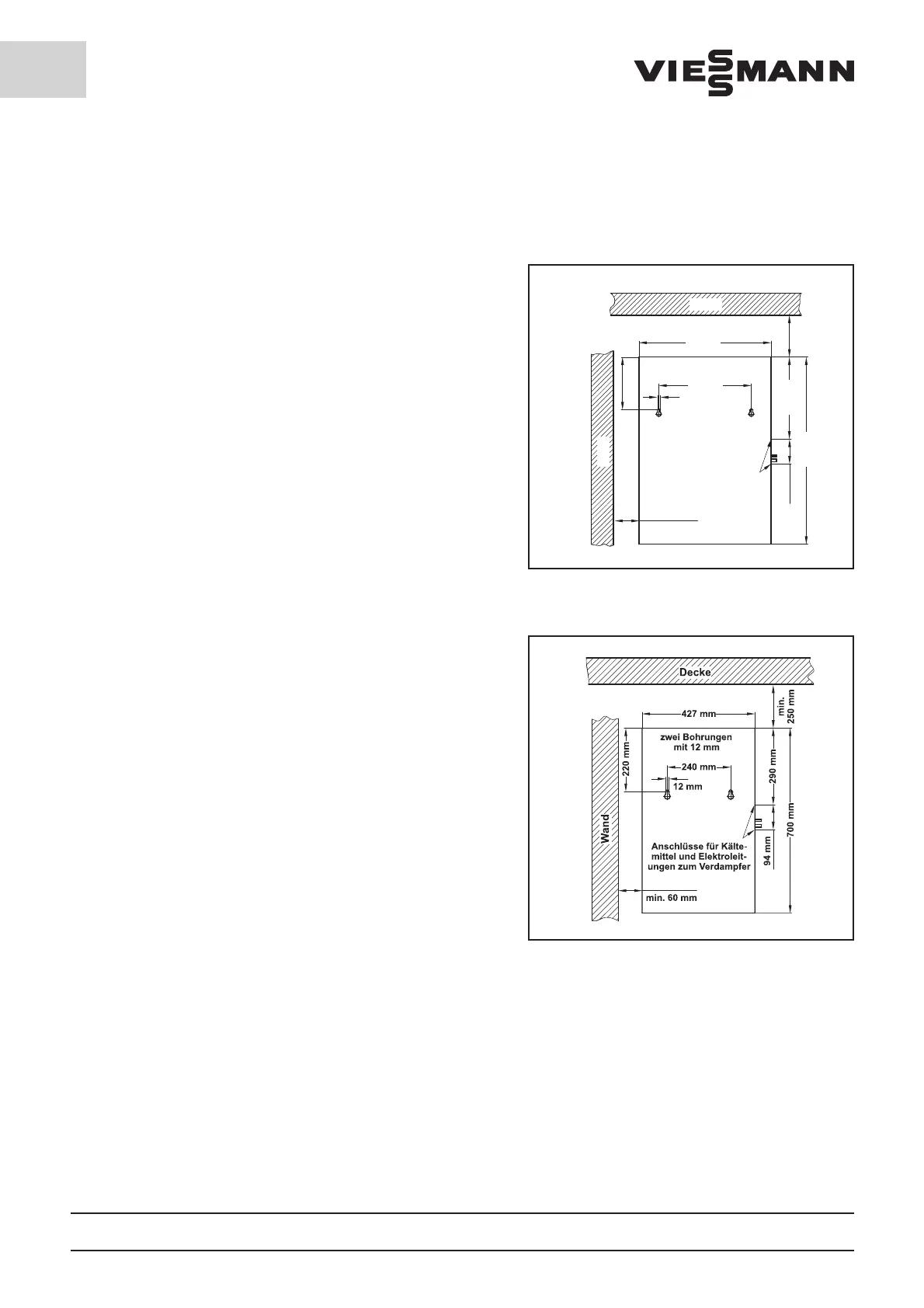

5.1.1 Drill template for attachment of the large condenser unit
(CS 2000; CS 2800; FS 1400; FS 1800; FS 2400)
Distance to wall - 60 mm.
5.1.2 Drill template for attachment of the small condenser unit
(CS 0900; CS 1300; FS 0900; FS 1200)
Distance to wall - 60 mm.
Anschlüsse für Kälte-
mittel und Elektro-
leitungen zum Verdampfer
Wand
Decke
min. 60 mm
zwei Bohrungen
mit 12 mm
12 mm
min.
250 mm
94 mm
420 mm
240 mm
600 mm
390 mm
850 mm
