9. Drawings
Page No. 30-GB 9 - 9.1 We reserve the right to make technical changes!

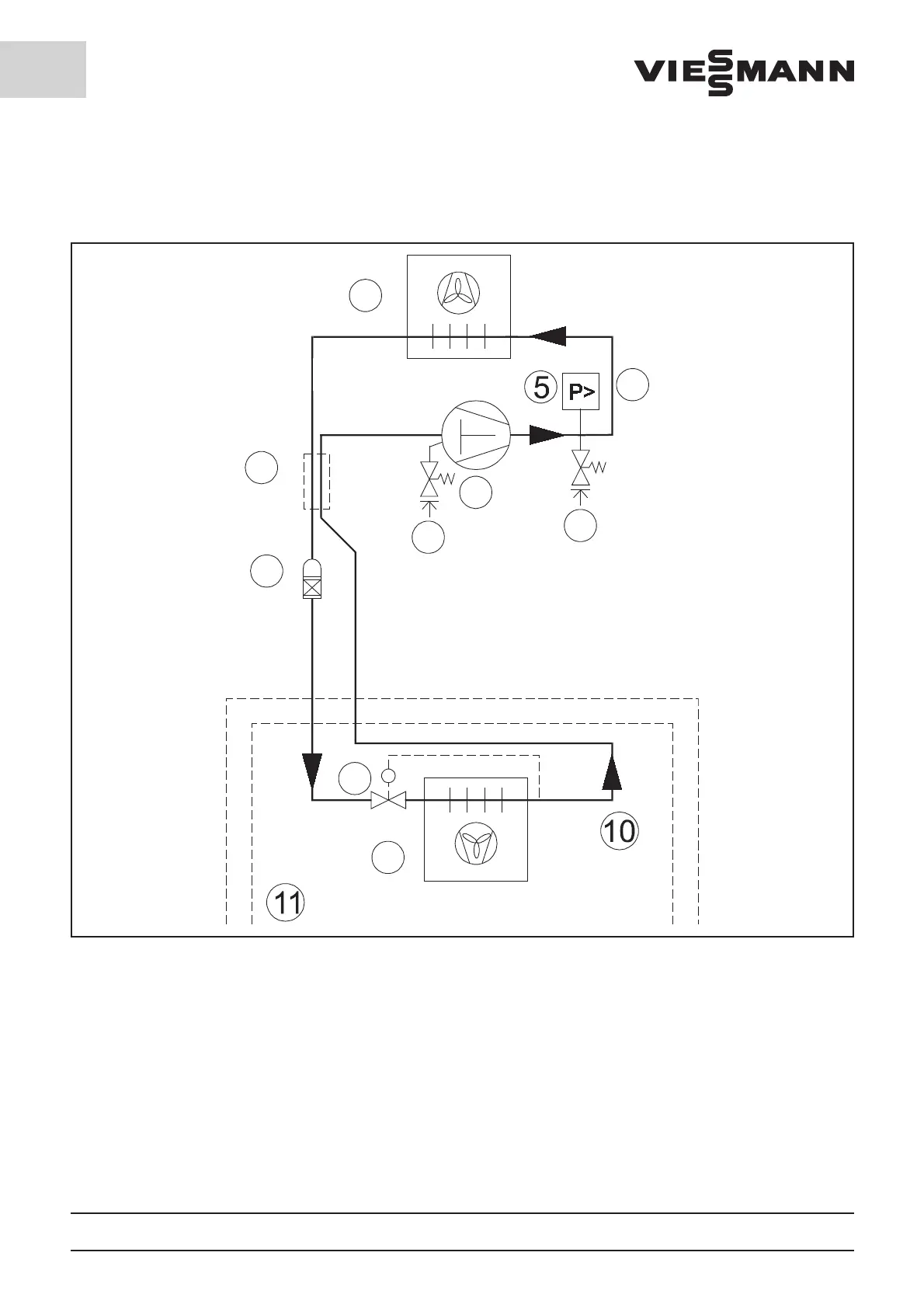

9.1 Refrigeration circulation schematic
1
2
6
7
8
9
3
3
4
1 Compressor
2 Pressure line
3 Schrader test connections
4 Air cooled condenser
5 High-pressure switch
6 Heat exchanger
7 Collector/Dryer
8 Thermal expansion valve
9 Evaporator
10 Suction line
11 Coldroom
