Page No. 13-GB 5.2 - 5.2.2 We reserve the right to make technical changes!

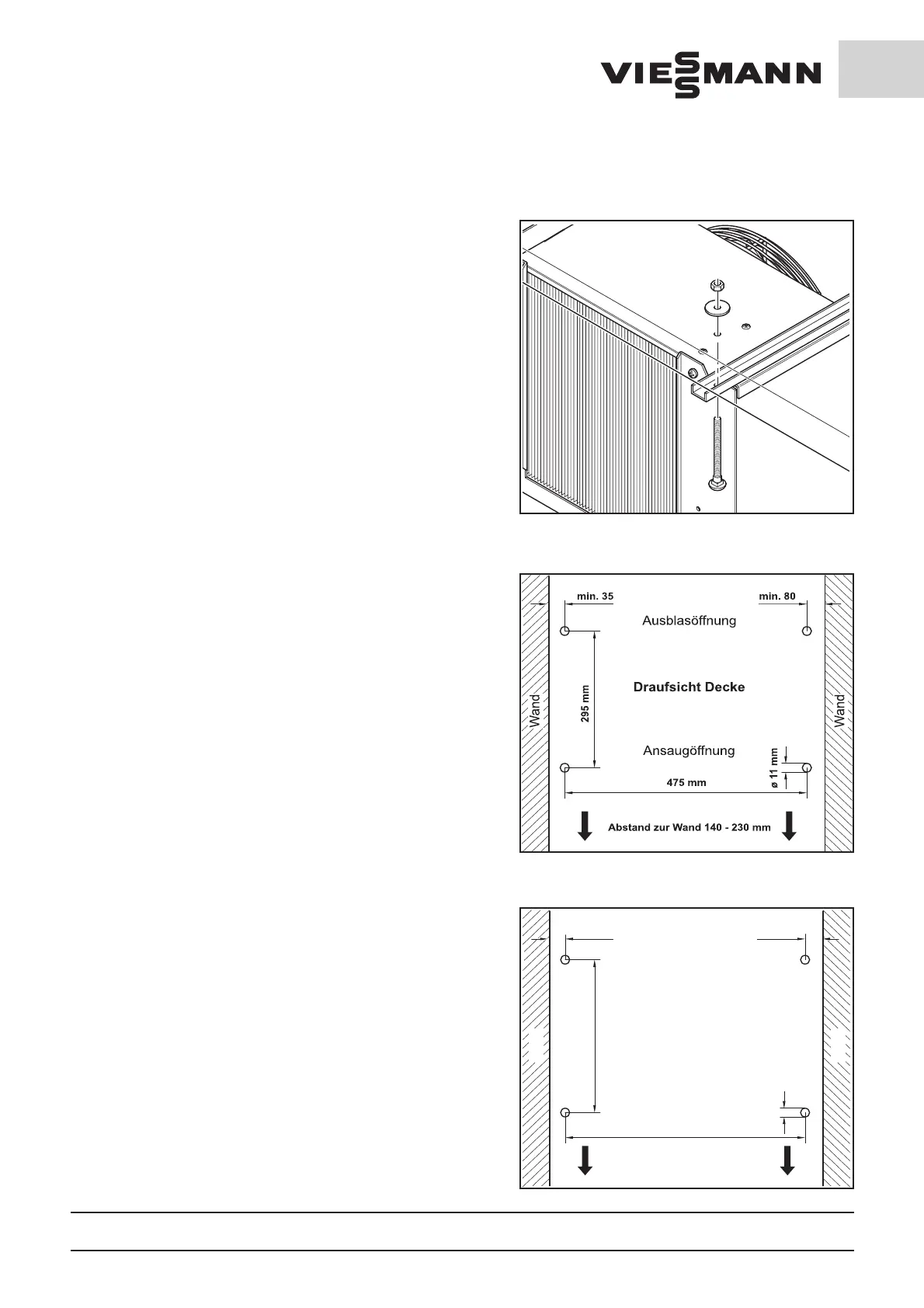

5.2 Installation of the evaporator unit
The evaporator unit is mounted to the ceiling on the inside of the
cold storage cell.
Four bore holes should be made in the cell ceiling according to
dimensional drawings 2.2.1 and 2.2.2.
Protect the cutting edges against rust.
Attach the evaporator unit to the U-profile on the cell ceiling with
the enclosed plastic locking screws.
5.2.1 Drill template for attachment of the large evaporator unit
(CS 2000; CS 2800; FS 1400; FS 1800; FS 2400)
Distance to wall 140 mm with a wall thickness of 150 mm. Distance
to wall 230 mm with a wall thickness of 60 mm.
5.2.2 Drill template for attachment of the small evaporator unit
(CS 0900; CS 1300; FS 0900; FS 1200)
Distance to wall 165 mm with a wall thickness of 150 mm.
Distance to wall 255 mm with a wall thickness of 60 mm.
